Herning Bollard & Pole

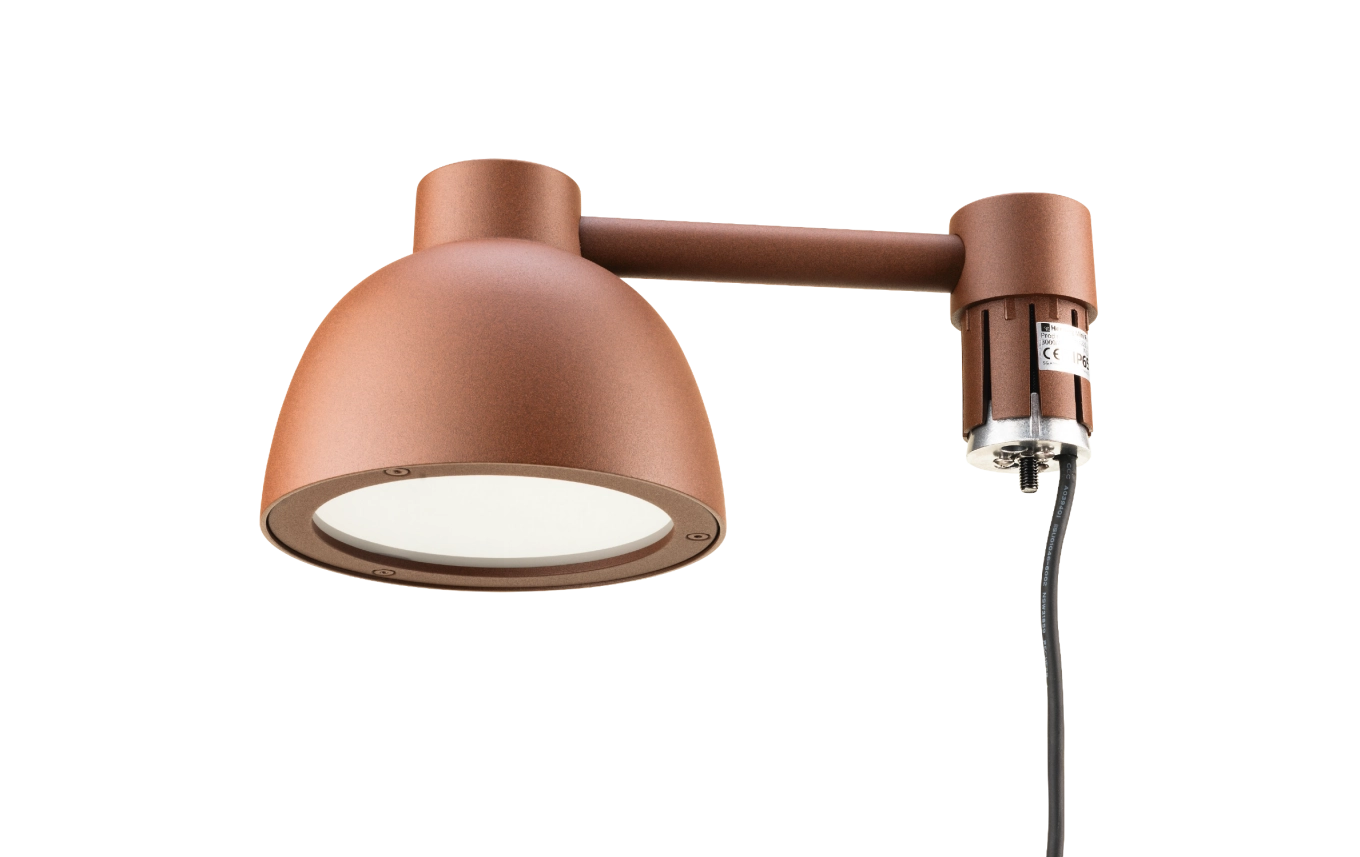

Herning Poolhoofd Ø60 Corten Mini 580/620/1220/1300lm 3000/4000K Ra>80 Fase afsnijding
- SG artikelcode
- 623982
- EAN
- 7021986239829
Overview
- Wattage
- 8W/17W
- Armatuur efficiëntie LED
- 73/78/72/76lm/W
- Lumen
- 580/620/1220/1300lm
- IP Klasse
- IP65
- Kleur temperatuur
- 3000/4000K
- Kleurweergave (CRI)
- Ra>80
- Levensduur
- 50,000 L80/B20>
- Montage
- Paal, wand, sokkel of aardstaaf, Buiten
Tools
Downloads
Specificatieblad
623982
pdf
(Opent in nieuw tabblad)
Montage-instructie
Herning Bollard and Pole_User Manual
pdf
(Opent in nieuw tabblad)
EPD
NEPD-8533-8203_Herning-Mini-Polehead
pdf
(Opent in nieuw tabblad)
CE-verklaring
CE-UKCA260218A_Herning Bollard
pdf
(Opent in nieuw tabblad)
Revit file - Generic
Herning Bollard Mini 0,9m - generic
rfa
Revit file - Face Based
Herning Bollard Mini 0,9m - face based
rfa
Elektrisch
- Wattage
- 8W/17W
- Spanning
- 220-240V
- Frequentie (Hz)
- 50/60Hz
- Max. armaturen per stroomonderbreker
- B10: 30, B16: 47, C10: 50, C16: 80
Lichttechniek
- Soort lichtbron
- LED
- Luminous flux
- 580/620/1220/1300lm
- Armatuur efficiëntie LED
- 73/78/72/76lm/W
- Kleur temperatuur
- 3000/4000K
- Kleurweergave (CRI)
- Ra>80
- MacAdams factor
- SDCM: 3
- Levensduur
- L80/B20>50,000

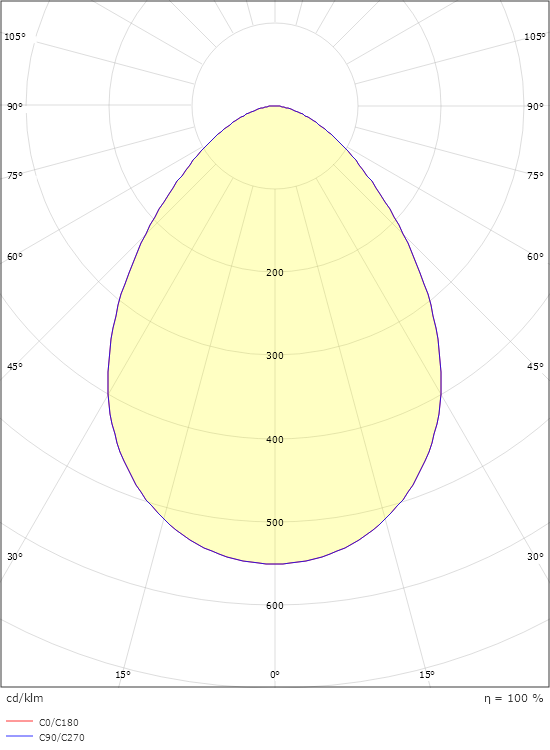

- Lichtverdeling
- Direct
- Optiek
- Glas

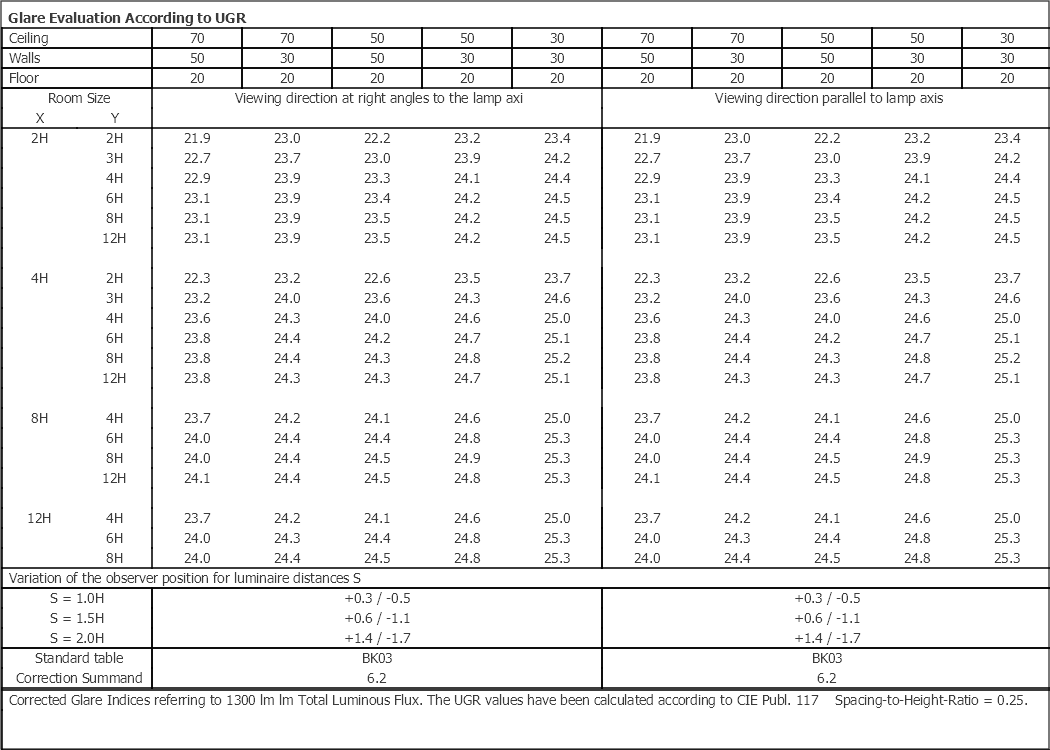

- UGR
- UGR<22/25
- Fotobiologische veiligheid
- RG 1
- ULOR (<1%)
- Ja
Controle/dimmen
- Type
- Fase afsnijding
Bescherming
- Isolatieklasse
- Klasse II
- IK Klasse
- IK06
- IP Klasse
- IP65
Materiaal en afwerking
- Behuizing
- Aluminium
Montage/Aansluiting
- Montage
- Paal, wand, sokkel of aardstaaf, Buiten
- Model
- Ø60
- Kabel
- Kabel 2x1mm² 3m
Afmetingen
- Lengte (mm) L
- 342
- Breedte (mm) W
- 182
- Hoogte (mm) H
- 144
- Gewicht (kg) bruto/netto
- 2.55 / 2.02
Verpakking
- Packaging dimensions (mm)
- 340 x 190 x 200
