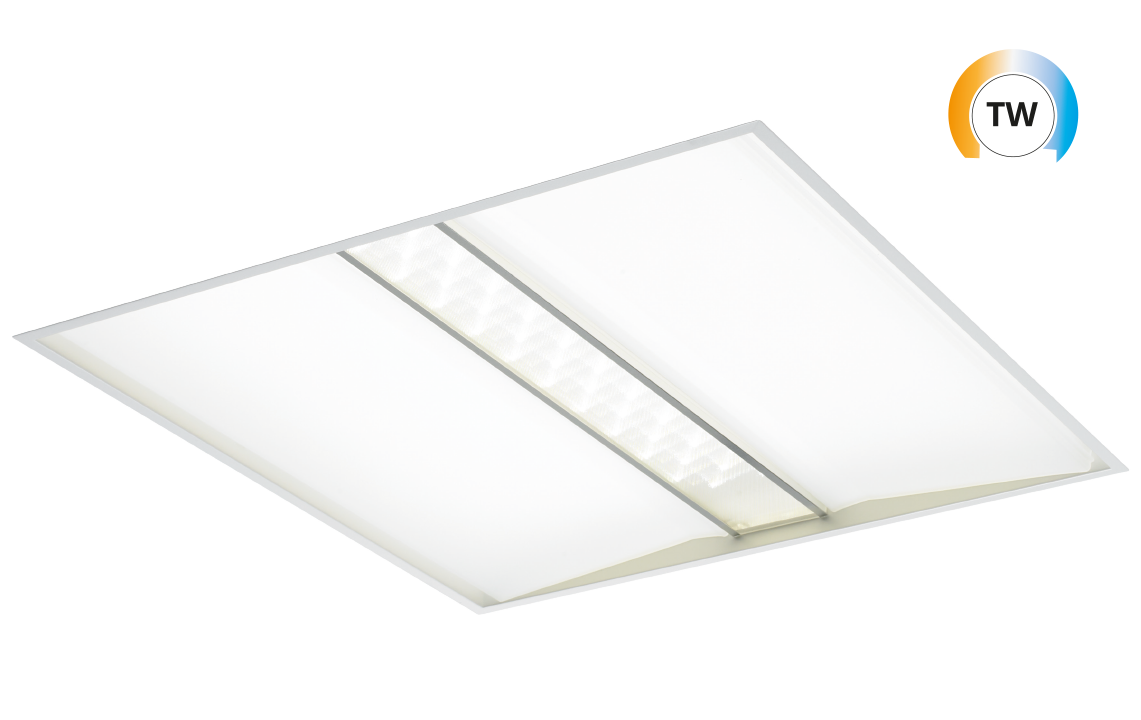

Illusion LED TW
Illusion LED TW 600x600 White 3910lm 2700-6500K Ra>80 Tunable White DALI Type 8
Article code:
8246091972
EAN:
5703821174336
= This article is produced by order, with an expected delivery time of 3-4 weeks
Download
Electrical
System wattage:
36W
Voltage:
220-240V
Max. luminaires per circuit breaker:
B10: 11, B16: 17, C10: 18, C16: 29
Light technic
Type of light source:
LED
Luminous flux:
3910lm
Efficacy:
109 lm/W
Colour temperature:
2700-6500K
Colour rendering (CRI):
Ra>80
MacAdams factor:
SDCM: 3
Lifetime:
L90/B10>50,000

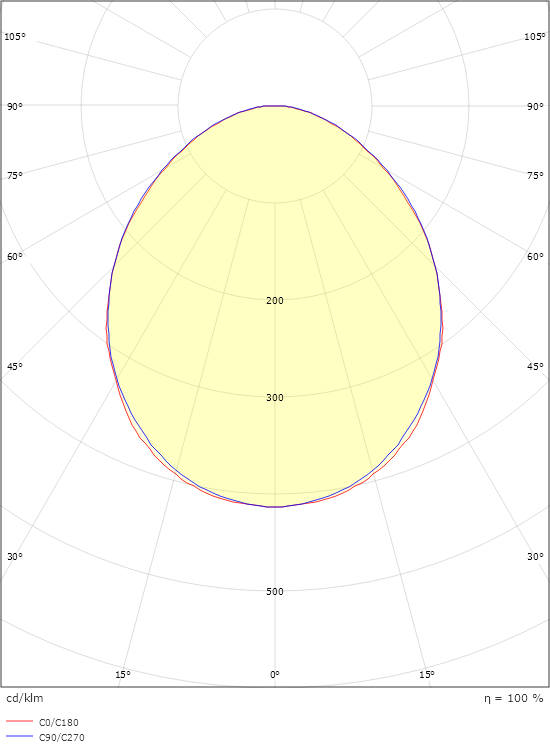

Light distribution:
Direct
Optic:
Opalprism
Control/Dimming
Type:
Tunable White DALI Type 8
Protection
Luminaire class:
Class I
IP Class:
IP20
Energy and approvals
Contains light source of energy class:
D
Breeam:
Fulfils Hea 01 for flicker free lighting
Materials and finish
Housing:
Sheet steel
Colour:
White (Pure white, 25% gloss)
Optics:
Acrylic (PMMA)
Mounting/Connection
Mounting:
Recessed, Indoor
Module:
600x600 Clip-in
Connection:
5 pol Winsta

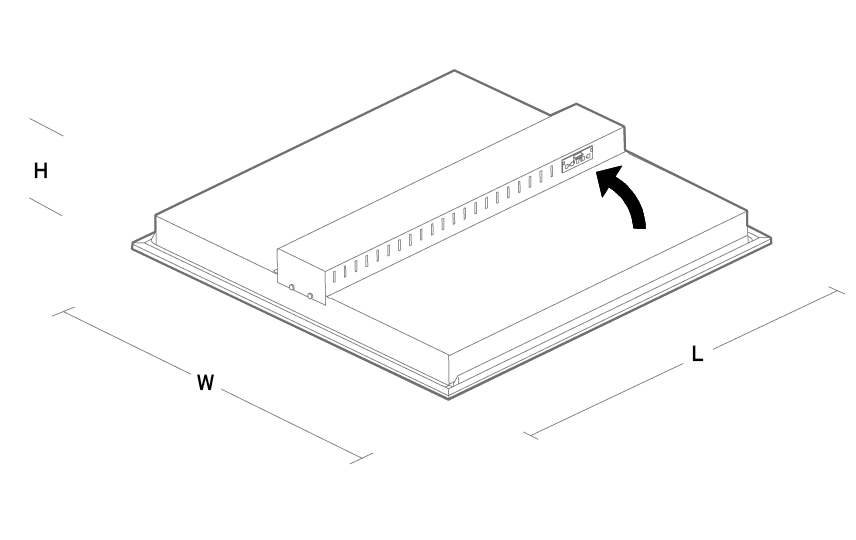

Dimensions
Length (mm) L:
599
Width (mm) W:
599
Height (mm) H:
126
Weight (kg) gross/net:
6.6 / 6.4
Packaging
Packing dimensions (mm):
635 x 625 x 125
