Comfort

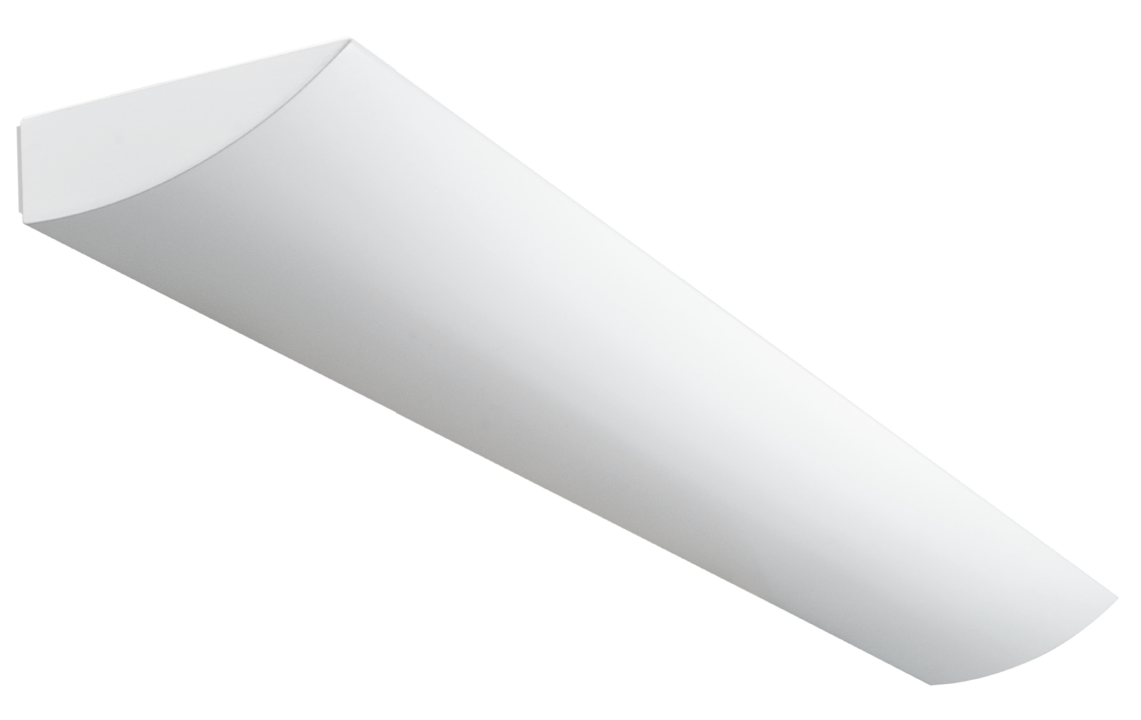

Comfort LED White 3330lm 3000K Ra>80 DALI-2 / Push Dim
- SG code
- 8246094238
- EAN
- 5703821177078
Overview
- Efficacy
- 145 lm/W
- Lumen
- 3330lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B10>
- Mounting
- Surface, Indoor
Tools
Downloads
Specification sheet
8246094238
pdf
(Opens in new tab)
Mounting instruction
Comfort LED_User Manual
pdf
(Opens in new tab)
EPD
NEPD-5034-4373_Comfort-LED
pdf
(Opens in new tab)
CE Declaration
Comfort LED
pdf
(Opens in new tab)
Relux file (rolf)
5703821177078_Comfort_LED_White_3330lm_3000K_Ra_80_DALI___Push_Dim
rolf
Eulumdat file (ldt)
5703821177078_Comfort LED White 3330lm 3000K Ra80 DALI Push Dim
ldt
Dialux file (uld)
5703821177078_Comfort LED White 3330lm 3000K Ra80 DALI Push Dim
uld
Revit file - Generic
Comfort LED - generic
rfa
Revit file - Face Based
Comfort LED- face based
rfa
Electrical
- System wattage
- 23W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 13, B16: 20, C10: 21, C16: 34
- Leakage current (mA)
- 0,07

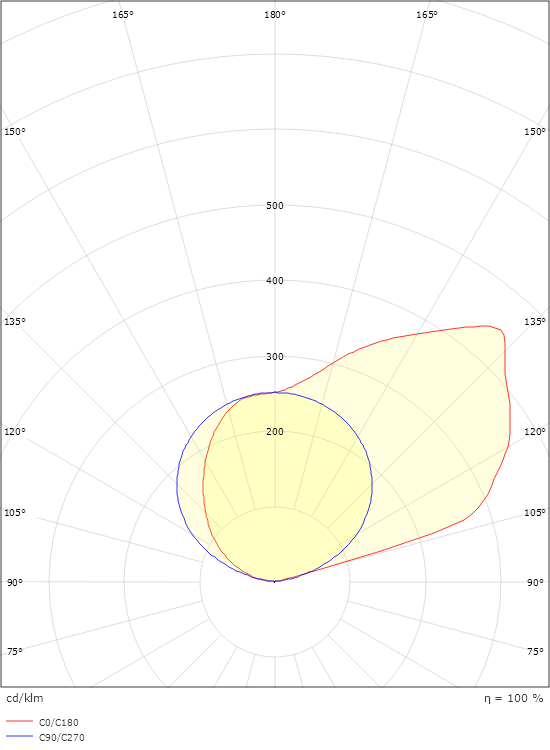

Light technic
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 3330lm
- Efficacy
- 145 lm/W
- Constant lumen output option
- Yes
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B10>50,000
- Minimum ambient temperature
- -25°C
- Optic
- Glass Clear
- Visible flicker (PstLM)
- 0,02
- Stroboscopic flicker (SVM)
- 0
Control/Dimming
- Type
- DALI-2 / Push Dim
Protection
- Luminaire class
- Class I
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel
- Colour
- White (Pure white, 25% gloss)
- Optics
- Tempered glass
Mounting/Connection
- Mounting
- Surface, Indoor
- Connection
- Screwless terminal block

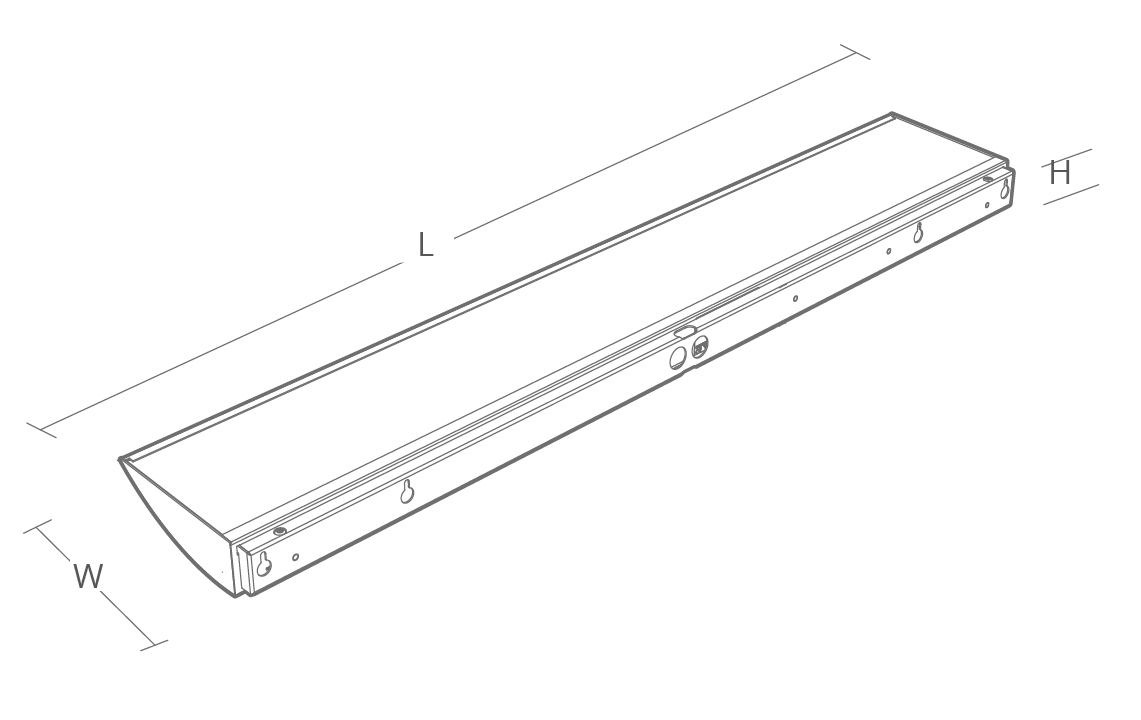

Dimensions
- Length (mm) L
- 895
- Width (mm) W
- 158
- Height (mm) H
- 45
- Weight (kg) gross/net
- 4.2 / 4
Packaging
- Packaging dimensions (mm)
- 45 x 158 x 895
