Sector Pro DALI

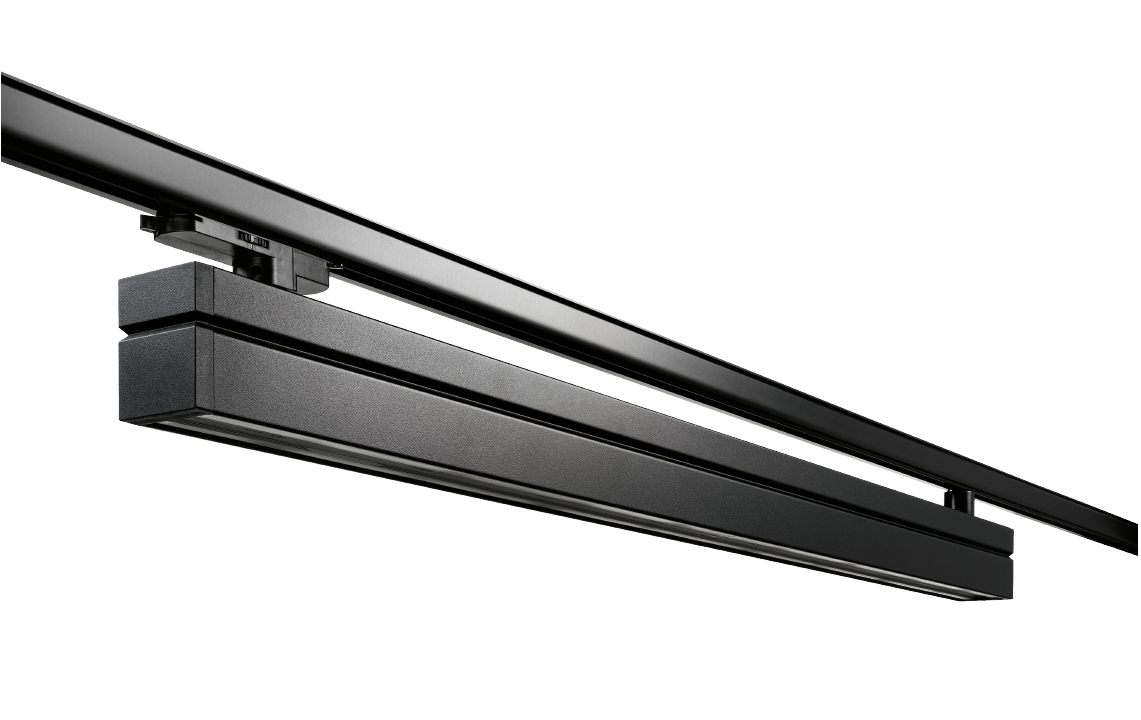

Sector Pro 3-Circuit Black 10880lm 4000K Ra>80 DALI-2

SG code
8246096427
EAN
5703821181884
Back to articlelist

Overview

Efficacy
155 lm/W
Lumen
10880lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246096427 Mounting instruction Sector Pro 3T DALI_User manual EPD NEPD-4989-4332_Sector-Pro CE Declaration Sector Pro Relux file (rolf) 5703821181884_Sector_Pro_3-Circuit_Black_10880lm_4000K_Ra_80_DALI Eulumdat file (ldt) 5703821181884_Sector Pro 3-Circuit Black 10880lm 4000K Ra80 DALI Dialux file (uld) 5703821181884_Sector Pro 3-Circuit Black 10880lm 4000K Ra80 DALI Revit file - Generic Sector Pro - generic Revit file - Face Based Sector Pro - face based

How to specify

Text copied to clipboard

Sector Pro 3-Circuit Black 10880lm 4000K Ra>80 DALI-2, Article code: 8246096427, EAN: 5703821181884, IP20, Electrical: System wattage: 70W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 15, B16: 24, C10: 25, C16: 41, Leakage current (mA): 0.39, Light technic: Type of light source: LED, Luminous flux: 10880lm, Efficacy: 155 lm/W, Constant lumen output option: Yes, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Lens, UGR: UGR>28, Visible flicker (PstLM): 0, Stroboscopic flicker (SVM): 0.01, Photobiological safety: RG 1, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: B, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, end caps in ABS, Colour: Black, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: ShopLine DALI track (adapter included), Dimensions: Length (mm) L: 1156, Width (mm) W: 64, Height (mm) H: 145, Weight (kg) gross/net: 4.3 / 4, Packaging: Packaging dimensions (mm): 1218 x 157 x 71

Electrical

System wattage
70W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 15, B16: 24, C10: 25, C16: 41
Leakage current (mA)
0.39

Light technic

Type of light source
LED
Luminous flux
10880lm
Efficacy
155 lm/W
Constant lumen output option
Yes
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000

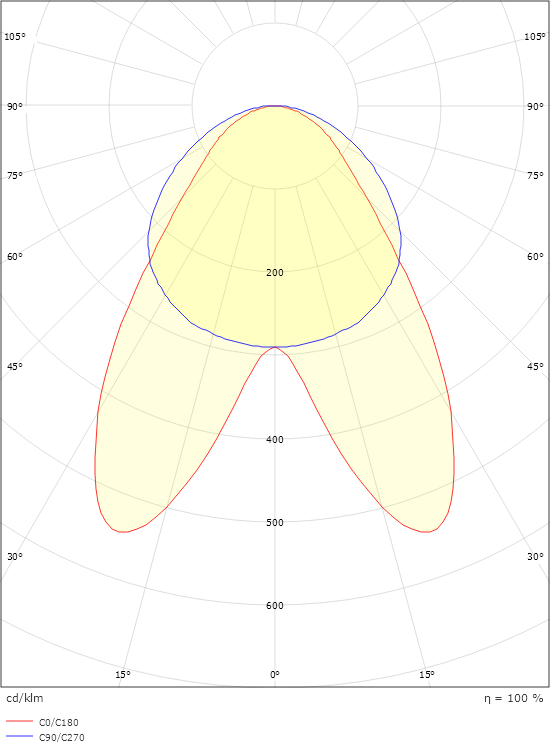

Light distribution
Direct
Optic
Lens

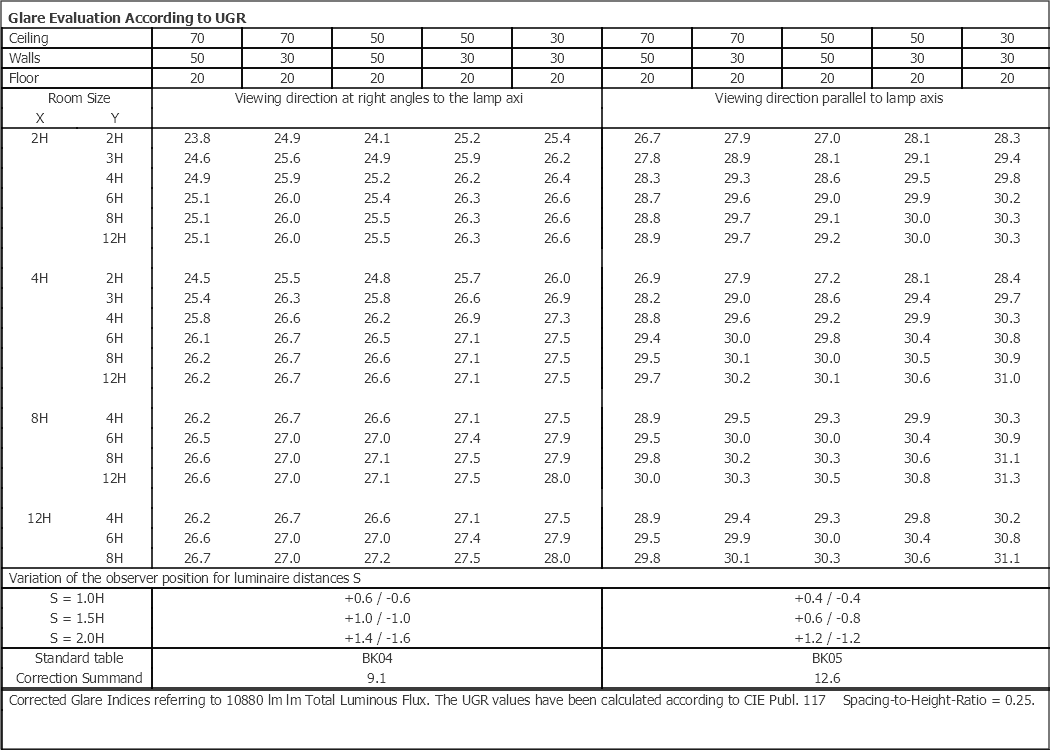

UGR
UGR>28
Visible flicker (PstLM)
0
Stroboscopic flicker (SVM)
0.01
Photobiological safety
RG 1

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
B
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel, end caps in ABS
Colour
Black
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
ShopLine DALI track (adapter included)

Dimensions

Length (mm) L
1156
Width (mm) W
64
Height (mm) H
145
Weight (kg) gross/net
4.3 / 4

Packaging

Packaging dimensions (mm)
1218 x 157 x 71
