Lineal 80 Suspended

Lineal 80 1120 Black D/I 3850/4010lm 3000/4000K Ra>80 DALI-2

SG code
320921
EAN
7021983209214
Back to articlelist

Overview

Efficacy
148 lm/W
Lumen
3850/4010lm
IP Class
IP20
Colour temperature
3000/4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L90/B10>
Mounting
Suspended, Indoor
    5 years Warranty
  • indoor
  • el
  • flickerfree
  • cctsw
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 320921 Mounting instruction 251009_Lineal 80 Suspended_User Manual CE Declaration CE-UKCA251006A_Lineal 80 Relux file (rolf) 7021983209214_Lineal_80_1120_Black_DI_3850lm_3000K_Ra80_DALI-2 Relux file (rolf) 7021983209214_Lineal_80_1120_Black_DI_4010lm_4000K_Ra80_DALI-2 Eulumdat file (ldt) 7021983209214_Lineal 80 1120 Black DI 3850lm 3000K Ra80 DALI-2 Eulumdat file (ldt) 7021983209214_Lineal 80 1120 Black DI 4010lm 4000K Ra80 DALI-2 Dialux file (uld) 7021983209214_Lineal 80 1120 Black DI 4010lm 4000K Ra80 DALI-2 Dialux file (uld) 7021983209214_Lineal 80 1120 Black DI 3850lm 3000K Ra80 DALI-2

How to specify

Text copied to clipboard

Lineal 80 1120 Black D/I 3850/4010lm 3000/4000K Ra>80 DALI-2, Article code: 320921, EAN: 7021983209214, IP20, Electrical: System wattage: 26W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Leakage current (mA): 0,08, Light technic: Type of light source: LED, Luminous flux: 3850/4010lm, Efficacy: 148 lm/W, Constant lumen output option: Yes, Colour temperature: 3000/4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>100,000, Lifetime: L93/>50,000, Light distribution: Direct/Indirect 40/60%, UGR: UGR<16, Visible flicker (PstLM): 0,03, Stroboscopic flicker (SVM): 0, Photobiological safety: RG 0, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: B, Materials and finish: Housing: Aluminium, Mounting/Connection: Mounting: Suspended, Indoor, Module: 1120, Wire set: 1x2m wire kit w/ceiling bracket, Connection: 2+3 -pole with 5x1,5mm² through wiring, Dimensions: Length (mm) L: 1120, Width (mm) W: 78, Height (mm) H: 78, Weight (kg) gross/net: 3.3 / 3, Packaging: Packaging dimensions (mm): 1190 x 100 x 100

Electrical

System wattage
26W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85
Leakage current (mA)
0,08

Light technic

Type of light source
LED
Luminous flux
3850/4010lm
Efficacy
148 lm/W
Constant lumen output option
Yes
Colour temperature
3000/4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B10>100,000
Lifetime
L93/>50,000

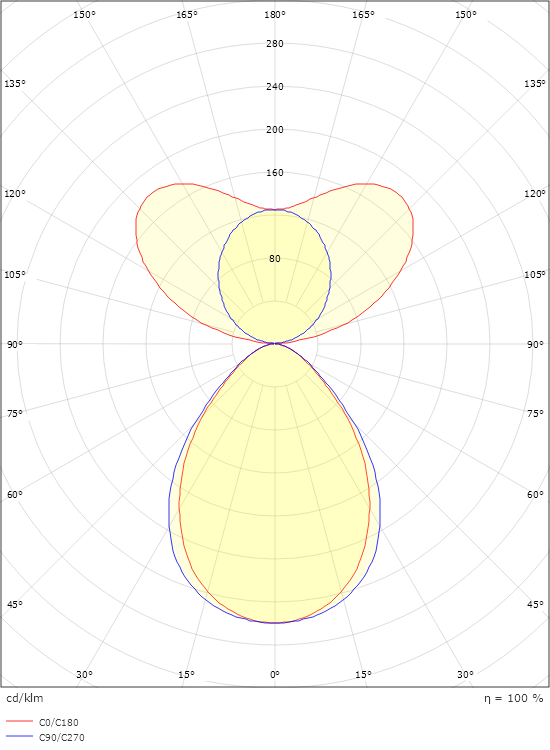

Light distribution
Direct/Indirect 40/60%

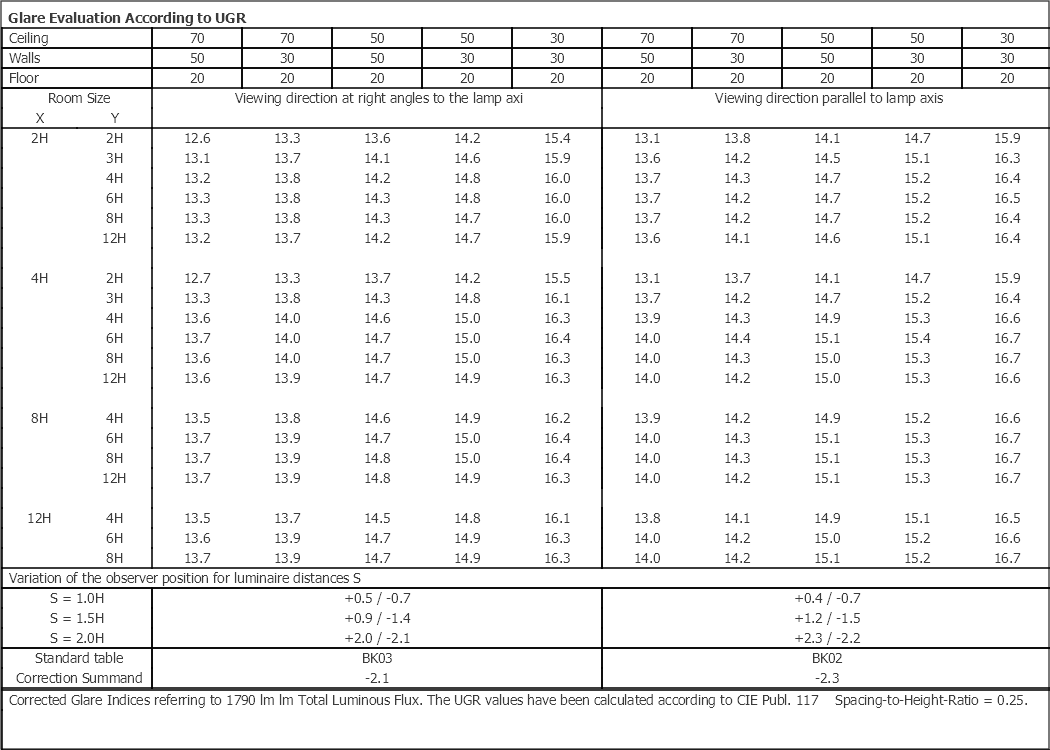

UGR
UGR<16
Visible flicker (PstLM)
0,03
Stroboscopic flicker (SVM)
0
Photobiological safety
RG 0

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
B

Materials and finish

Housing
Aluminium

Mounting/Connection

Mounting
Suspended, Indoor
Module
1120
Wire set
1x2m wire kit w/ceiling bracket
Connection
2+3 -pole with 5x1,5mm² through wiring

Dimensions

Length (mm) L
1120
Width (mm) W
78
Height (mm) H
78
Weight (kg) gross/net
3.3 / 3

Packaging

Packaging dimensions (mm)
1190 x 100 x 100
