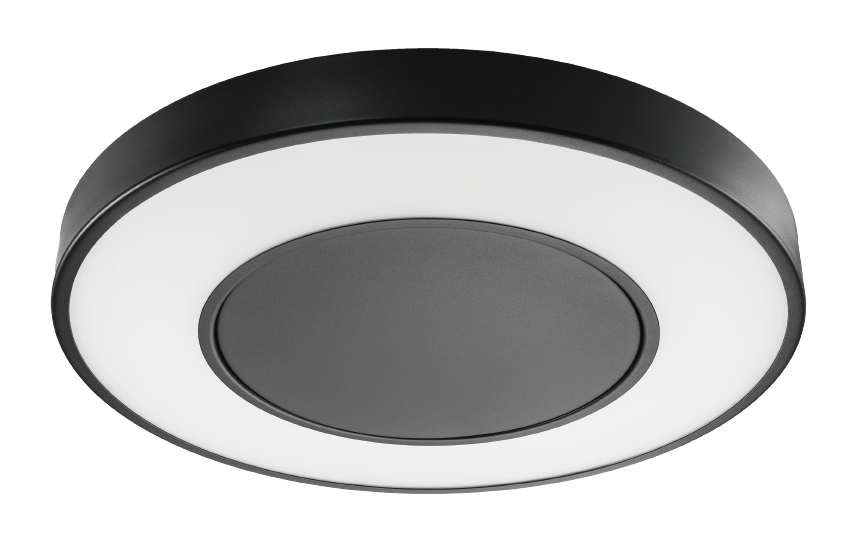

Circulus Maxi

Circulus Maxi Black 3210lm 4000K Ra>80 Trailing edge

Article code
214012
EAN
7021982140129
Back to articlelist

Overview

Efficacy
107 lm/W
Lumen
3210lm
IP Class
IP21
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ik05
  • ip21
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 214012 Mounting instruction Circulus Maxi_User Manual CE Declaration Circulus Maxi Relux file (rolf) 7021982140129_Circulus_Maxi_Black_3210lm_4000K_Ra_80_Trailing_edge_dimming Eulumdat file (ldt) 7021982140129_Circulus Maxi Black 30W LED 4000K Ra80-45077 Dialux file (uld) 7021982140129_Circulus Maxi Black 30W LED 4000K Ra80 Revit file - Generic Circulus Maxi - generic Revit file - Face Based Circulus Maxi - face based

How to specify

Text copied to clipboard

Circulus Maxi Black 3210lm 4000K Ra>80 Trailing edge, Article code: 214012, EAN: 7021982140129, IP21, IK05, Electrical: System wattage: 30W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 25, B16: 41, C10: 25, C16: 41, Light technic: Type of light source: LED, Luminous flux: 3210lm, Efficacy: 107 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B10>100,000, Light distribution: Direct, Optic: Opal, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK05, IP Class: IP21, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Steel, Colour: Black (RAL 9004), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 55, Diameter (mm) D: 550, Weight (kg) gross/net: 4.601 / 4.011, Packaging: Packaging dimensions (mm): 560 x 560 x 65

Electrical

System wattage
30W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 25, B16: 41, C10: 25, C16: 41

Light technic

Type of light source
LED
Luminous flux
3210lm
Efficacy
107 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B10>100,000

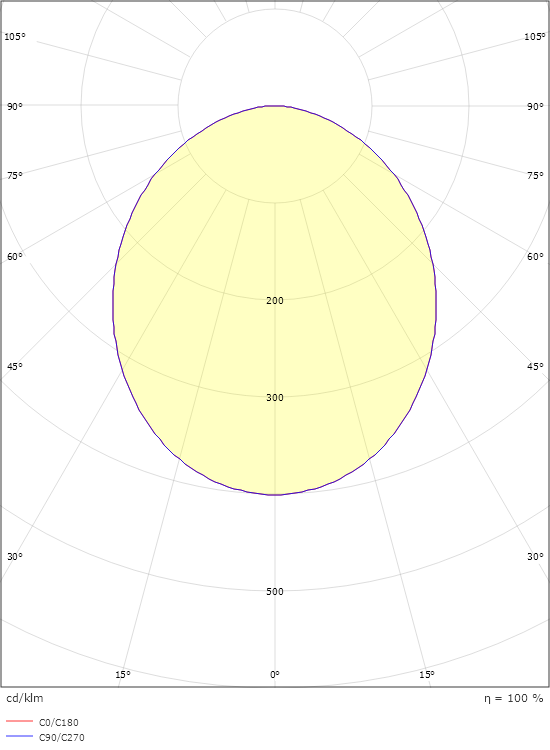

Light distribution
Direct
Optic
Opal

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK05
IP Class
IP21

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Steel
Colour
Black (RAL 9004)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
55
Diameter (mm) D
550
Weight (kg) gross/net
4.601 / 4.011

Packaging

Packaging dimensions (mm)
560 x 560 x 65
