Econ Midi 2000

Econ Midi 2000 White 2030lm 3000K Ra>80 Sensor Dim Emergency

Article code
143085
EAN
7021981430856
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
127 lm/W
Lumen
2030lm
IP Class
IP44
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B10>
Mounting
Surface, Indoor
    5 years, Battery: 3 years Battery 5 years, Battery: 3 years Warranty
  • indoor
  • ik10
  • ip44
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 143085 Mounting instruction Econ Midi 2000 Sensor Dim Emergency_User Manual CE Declaration Enok Midi 2000 Relux file (rolf) 7021981430856_Econ_Midi_2000_White_2030lm_3000K_Ra_80_Sensor_Dim_Emergency Eulumdat file (ldt) 7021981430856_Econ Midi 2000 White 2030lm 3000K Ra80 Sensor Dim Emergency Dialux file (uld) 7021981430856_Econ Midi 2000 White 2030lm 3000K Ra80 Sensor Dim Emergency Revit file - Generic Econ Midi 2000 - generic Revit file - Face Based Econ Midi 2000 - face based

How to specify

Text copied to clipboard

Econ Midi 2000 White 2030lm 3000K Ra>80 Sensor Dim Emergency, Article code: 143085, EAN: 7021981430856, IP44, IK10, Electrical: System wattage: 16W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 44, B16: 71, C10: 44, C16: 71, Light technic: Type of light source: LED, Luminous flux: 2030lm, Efficacy: 127 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B10>100,000, Lifetime: L80/B10>60,000, Minimum ambient temperature: 0°C, Light distribution: Direct, Optic: Opal, Beam angle: 120°, Control/Dimming: Type: Sensor Dim Emergency, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP44, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 98, Diameter (mm) D: 350, Weight (kg) gross/net: 2.072 / 1.872, Packaging: Packaging dimensions (mm): 360 x 360 x 100

Electrical

System wattage
16W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 44, B16: 71, C10: 44, C16: 71

Light technic

Type of light source
LED
Luminous flux
2030lm
Efficacy
127 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B10>100,000
Lifetime
L80/B10>60,000
Minimum ambient temperature
0°C

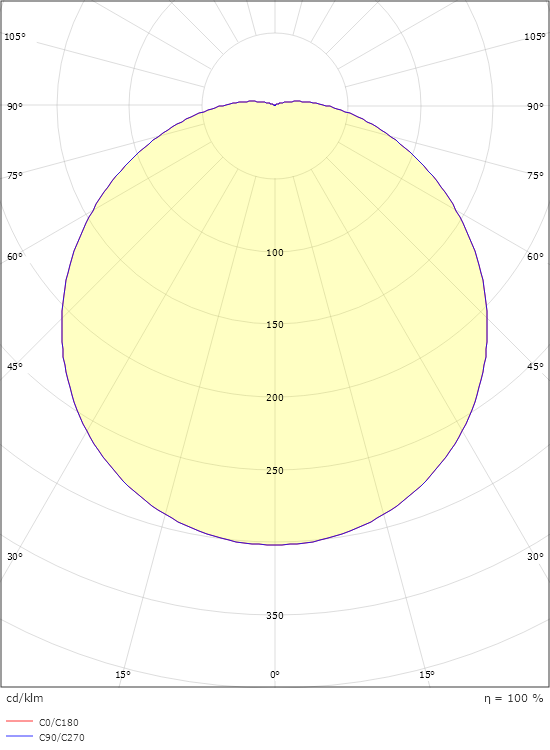

Light distribution
Direct
Optic
Opal
Beam angle
120°

Control/Dimming

Type
Sensor Dim Emergency

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP44

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
98
Diameter (mm) D
350
Weight (kg) gross/net
2.072 / 1.872

Packaging

Packaging dimensions (mm)
360 x 360 x 100
