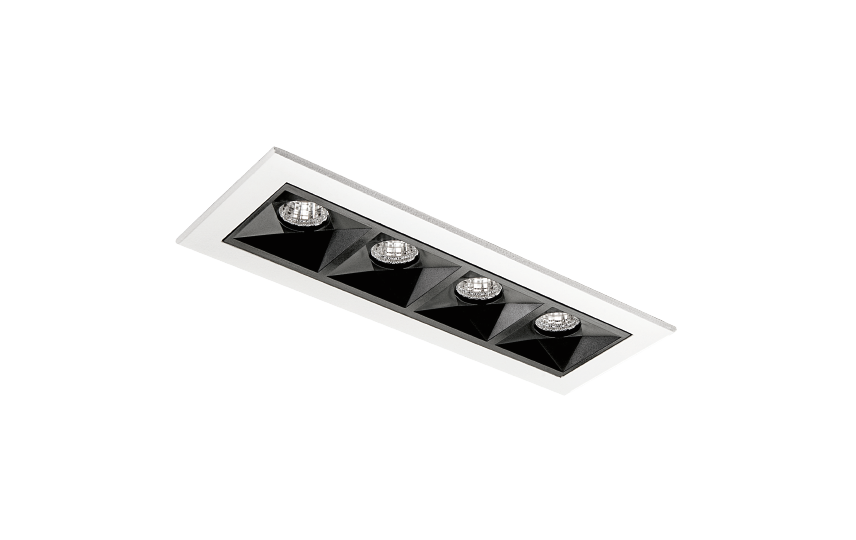

Inspire R

Inspire R White 150 490lm 4000K Ra 98 DALI-2 / Push Dim

Article code
212420
EAN
7021982124204
Back to articlelist

Overview

Efficacy
61 lm/W
Lumen
490lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra 98
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • el
  • isosafe
  • dipswitch
  • flickerfree
  • ip20
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 212420 Revit file - Generic Inspire R 150 - generic Mounting instruction Inspire R150 Dali_User Manual

See more

Eulumdat file (ldt) 7021982124204_Inspire R White 150 490lm 4000K Ra 98 DALI Dialux file (uld) 7021982124204_Inspire R White 150 490lm 4000K Ra 98 DALI Relux file (rolf) 7021982124204_Inspire_R_White_150_490lm_4000K_Ra_98_DALI EPD NEPD-11153-11103_Inspire-R-150-Dali Revit file - Face Based Inspire R 150 - face based CE Declaration Inspire R

How to specify

Text copied to clipboard

Inspire R White 150 490lm 4000K Ra 98 DALI-2 / Push Dim, Article code: 212420, EAN: 7021982124204, IP20, Electrical: System wattage: 8W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 490lm, Efficacy: 61 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra 98, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Lens, Beam angle: 55°, UGR: UGR<19, Photobiological safety: RG 1, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class II SELV, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Mounting/Connection: Mounting: Recessed, Indoor, Module: Recessed, Connection: Screwless terminal block, Dimensions: Length (mm) L: 163, Width (mm) W: 62, Height (mm) H: 40, Weight (kg) gross/net: 0.468 / 0.372, Packaging: Packaging dimensions (mm): 177 x 121 x 73

Electrical

System wattage
8W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
490lm
Efficacy
61 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra 98
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

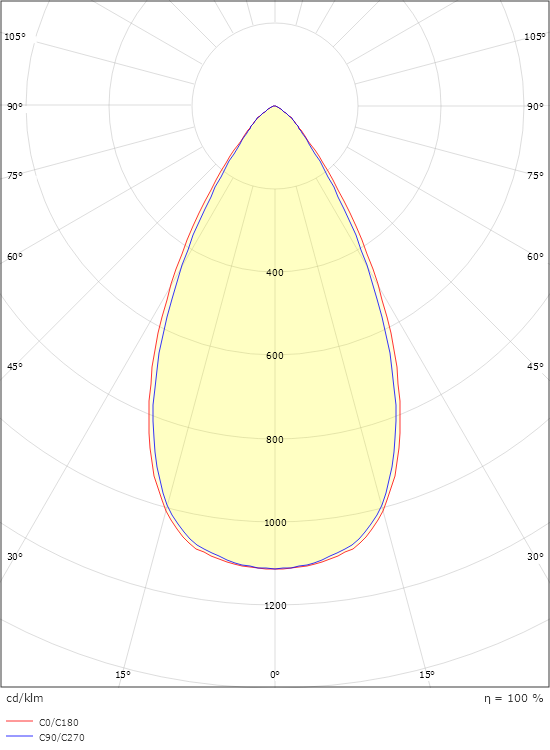

Light distribution
Direct
Optic
Lens
Beam angle
55°

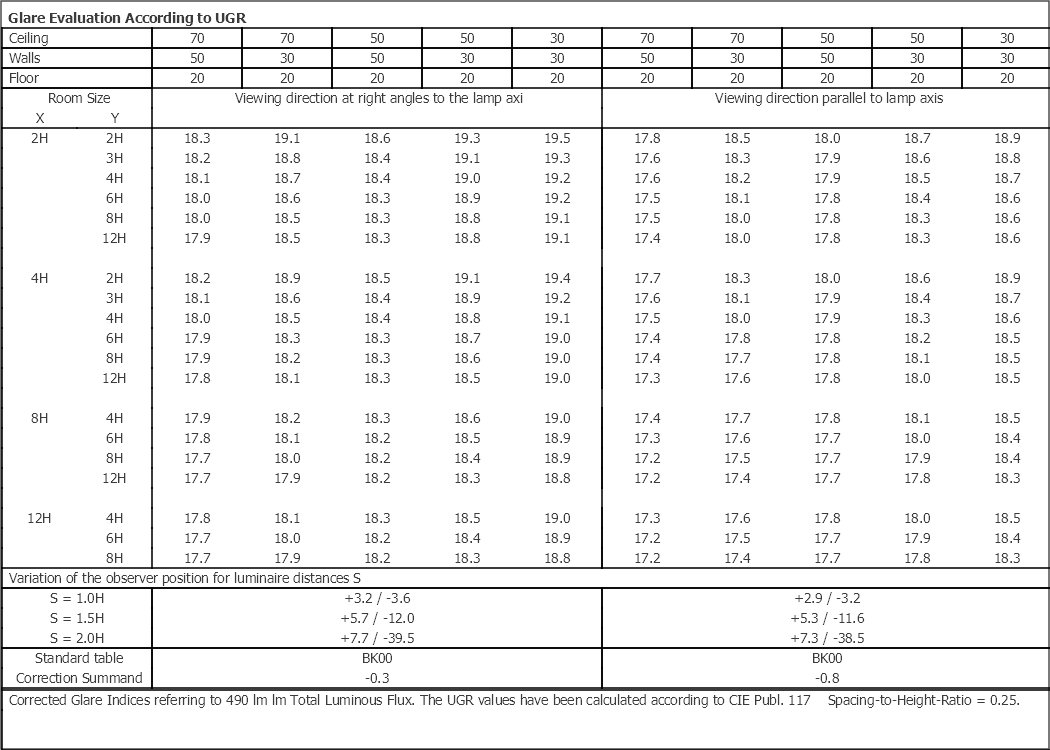

UGR
UGR<19
Photobiological safety
RG 1

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class II SELV
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)

Mounting/Connection

Mounting
Recessed, Indoor
Module
Recessed
Connection
Screwless terminal block

Dimensions

Length (mm) L
163
Width (mm) W
62
Height (mm) H
40
Weight (kg) gross/net
0.468 / 0.372

Packaging

Packaging dimensions (mm)
177 x 121 x 73
