Inspire R

Inspire R Black 150 450lm 2700K Ra 98 Trailing edge

Article code
212421
EAN
7021982124211
Back to articlelist

Overview

Efficacy
56 lm/W
Lumen
450lm
IP Class
IP20
Colour temperature
2700K
Colour rendering (Ra)
Ra 98
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • isosafe
  • dipswitch
  • flickerfree
  • ip20
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 212421 Revit file - Generic Inspire R 150 - generic Eulumdat file (ldt) 7021982124211_Inspire R Black 150 450lm 2700K Ra 98 Trailing edge dimming

See more

Dialux file (uld) 7021982124211_Inspire R Black 150 450lm 2700K Ra 98 Trailing edge dimming Relux file (rolf) 7021982124211_Inspire_R_Black_150_450lm_2700K_Ra_98_Trailing_edge_dimming EPD NEPD-11023-9962_Inspire-R-150 Revit file - Face Based Inspire R 150 - face based Mounting instruction Inspire R150_User Manual CE Declaration Inspire R

How to specify

Text copied to clipboard

Inspire R Black 150 450lm 2700K Ra 98 Trailing edge, Article code: 212421, EAN: 7021982124211, IP20, Electrical: System wattage: 8W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 450lm, Efficacy: 56 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra 98, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Lens, Beam angle: 55°, UGR: UGR<19, Photobiological safety: RG 1, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II SELV, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Mounting/Connection: Mounting: Recessed, Indoor, Module: Recessed, Connection: Screwless terminal block, Dimensions: Length (mm) L: 163, Width (mm) W: 62, Height (mm) H: 40, Weight (kg) gross/net: 0.406 / 0.31, Packaging: Packaging dimensions (mm): 177 x 121 x 73

Electrical

System wattage
8W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
450lm
Efficacy
56 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra 98
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

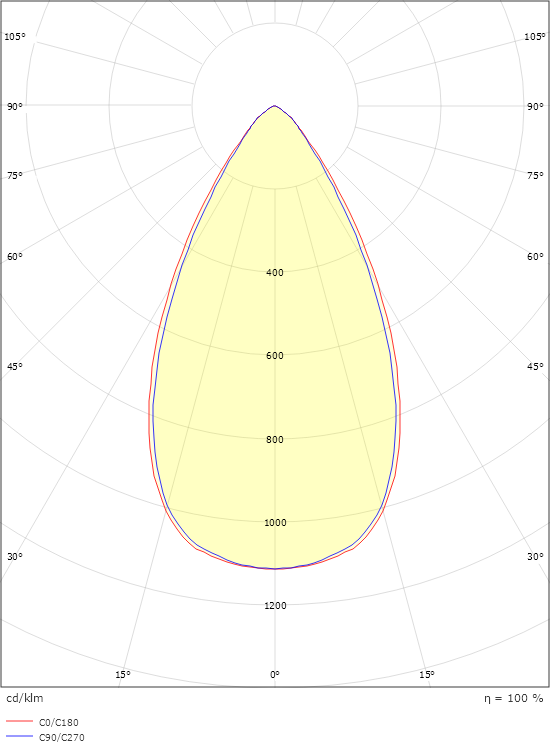

Light distribution
Direct
Optic
Lens
Beam angle
55°
UGR
UGR<19
Photobiological safety
RG 1

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II SELV
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)

Mounting/Connection

Mounting
Recessed, Indoor
Module
Recessed
Connection
Screwless terminal block

Dimensions

Length (mm) L
163
Width (mm) W
62
Height (mm) H
40
Weight (kg) gross/net
0.406 / 0.31

Packaging

Packaging dimensions (mm)
177 x 121 x 73
