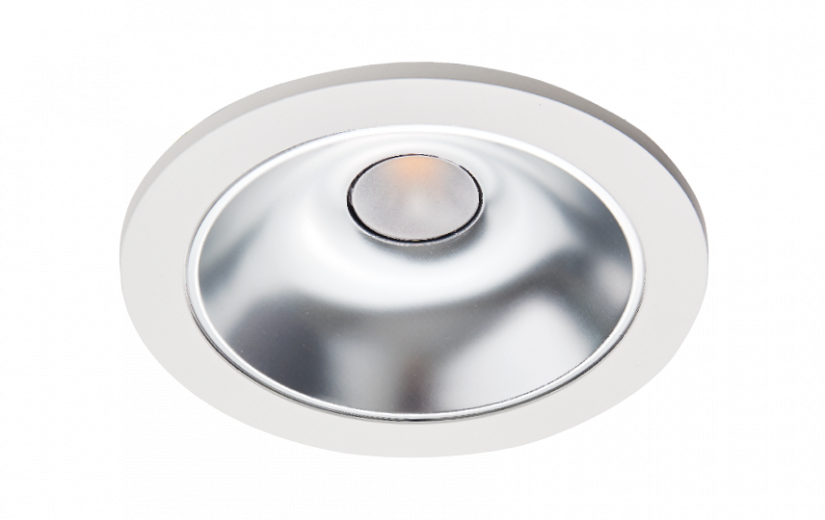

Rax 200
Rax 200 3490lm 3000K Ra>80 On/Off
- Article code
- 8246081254
- EAN
- 5703821165273
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Overview
- Efficacy
- 113 lm/W
- Lumen
- 3490lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
Tools
Downloads
Specification sheet
8246081254
pdf
(Opens in new tab)
Mounting instruction
Rax 200 Phase Cut 14W_User manual
pdf
(Opens in new tab)
CE Declaration
Rax 200
pdf
(Opens in new tab)
Relux file (rolf)
5703821165273_Rax_200_3490lm_3000K_Ra_80_On_Off
rolf
Eulumdat file (ldt)
5703821165273_Rax 200 White 31W 3000K Ra80-12941
ldt
Dialux file (uld)
5703821165273_Rax 200 White 31W 3000K Ra80
uld
Revit file - Generic
Rax 200 - Generic_backup
Revit file - Generic
Rax 200 - Generic
rfa
Revit file - Ceiling Based
Rax 200 - Ceiling Based
rfa
Electrical
- System wattage
- 31W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 21, B16: 34, C10: 35, C16: 58
Light technic
- Type of light source
- LED
- Luminous flux
- 3490lm
- Efficacy
- 113 lm/W
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 2
- Lifetime
- L90/B10>100,000

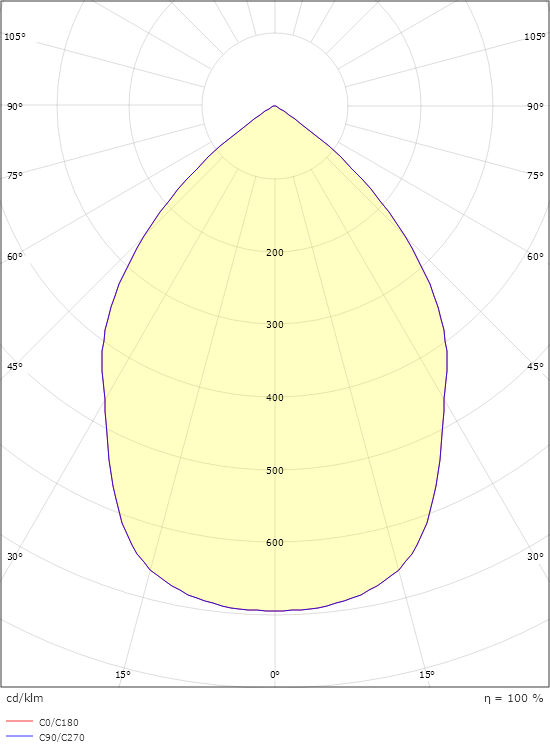

- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Beam angle
- 79°
- UGR
- UGR<25
- Photobiological safety
- RG 1
Control/Dimming
- Type
- On/Off
Protection
- Luminaire class
- Class I
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Flame retardant polycarbonate
- Colour
- White
- Optics
- Aluminium
Mounting/Connection
- Mounting
- Recessed, Indoor
Dimensions
- Length (mm) L
- 223
- Width (mm) W
- 223
- Height (mm) H
- 107
- Diameter (mm) D
- 223
- Cut-out (mm)
- 200
- Distance to flammable materials
- 50mm
- Weight (kg) gross/net
- 1.7 / 1.5
Packaging
- Packaging dimensions (mm)
- 235 x 235 x 130
