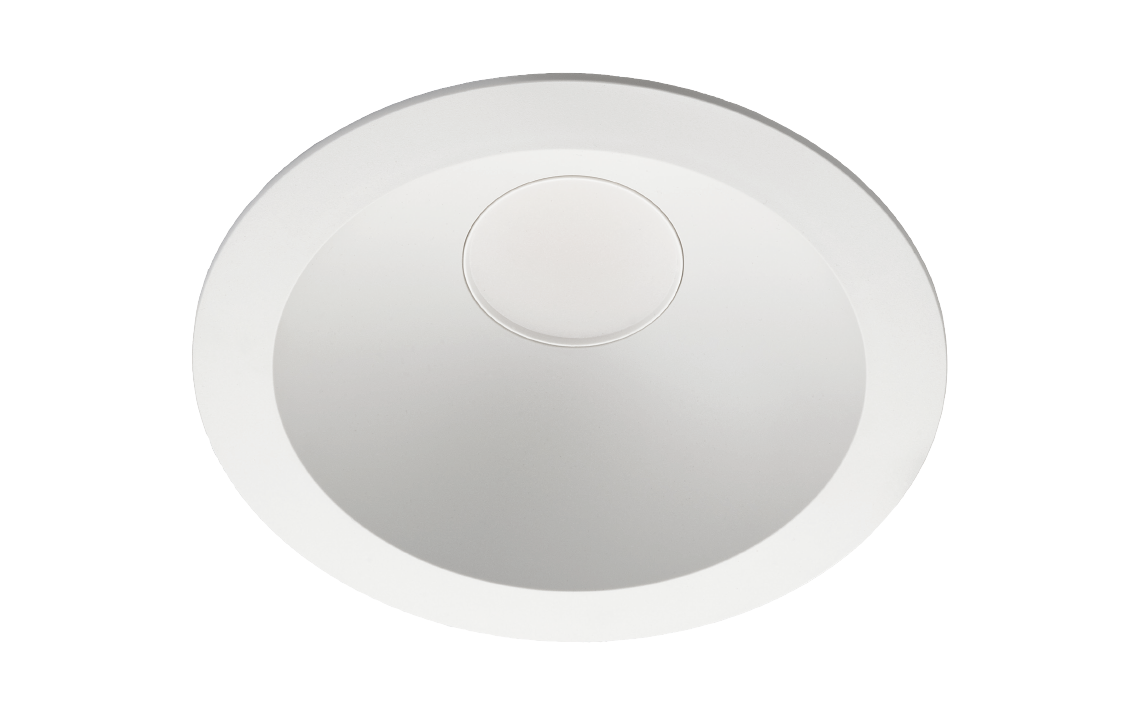

Rax Eco 180-190

Rax Eco 180-190 White 3000/4000K Ra>80 Trailing edge

Article code
212584
EAN
7021982125843
Back to articlelist

Overview

Wattage
8W/17W
Efficacy
111/116/109/115lm/W
Lumen
890lm/930lm/1850lm/1950lm
IP Class
IP20
Colour temperature
3000/4000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • flickerfree
  • cctsw
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 212584 Mounting instruction Rax Eco 180-190_User Manual EPD NEPD-8229-7902_Rax-Eco-180-190 CE Declaration Rax Eco 180-190 Relux file (rolf) 7021982125843_Rax_Eco_180-190_White_1850lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021982125843_Rax_Eco_180-190_White_1950lm_4000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021982125843_Rax_Eco_180-190_White_890lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021982125843_Rax_Eco_180-190_White_930lm_4000K_Ra80_Trailing_edge_dimming Eulumdat file (ldt) 7021982125843_Rax Eco 180-190 White 1850lm 3000K Ra80 Trailing edge dimming Eulumdat file (ldt) 7021982125843_Rax Eco 180-190 White 1950lm 4000K Ra80 Trailing edge dimming Eulumdat file (ldt) 7021982125843_Rax Eco 180-190 White 890lm 3000K Ra80 Trailing edge dimming Eulumdat file (ldt) 7021982125843_Rax Eco 180-190 White 930lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021982125843_Rax Eco 180-190 White 1850lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021982125843_Rax Eco 180-190 White 1950lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021982125843_Rax Eco 180-190 White 890lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021982125843_Rax Eco 180-190 White 930lm 4000K Ra80 Trailing edge dimming Revit file - Generic Rax ECO 180 -190 - generic Revit file - Ceiling Based Rax Eco 180-190 - ceiling based

How to specify

Text copied to clipboard

Rax Eco 180-190 White 3000/4000K Ra>80 Trailing edge, Article code: 212584, EAN: 7021982125843, IP20, Electrical: Wattage: 8W/17W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 30, B16: 47, C10: 50, C16: 80, Light technic: Type of light source: LED, Luminous flux: 890lm/930lm/1850lm/1950lm, Efficacy: 111/116/109/115lm/W, Colour temperature: 3000/4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Reflector, Beam angle: 95°, Visible flicker (PstLM): 0.04, Stroboscopic flicker (SVM): 0, Photobiological safety: RG 1, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Indoor, Connection: 3 pol Linect / screwless terminal block, Dimensions: Height (mm) H: 93, Diameter (mm) D: 210, Weight (kg) gross/net: 1 / 0.78, Packaging: Packaging dimensions (mm): 230 x 222 x 110

Electrical

Wattage
8W/17W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 30, B16: 47, C10: 50, C16: 80

Light technic

Type of light source
LED
Luminous flux
890lm/930lm/1850lm/1950lm
Efficacy
111/116/109/115lm/W
Colour temperature
3000/4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000
Light distribution
Direct
Optic
Reflector
Beam angle
95°
Visible flicker (PstLM)
0.04
Stroboscopic flicker (SVM)
0
Photobiological safety
RG 1

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
E

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Indoor
Connection
3 pol Linect / screwless terminal block

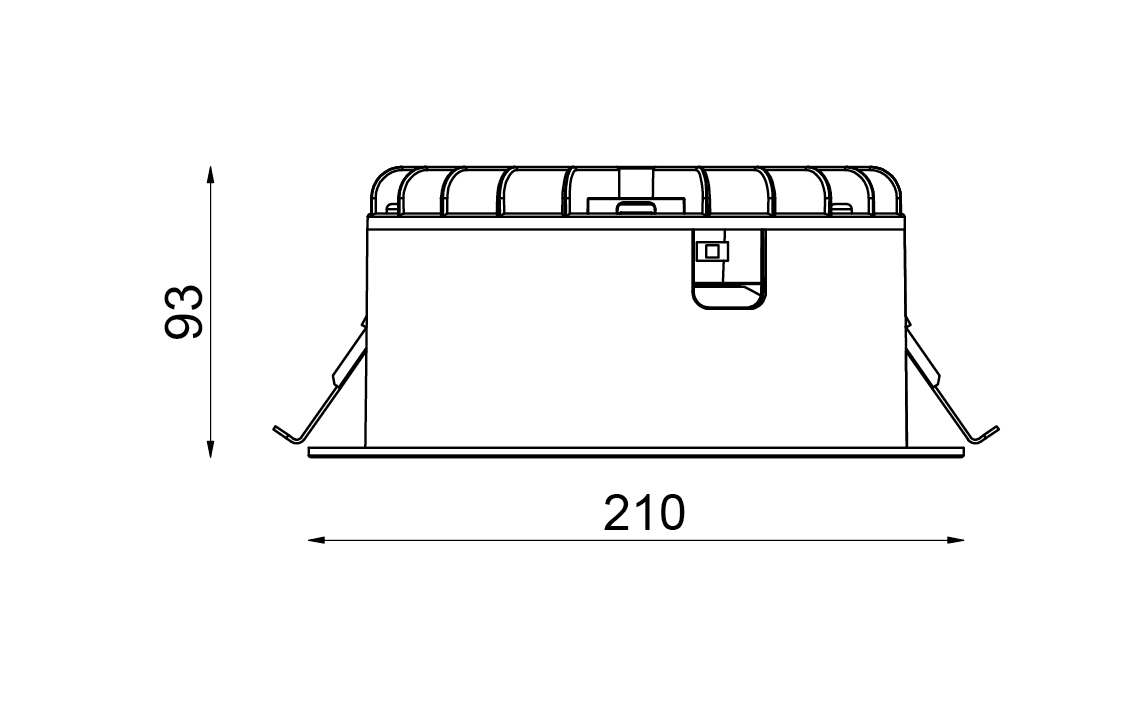

Dimensions

Height (mm) H
93
Diameter (mm) D
210
Weight (kg) gross/net
1 / 0.78

Packaging

Packaging dimensions (mm)
230 x 222 x 110
