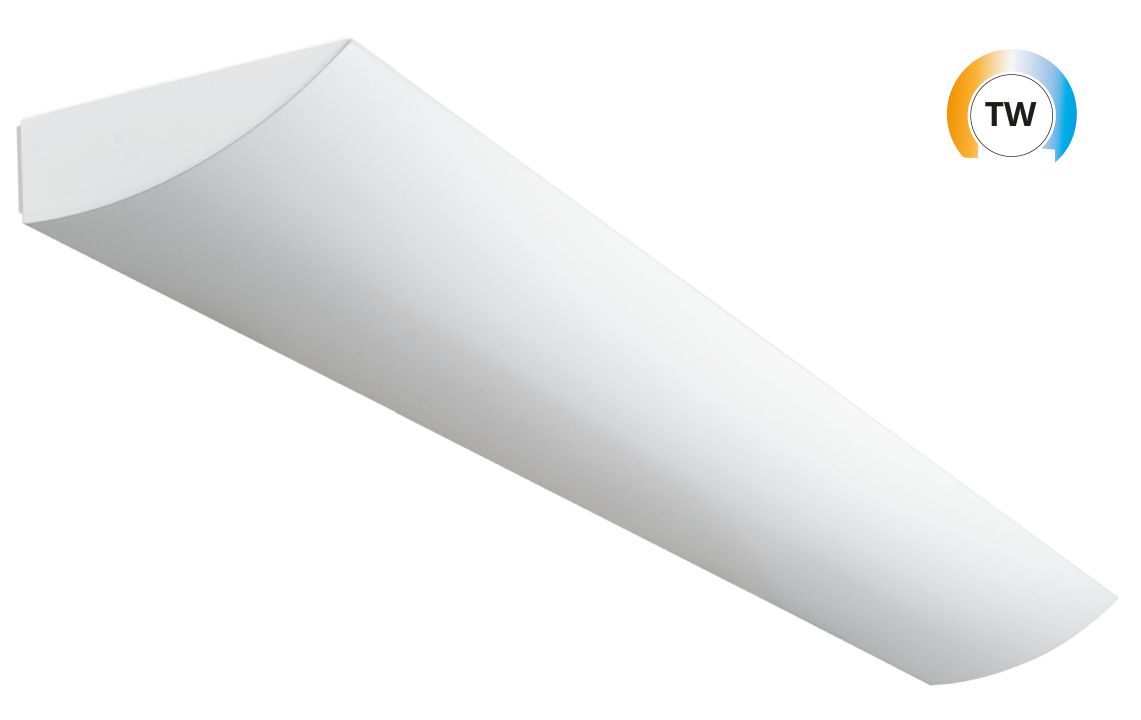

Comfort TW
Comfort LED TW 3070lm 2700-6500K Ra>80 TW DALI Type 8
- SG code
- 8246091888
- EAN
- 5703821173971
Overview
- Efficacy
- 106 lm/W
- Lumen
- 3070lm
- IP Class
- IP20
- Colour temperature
- 2700-6500K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B10>
- Mounting
- Wall, Indoor
Tools
Downloads
Specification sheet
8246091888
pdf
(Opens in new tab)
Mounting instruction
Comfort LED TW Mounting Instruction
pdf
(Opens in new tab)
EPD
NEPD-5034-4373_Comfort-LED
pdf
(Opens in new tab)
CE Declaration
Comfort LED TW
pdf
(Opens in new tab)
Relux file (rolf)
5703821173971_Comfort_LED_TW_3070lm_2700-6500K_Ra_80_Tunable_White_DALI_Type_8
rolf
Eulumdat file (ldt)
5703821173971_ComfortLED900TW29W2700-6500KRa80CD-DA8-20042
ldt
Dialux file (uld)
5703821173971_ComfortLED900TW29W2700-6500KRa80CD-DA8
uld
Revit file - Generic
Comfort LED - generic
rfa
Revit file - Face Based
Comfort LED TW- face based
rfa
Electrical
- System wattage
- 29W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 11, B16: 17, C10: 18, C16: 29
- Leakage current (mA)
- 0.35
Light technic
- Type of light source
- LED
- Luminous flux
- 3070lm
- Efficacy
- 106 lm/W
- Colour temperature
- 2700-6500K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B10>50,000

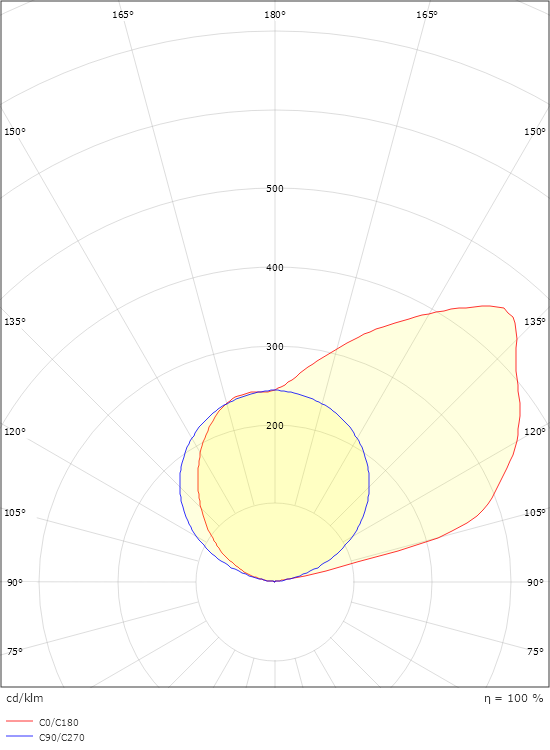

- Light distribution
- Direct
- Optic
- Glass Clear
Control/Dimming
- Type
- TW DALI Type 8
Protection
- Luminaire class
- Class I
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel
- Optics
- Tempered glass
Mounting/Connection
- Mounting
- Wall, Indoor
- Connection
- Screwless terminal block

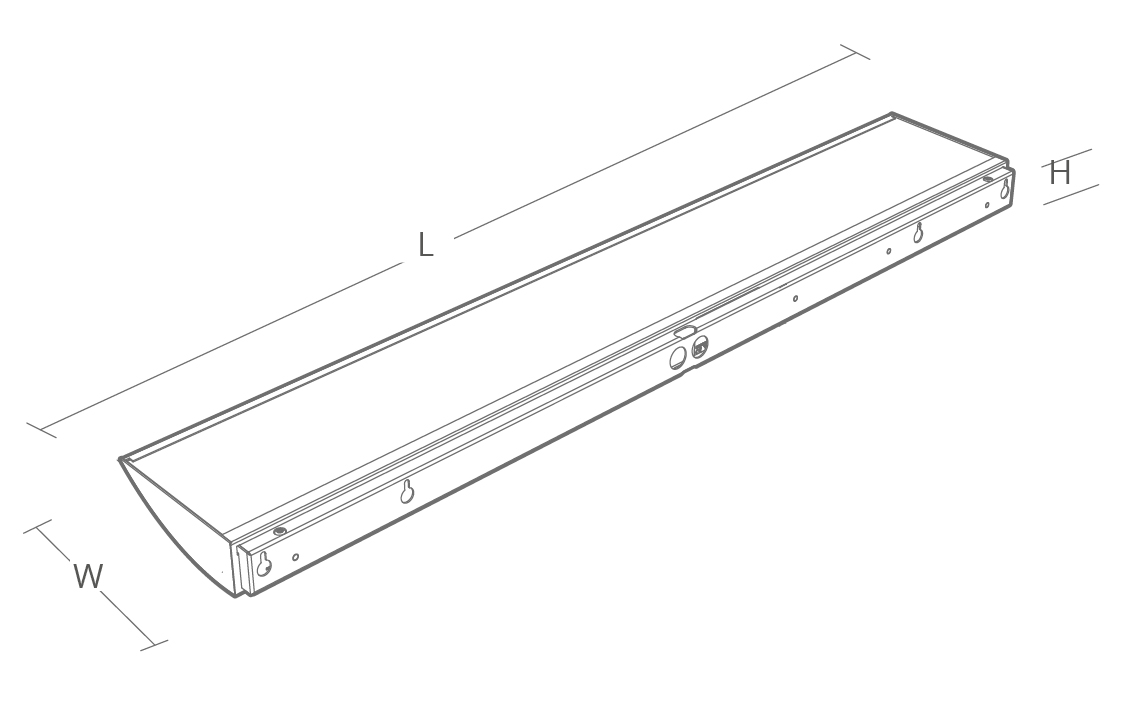

Dimensions
- Length (mm) L
- 895
- Width (mm) W
- 158
- Height (mm) H
- 45
- Weight (kg) gross/net
- 4.2 / 4
Packaging
- Packaging dimensions (mm)
- 895 x 158 x 450
