Comfort

Comfort LED White 3840lm 4000K Ra>80 DALI-2 / Push Dim

Article code
8246092023
EAN
5703821175128
Back to articlelist

Overview

Efficacy
167 lm/W
Lumen
3840lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B10>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246092023 Mounting instruction Comfort LED_User Manual EPD NEPD-5034-4373_Comfort-LED CE Declaration Comfort LED Relux file (rolf) 5703821175128_Comfort_LED_White_3480lm_4000K_Ra_80_DALI___Push_Dim Eulumdat file (ldt) 5703821175128_Comfort LED White 3480lm 4000K Ra80 DALI Push Dim Dialux file (uld) 5703821175128_Comfort LED White 3480lm 4000K Ra80 DALI Push Dim Revit file - Generic Comfort LED - generic Revit file - Face Based Comfort LED- face based

How to specify

Text copied to clipboard

Comfort LED White 3840lm 4000K Ra>80 DALI-2 / Push Dim, Article code: 8246092023, EAN: 5703821175128, IP20, Electrical: System wattage: 23W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 13, B16: 20, C10: 21, C16: 34, Leakage current (mA): 0,07, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 3840lm, Efficacy: 167 lm/W, Constant lumen output option: Yes, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>50,000, Minimum ambient temperature: -25°C, Light distribution: Direct, Optic: Glass Clear, Visible flicker (PstLM): 0,02, Stroboscopic flicker (SVM): 0, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White (Pure white, 25% gloss), Optics: Tempered glass, Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 895, Width (mm) W: 158, Height (mm) H: 45, Weight (kg) gross/net: 4.4 / 4, Packaging: Packaging dimensions (mm): 895 x 158 x 45

Electrical

System wattage
23W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 13, B16: 20, C10: 21, C16: 34
Leakage current (mA)
0,07

Light technic

Type of light source
LED
Light source included
Yes
Luminous flux
3840lm
Efficacy
167 lm/W
Constant lumen output option
Yes
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>50,000
Minimum ambient temperature
-25°C

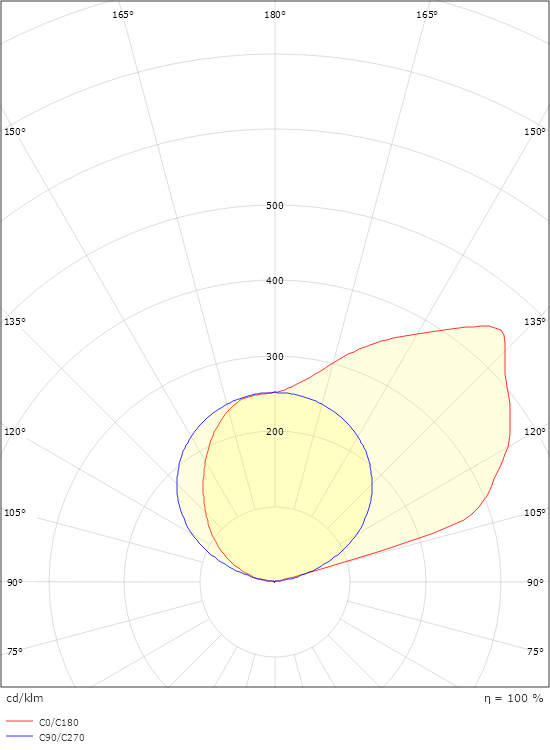

Light distribution
Direct
Optic
Glass Clear
Visible flicker (PstLM)
0,02
Stroboscopic flicker (SVM)
0

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White (Pure white, 25% gloss)
Optics
Tempered glass

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
895
Width (mm) W
158
Height (mm) H
45
Weight (kg) gross/net
4.4 / 4

Packaging

Packaging dimensions (mm)
895 x 158 x 45
