Curve
Curve Black 520lm 3000K Ra>80 Trailing edge
- Article code
- 614341
- EAN
- 7021986143416
Overview
- Efficacy
- 74 lm/W
- Lumen
- 520lm
- IP Class
- IP65
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Indoor / Outdoor
Tools
Downloads
Specification sheet
614341
pdf
(Opens in new tab)
Mounting instruction
Curve Mounting instructions
pdf
(Opens in new tab)
CE Declaration
Curve
pdf
(Opens in new tab)
Relux file (rolf)
7021986143416_Curve_Black_520lm_3000K_Ra_80_Trailing_edge_dimming
rolf
Eulumdat file (ldt)
7021986143416_Curve Black 520lm 3000K Ra80 Trailing edge dimming
ldt
Dialux file (uld)
7021986143416_Curve Black 520lm 3000K Ra80 Trailing edge dimming
uld
Revit file - Generic
Curve - Generic
rfa
Revit file - Face Based
Curve - face based
rfa
Electrical
- System wattage
- 7W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
Light technic
- Type of light source
- LED
- Luminous flux
- 520lm
- Efficacy
- 74 lm/W
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L90/B10>50,000
- Lifetime
- L80/B10>100,000

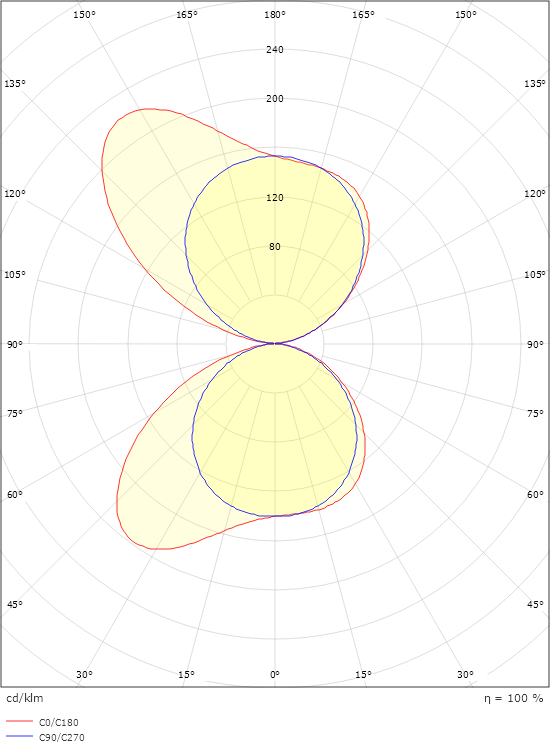

- Light distribution
- Direct/Indirect
- Optic
- Glass Clear
- Beam angle
- 110°/110°
- Photobiological safety
- RG 0
Control/Dimming
- Type
- Trailing edge
Protection
- Luminaire class
- Class I
- IK Class
- IK06
- IP Class
- IP65
Energy and approvals
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- BVB
- Yes
- Sunda Hus
- C-
Materials and finish
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- Tempered glass
Mounting/Connection
- Mounting
- Surface, Indoor / Outdoor
- Connection
- Screwless terminal block
Dimensions
- Width (mm) W
- 320
- Height (mm) H
- 60
- Depth (D)
- 103
- Weight (kg) gross/net
- 1.68 / 1.4
Packaging
- Packaging dimensions (mm)
- 330 x 120 x 70
