Curve
Curve Graphite 500lm 2700K Ra>80 Trailing edge
- Article code
- 623340
- EAN
- 7021986233407
Overview
- Efficacy
- 71 lm/W
- Lumen
- 500lm
- IP Class
- IP65
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Indoor / Outdoor
Tools
Downloads
Specification sheet
623340
pdf
(Opens in new tab)
Mounting instruction
Curve Mounting instructions
pdf
(Opens in new tab)
CE Declaration
Curve
pdf
(Opens in new tab)
Relux file (rolf)
7021986233407_Curve_Graphite_500lm_2700K_Ra_80_Trailing_edge_dimming
rolf
Eulumdat file (ldt)
7021986233407_Curve Graphite 500lm 2700K Ra80 Trailing edge dimming
ldt
Dialux file (uld)
7021986233407_Curve Graphite 500lm 2700K Ra80 Trailing edge dimming
uld
Revit file - Generic
Curve - Generic
rfa
Revit file - Face Based
Curve - face based
rfa
Electrical
- System wattage
- 7W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
Light technic
- Type of light source
- LED
- Luminous flux
- 500lm
- Efficacy
- 71 lm/W
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L90/B10>50,000
- Lifetime
- L80/B10>100,000

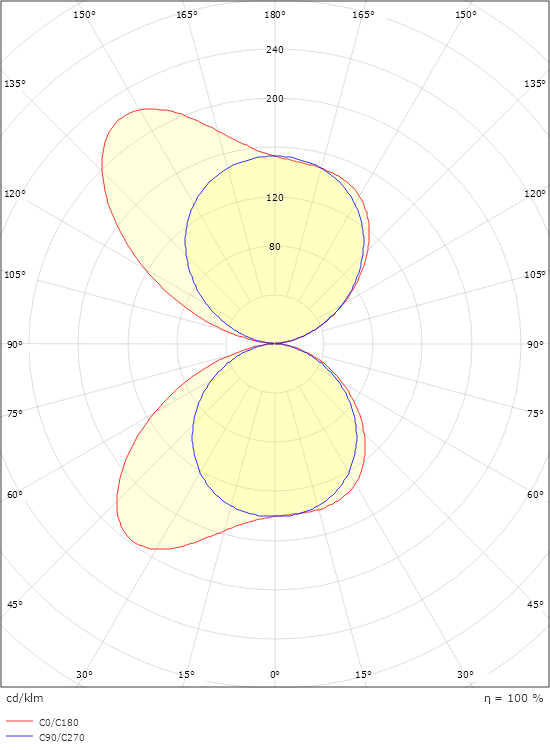

- Light distribution
- Direct/Indirect
- Optic
- Glass Clear
- Beam angle
- 110°/110°
- Photobiological safety
- RG 0
Control/Dimming
- Type
- Trailing edge
Protection
- Luminaire class
- Class I
- IK Class
- IK06
- IP Class
- IP65
Energy and approvals
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- BVB
- Yes
- Sunda Hus
- C-
Materials and finish
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- Tempered glass
Mounting/Connection
- Mounting
- Surface, Indoor / Outdoor
- Connection
- Screwless terminal block
Dimensions
- Width (mm) W
- 320
- Height (mm) H
- 60
- Depth (D)
- 103
- Weight (kg) gross/net
- 1.68 / 1.4
Packaging
- Packaging dimensions (mm)
- 330 x 120 x 70
