Edge

Edge Graphite 580lm 3000K Ra>80 Trailing edge

Article code
623351
EAN
7021986233513
Back to articlelist

Overview

Efficacy
83 lm/W
Lumen
580lm
IP Class
IP65
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L90/B10>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik06
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 623351 Eulumdat file (ldt) 7021986233513_Edge Graphite 580lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986233513_Edge Graphite 580lm 3000K Ra80 Trailing edge dimming

See more

Relux file (rolf) 7021986233513_Edge_Graphite_580lm_3000K_Ra_80_Trailing_edge_dimming Revit file - Generic Edge - Generic Revit file - Face Based Edge - face based Mounting instruction Edge Mounting instructions CE Declaration Edge

How to specify

Text copied to clipboard

Edge Graphite 580lm 3000K Ra>80 Trailing edge, Article code: 623351, EAN: 7021986233513, IP65, IK06, Electrical: System wattage: 7W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 33, B16: 52, C10: 40, C16: 64, Light technic: Type of light source: LED, Luminous flux: 580lm, Efficacy: 83 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>50,000, Lifetime: L80/B10>100,000, Light distribution: Direct, Optic: Glass Clear, Beam angle: 110°/110°, Photobiological safety: RG 0, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IK Class: IK06, IP Class: IP65, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: C-, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: Tempered glass, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 320, Height (mm) H: 60, Depth (D): 103, Weight (kg) gross/net: 2.04 / 1.7, Packaging: Packaging dimensions (mm): 330 x 120 x 70

Electrical

System wattage
7W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 33, B16: 52, C10: 40, C16: 64

Light technic

Type of light source
LED
Luminous flux
580lm
Efficacy
83 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B10>50,000
Lifetime
L80/B10>100,000

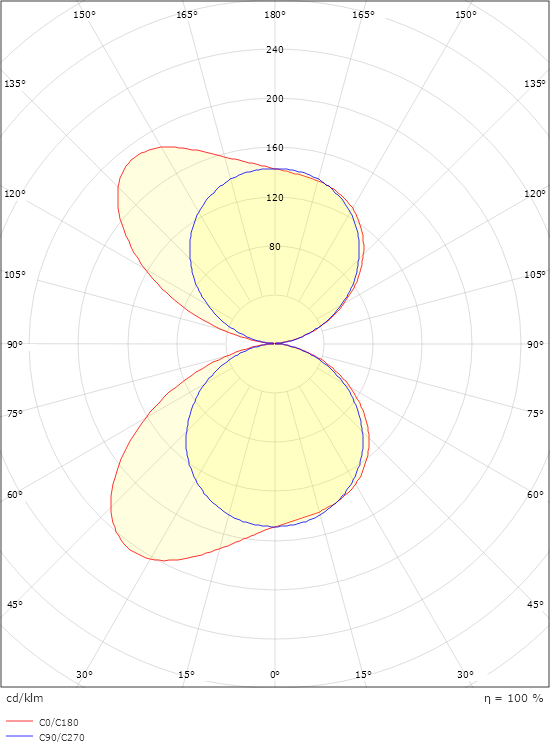

Light distribution
Direct
Optic
Glass Clear
Beam angle
110°/110°
Photobiological safety
RG 0

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IK Class
IK06
IP Class
IP65

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
C-

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
Tempered glass

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
320
Height (mm) H
60
Depth (D)
103
Weight (kg) gross/net
2.04 / 1.7

Packaging

Packaging dimensions (mm)
330 x 120 x 70
