Safir

Safir White 1000lm 4000K Ra>80 Trailing edge

SG code
597112
EAN
7021985971126
Back to articlelist

Overview

Efficacy
133 lm/W
Lumen
1000lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B20>
  • dipswitch
  • flickerfree
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 597112 Mounting instruction Safir LED_User Manual EPD NEPD-8260-7922_Safir CE Declaration Safir Relux file (rolf) 7021985971126_Safir_White_1000lm_4000K_Ra_80_Trailing_edge Eulumdat file (ldt) 7021985971126_Safir White 1000lm 4000K Ra80 Trailing edge Dialux file (uld) 7021985971126_Safir White 1000lm 4000K Ra80 Trailing edge Revit file - Generic Safir - Generic Revit file - Face Based Safir - face based

How to specify

Text copied to clipboard

Safir White 1000lm 4000K Ra>80 Trailing edge, Article code: 597112, EAN: 7021985971126, IP20, Electrical: System wattage: 7.5W, Voltage: 220-240V, Light technic: Type of light source: LED, Luminous flux: 1000lm, Efficacy: 133 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B20>100,000, Lifetime: L80/B20>75.000, Control gear, h/max failure %: 100000/10, Light distribution: Direct, Beam angle: 118°, UGR: UGR<22, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Connection: Screwless terminal block, Dimensions: Width (mm) W: 270, Height (mm) H: 314, Depth (D): 88, Weight (kg) gross/net: 2.4 / 2.02, Packaging: Packaging dimensions (mm): 325 x 280 x 100

Electrical

System wattage
7.5W
Voltage
220-240V

Light technic

Type of light source
LED
Luminous flux
1000lm
Efficacy
133 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B20>100,000
Lifetime
L80/B20>75.000
Control gear, h/max failure %
100000/10
Light distribution
Direct
Beam angle
118°

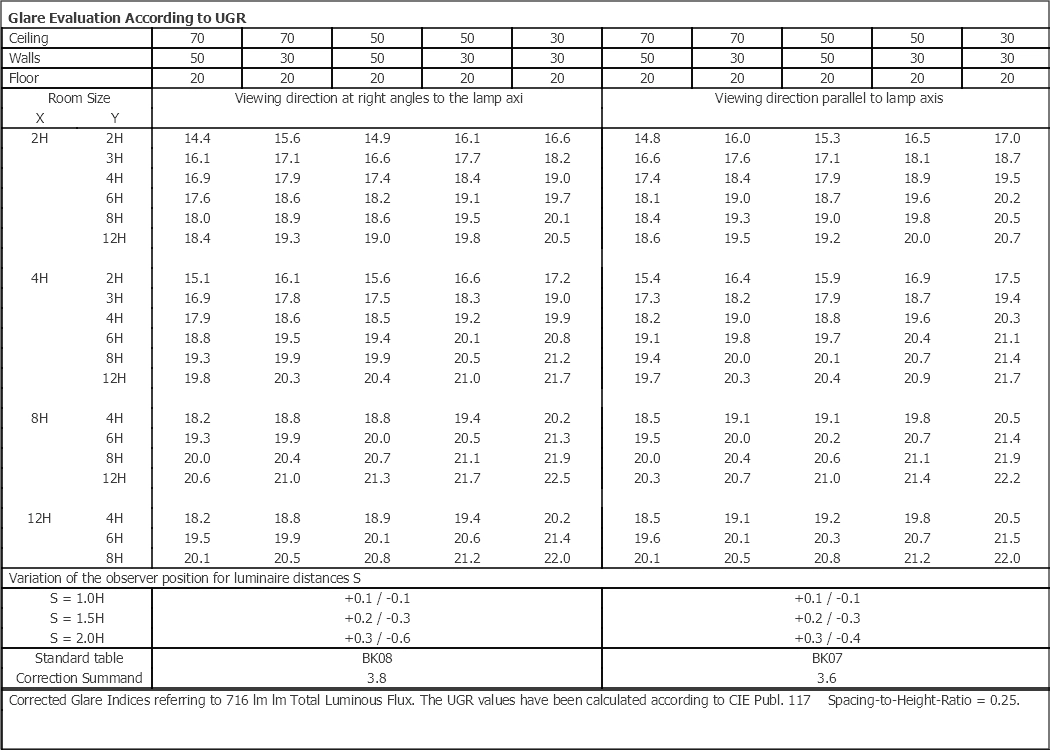

UGR
UGR<22

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Connection
Screwless terminal block

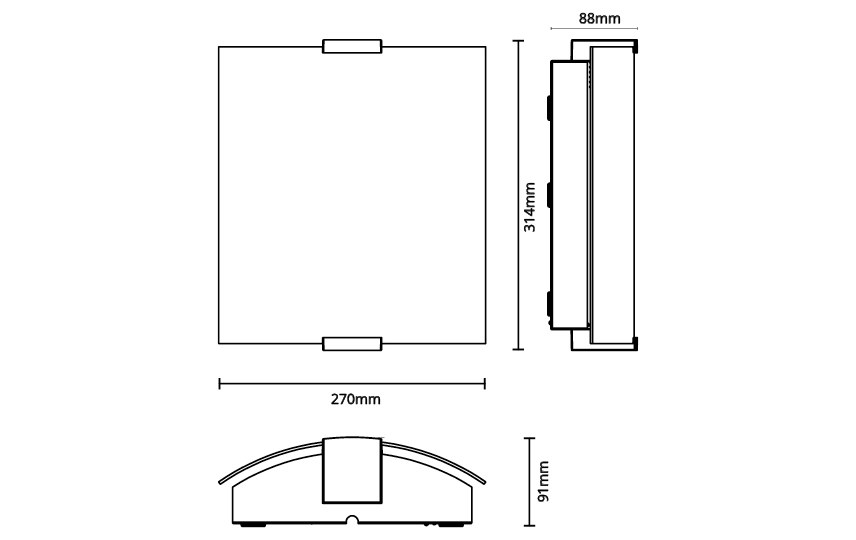

Dimensions

Width (mm) W
270
Height (mm) H
314
Depth (D)
88
Weight (kg) gross/net
2.4 / 2.02

Packaging

Packaging dimensions (mm)
325 x 280 x 100
