DiLED IV TW
DiLED IV 595x595 White 3320lm 2700-6500K Ra>80 TW DALI Type 8
- Article code
- 8246095156
- EAN
- 5703821179423
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Overview
- Efficacy
- 95 lm/W
- Lumen
- 3320lm
- IP Class
- IP20
- Colour temperature
- 2700-6500K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B50>
- Mounting
- Indoor
Tools
Downloads
Specification sheet
8246095156
pdf
(Opens in new tab)
Mounting instruction
Diled IV user manual
pdf
(Opens in new tab)
CE Declaration
DiLED IV TW
pdf
(Opens in new tab)
Relux file (rolf)
5703821179423_DiLED_IV_Prism_595x595_White_3320lm_2700-6500K_Ra_80_Tunable_White_DALI_Type_8
rolf
Eulumdat file (ldt)
5703821179423_DiLED IV TW Prism 595x595 White 3320lm 2700-6500K Ra80
ldt
Dialux file (uld)
5703821179423_DiLED IV TW Prism 595x595 White 3320lm 2700-6500K Ra80
uld
Electrical
- System wattage
- 35W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 10, B16: 16, C10: 16, C16: 26
Light technic
- Type of light source
- LED
- Luminous flux
- 3320lm
- Efficacy
- 95 lm/W
- Colour temperature
- 2700-6500K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L90/B50>100,000
- Lifetime
- L95>50,000

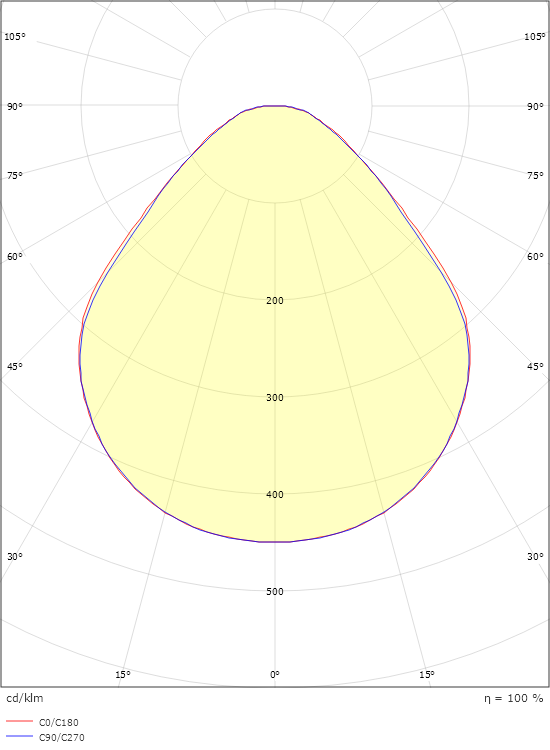

- Light distribution
- Direct
- Optic
- Prism Optic
Control/Dimming
- Type
- TW DALI Type 8
Protection
- Luminaire class
- Class II
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel
- Colour
- White
- Optics
- PMMA Polymethylmethacrylat, Aluminium
Mounting/Connection
- Mounting
- Indoor
- Module
- 595x595 Exposed T-carrier 15/24mm
- Connection
- 5 pol Linect / screwless terminal block
Dimensions
- Length (mm) L
- 595
- Width (mm) W
- 595
- Height (mm) H
- 60
- Weight (kg) gross/net
- 5 / 4.8
Packaging
- Packaging dimensions (mm)
- 605 x 605 x 95
