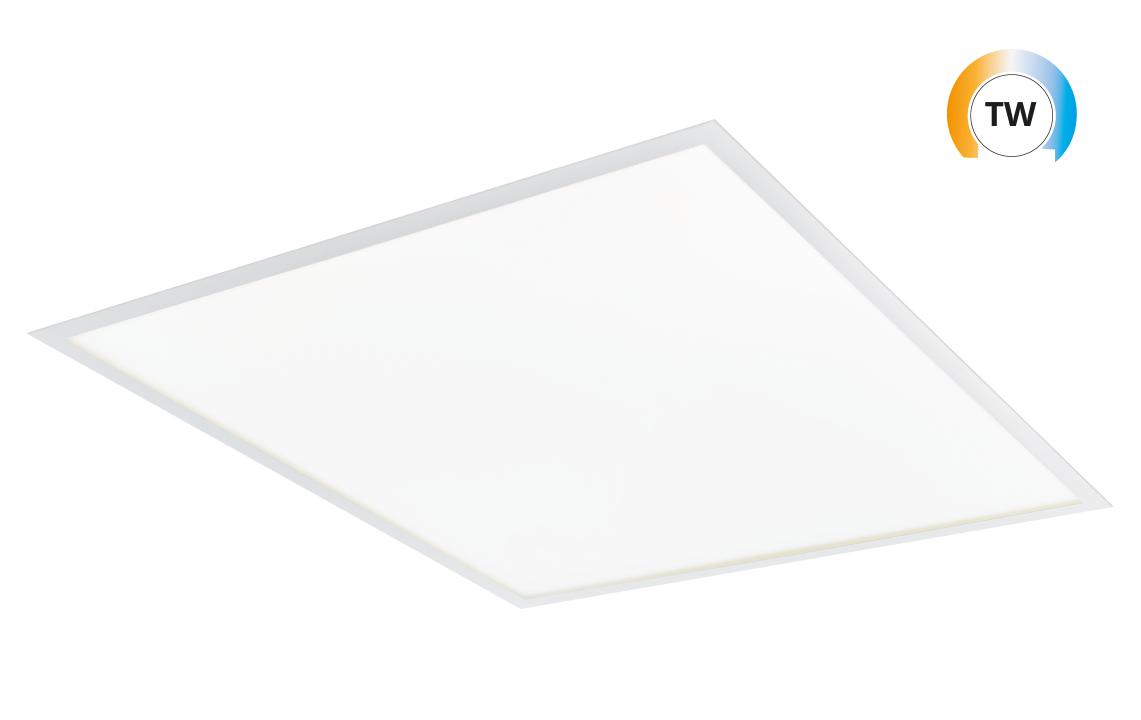

DiLED IV TW
DiLED Iv 599x599 White 3320lm 2700-6500K Ra>80 TW DALI Type 8
- Article code
- 8246095169
- EAN
- 5703821179430
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Overview
- Efficacy
- 95 lm/W
- Lumen
- 3320lm
- IP Class
- IP20
- Colour temperature
- 2700-6500K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B50>
- Mounting
- Indoor
Electrical
- System wattage
- 35W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 10, B16: 16, C10: 16, C16: 26
Light technic
- Type of light source
- LED
- Luminous flux
- 3320lm
- Efficacy
- 95 lm/W
- Colour temperature
- 2700-6500K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L90/B50>100,000
- Lifetime
- L95>50,000
- Light distribution
- Direct
- Optic
- Prism Optic
Control/Dimming
- Type
- TW DALI Type 8
Protection
- Luminaire class
- Class II
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel
- Colour
- White
- Optics
- Acrylic (PMMA)
Mounting/Connection
- Mounting
- Indoor
- Module
- 599x599 C, Clip-in Ceiling
Dimensions
- Length (mm) L
- 599
- Width (mm) W
- 599
- Height (mm) H
- 60
- Weight (kg) gross/net
- 5 / 4.8
Packaging
- Packaging dimensions (mm)
- 605 x 605 x 95
