Lineal Recessed

Lineal recessed 1120 White 1870lm 3000K Ra>80 DALI-2 / Push Dim

Article code
8246095664
EAN
5703821180177
Back to articlelist

Overview

Efficacy
110 lm/W
Lumen
1870lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B10>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • el
  • flickerfree
  • ik08
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246095664 Revit file - Generic Lineal recessed 1120 - generic Revit file - Ceiling Based Lineal recessed 1120 - ceiling based

See more

Eulumdat file (ldt) 5703821180177_Lineal Recessed 1120 White 1870lm 3000K Ra80 DALI Dialux file (uld) 5703821180177_Lineal Recessed 1120 White 1870lm 3000K Ra80 DALI Relux file (rolf) 5703821180177_Lineal_Recessed_1120_White_1870lm_3000K_Ra_80_DALI EPD NEPD-4804-4068_Lineal-Recessed-1120 Mounting instruction Lineal Recessed_User Manual CE Declaration Lineal Recessed

How to specify

Text copied to clipboard

Lineal recessed 1120 White 1870lm 3000K Ra>80 DALI-2 / Push Dim, Article code: 8246095664, EAN: 5703821180177, IP20, IK08, Electrical: System wattage: 17W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 13, B16: 20, C10: 21, C16: 33, Leakage current (mA): 0.29, Light technic: Type of light source: LED, Luminous flux: 1870lm, Efficacy: 110 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>100,000, Lifetime: L93/>50,000, Light distribution: Direct, UGR: UGR<28, Photobiological safety: RG 0, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Mounting/Connection: Mounting: Recessed, Indoor, Module: 1120, Connection: 5-pole Winsta mini with 5x2,5mm2 through wiring, Dimensions: Length (mm) L: 1121, Width (mm) W: 62, Height (mm) H: 62, Weight (kg) gross/net: 2.4 / 2.2, Packaging: Packaging dimensions (mm): 1225 x 71 x 64

Electrical

System wattage
17W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 13, B16: 20, C10: 21, C16: 33
Leakage current (mA)
0.29

Light technic

Type of light source
LED
Luminous flux
1870lm
Efficacy
110 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>100,000
Lifetime
L93/>50,000

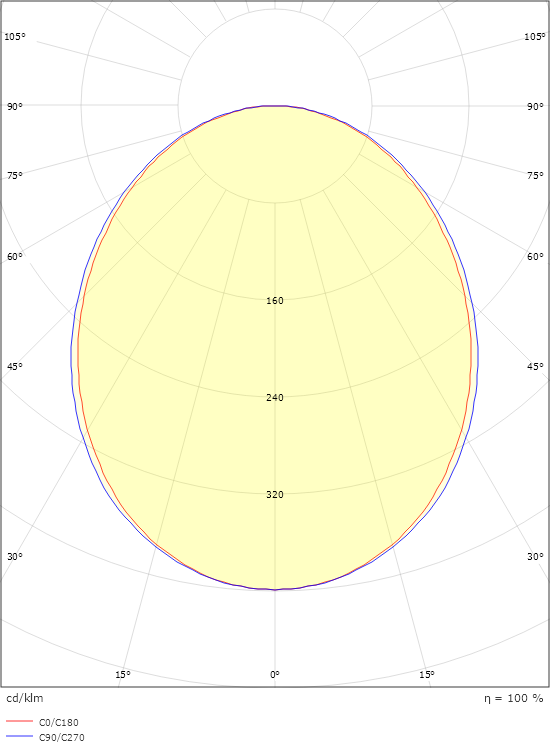

Light distribution
Direct

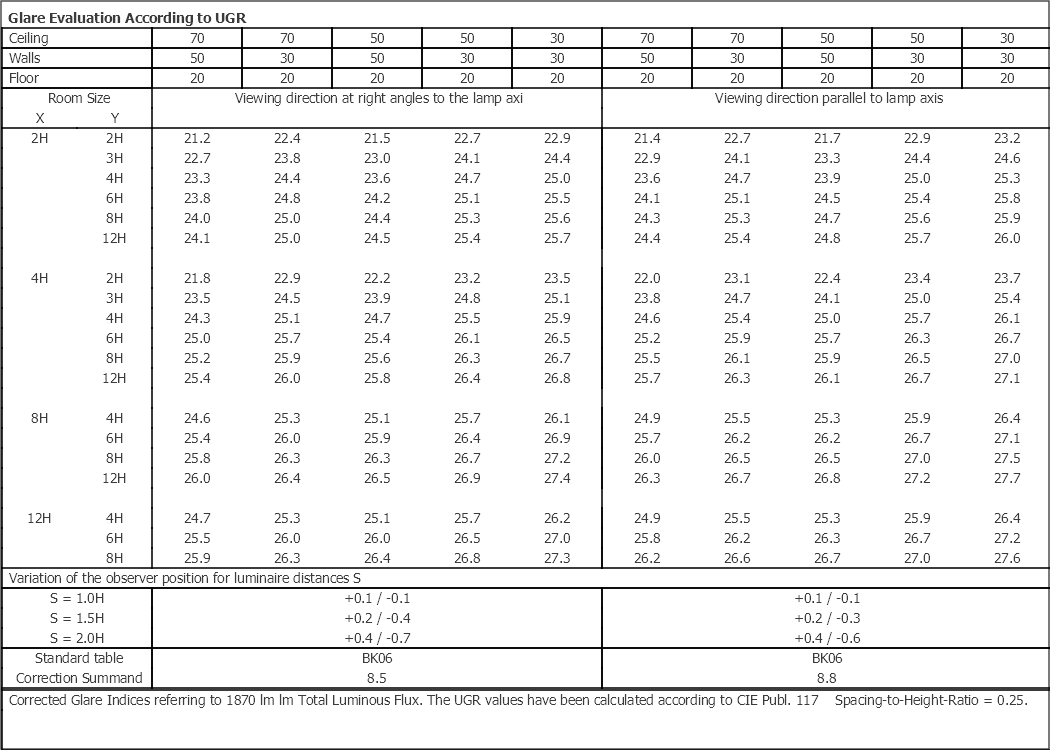

UGR
UGR<28
Photobiological safety
RG 0

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class I
IK Class
IK08
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)

Mounting/Connection

Mounting
Recessed, Indoor
Module
1120
Connection
5-pole Winsta mini with 5x2,5mm2 through wiring

Dimensions

Length (mm) L
1121
Width (mm) W
62
Height (mm) H
62
Weight (kg) gross/net
2.4 / 2.2

Packaging

Packaging dimensions (mm)
1225 x 71 x 64
