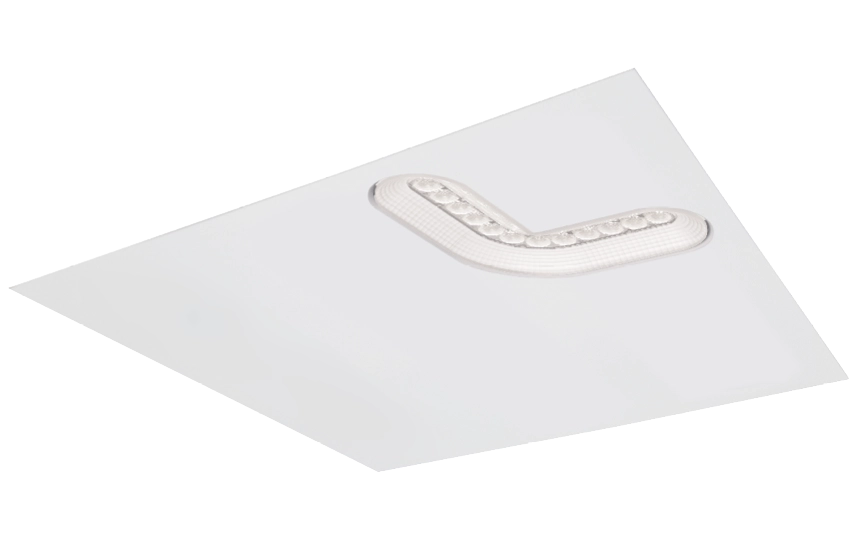

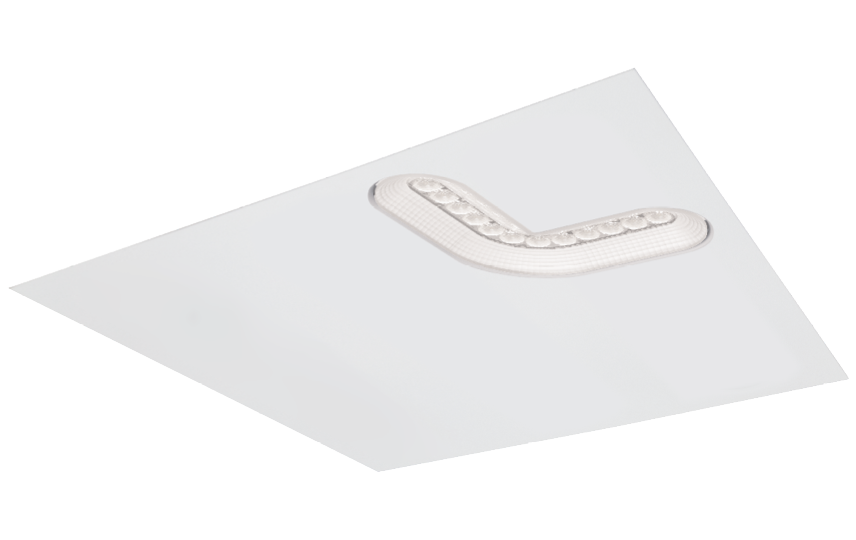

Molior Corner
Molior Corner 599x599 White 920lm 4000K Ra>80
- SG code
- 8246093145
- EAN
- 5703821174978
Overview
- Efficacy
- 102 lm/W
- Lumen
- 920lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L90/B10>
- Mounting
- Recessed, Indoor
Tools
Downloads
Specification sheet
8246093145
pdf
(Opens in new tab)
Mounting instruction
Molior Corner Mounting Instruction
pdf
(Opens in new tab)
CE Declaration
Molior Corner
pdf
(Opens in new tab)
Relux file (rolf)
5703821174978_Molior_Corner_599x599_White_920lm_4000K_Ra_80
rolf
Eulumdat file (ldt)
5703821174978_Molior1cornersystem599x599C9W4000KRa80R-Lens-Clear-28276
ldt
Dialux file (uld)
5703821174978_Molior1cornersystem599x599C9W4000KRa80R-Lens-Clear
uld
Revit file - Generic
Molior 4 Corner - Generic
rfa
Revit file - Ceiling Based
Molior 4 Corner - Ceiling based
rfa
Electrical
- System wattage
- 9W
- Voltage
- 220-240V
Light technic
- Type of light source
- LED
- Luminous flux
- 920lm
- Efficacy
- 102 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L90/B10>50,000

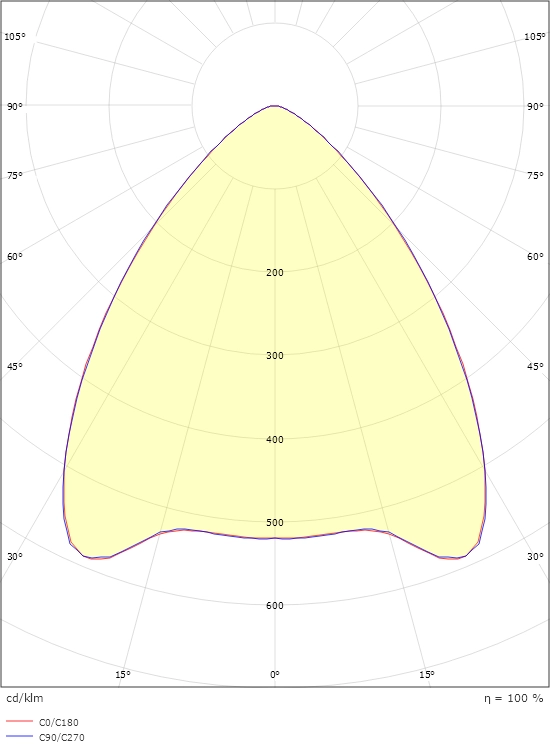

- Light distribution
- Direct
- Optic
- R-Lens Clear
- UGR
- UGR<19
- Photobiological safety
- RG 1
Protection
- Luminaire class
- Class III
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel
- Colour
- White
- Optics
- Acrylic (PMMA)
Mounting/Connection
- Mounting
- Recessed, Indoor
- Module
- 599x599 Clip-in

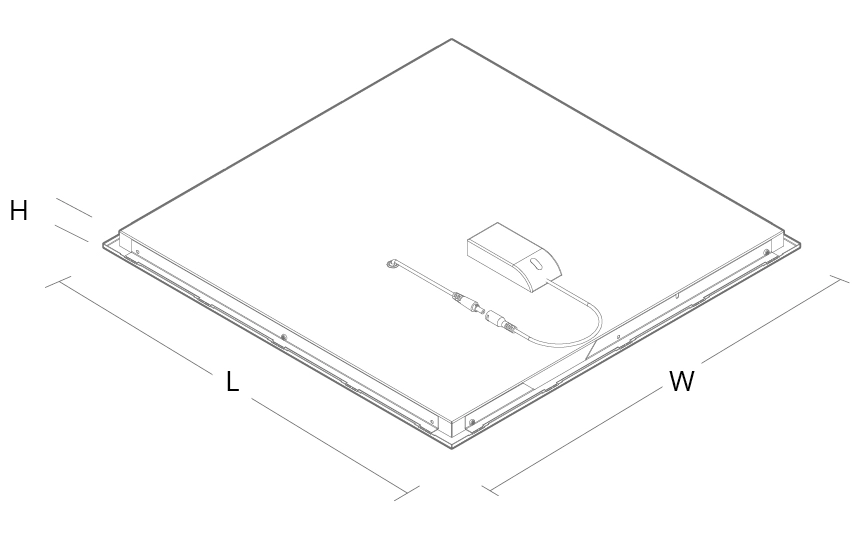

Dimensions
- Length (mm) L
- 599
- Width (mm) W
- 599
- Height (mm) H
- 100
- Ceiling void depth (mm)
- 100
- Weight (kg) gross/net
- 5.1 / 4.9
Packaging
- Packaging dimensions (mm)
- 645 x 645 x 60
