Multi Concept

Multi Concept White Insert 3000K Ra>80 DALI-2

Article code
8246091655
EAN
5703821174091
Back to articlelist

Overview

IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
60,000 L80/B10>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • el
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246091655 Eulumdat file (ldt) 5703821174091_Multi Concept DiLED Frame Opal White 2490lm 3000K Ra80 DALI Eulumdat file (ldt) 5703821174091_Multi Concept DiLED Frame Prism White 2210lm 3000K Ra80 DALI

See more

Eulumdat file (ldt) 5703821174091_Multi Concept Illusion White 2400lm 3000K Ra80 DALI Eulumdat file (ldt) 5703821174091_Multi Concept RL530 Drop Down White 2160lm 3000K Ra80 DALI Eulumdat file (ldt) 5703821174091_Multi Concept RL530 White 1970lm 3000K Ra80 DALI Eulumdat file (ldt) 5703821174091_Multi Concept Velios White 2280lm 3000K Ra80 DALI Dialux file (uld) 5703821174091_Multi Concept DiLED Frame Opal White 2490lm 3000K Ra80 DALI Dialux file (uld) 5703821174091_Multi Concept DiLED Frame Prism White 2210lm 3000K Ra80 DALI Dialux file (uld) 5703821174091_Multi Concept Illusion White 2400lm 3000K Ra80 DALI Dialux file (uld) 5703821174091_Multi Concept RL530 Drop Down White 2160lm 3000K Ra80 DALI Dialux file (uld) 5703821174091_Multi Concept RL530 White 1970lm 3000K Ra80 DALI Dialux file (uld) 5703821174091_Multi Concept Velios White 2280lm 3000K Ra80 DALI Relux file (rolf) 5703821174091_Multi_Concept_DiLED_Frame_Opal_White_2490lm_3000K_Ra80_DALI Relux file (rolf) 5703821174091_Multi_Concept_DiLED_Frame_Prism_White_2210lm_3000K_Ra80_DALI Relux file (rolf) 5703821174091_Multi_Concept_Illusion_White_2400lm_3000K_Ra80_DALI Relux file (rolf) 5703821174091_Multi_Concept_RL530_Drop_Down_White_2160lm_3000K_Ra80_DALI Relux file (rolf) 5703821174091_Multi_Concept_RL530_White_1970lm_3000K_Ra80_DALI Relux file (rolf) 5703821174091_Multi_Concept_Velios_White_2280lm_3000K_Ra80_DALI Mounting instruction MultiConcept_User Manual CE Declaration Multi Concept

How to specify

Text copied to clipboard

Multi Concept White Insert 3000K Ra>80 DALI-2, Article code: 8246091655, EAN: 5703821174091, IP20, Electrical: System wattage: 22W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 15, B16: 24, C10: 25, C16: 41, Leakage current (mA): 0.29, Light technic: Type of light source: LED, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>60,000, Light distribution: Direct, UGR: UGR<19, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White (Pure white, 25% gloss), Mounting/Connection: Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 512, Width (mm) W: 542, Height (mm) H: 30, Weight (kg) gross/net: 2.7 / 2.5, Packaging: Packaging dimensions (mm): 520 x 550 x 35

Electrical

System wattage
22W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 15, B16: 24, C10: 25, C16: 41
Leakage current (mA)
0.29

Light technic

Type of light source
LED
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>60,000

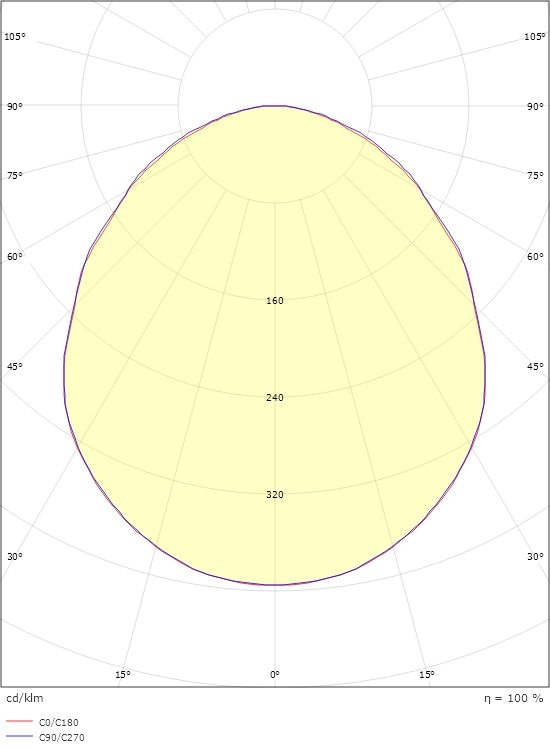

Light distribution
Direct
UGR
UGR<19

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White (Pure white, 25% gloss)

Mounting/Connection

Mounting
Recessed, Indoor

Dimensions

Length (mm) L
512
Width (mm) W
542
Height (mm) H
30
Weight (kg) gross/net
2.7 / 2.5

Packaging

Packaging dimensions (mm)
520 x 550 x 35
