Sense Basic

Sense Basic 600x600 White Cable and plug 2m 3070lm 3000K Ra>80 Trailing edge

Article code
212218
EAN
7021982122187
Back to articlelist

Overview

Efficacy
133 lm/W
Lumen
3070lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ik06
  • ip20
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 212218 Mounting instruction Sense Basic 600x600 3000lm Gen 2_User Manual EPD NEPD-11014-9971_Sense-Basic-600x600-Cable CE Declaration Sense Basic Relux file (rolf) 7021982122187_Sense_Basic_600x600_White_Cable_and_plug_2m_3070lm_3000K_Ra_80_Trailing_edge_dimming Eulumdat file (ldt) 7021982122187_Sense Basic 600x600 White Cable and plug 2m 3070lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021982122187_Sense Basic 600x600 White Cable and plug 2m 3070lm 3000K Ra80 Trailing edge dimming Revit file - Generic Sense Basic 2 600x600 - generic Revit file - Ceiling Based Sense Basic 2 600x600 - ceiling based

How to specify

Text copied to clipboard

Sense Basic 600x600 White Cable and plug 2m 3070lm 3000K Ra>80 Trailing edge, Article code: 212218, EAN: 7021982122187, IP20, IK06, Electrical: System wattage: 23W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 3070lm, Efficacy: 133 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Light distribution: Direct, Optic: Opalprism, UGR: UGR<18, Visible flicker (PstLM): 0.09, Stroboscopic flicker (SVM): 0.04, Photobiological safety: RG 0, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II SELV, IK Class: IK06, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Materials and finish: Housing: Steel, Colour: White smooth (Ral 9016 gloss 30), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Indoor, Module: 600x600, Cable: Cable 2m, Connection: Includes cable and plug, Dimensions: Length (mm) L: 595, Width (mm) W: 595, Height (mm) H: 36, Weight (kg) gross/net: 3 / 2.5, Packaging: Packaging dimensions (mm): 710 x 635 x 42

Electrical

System wattage
23W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
3070lm
Efficacy
133 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Light distribution
Direct
Optic
Opalprism
UGR
UGR<18
Visible flicker (PstLM)
0.09
Stroboscopic flicker (SVM)
0.04
Photobiological safety
RG 0

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II SELV
IK Class
IK06
IP Class
IP20

Energy and approvals

Contains light source of energy class
C

Materials and finish

Housing
Steel
Colour
White smooth (Ral 9016 gloss 30)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Indoor
Module
600x600
Cable
Cable 2m
Connection
Includes cable and plug

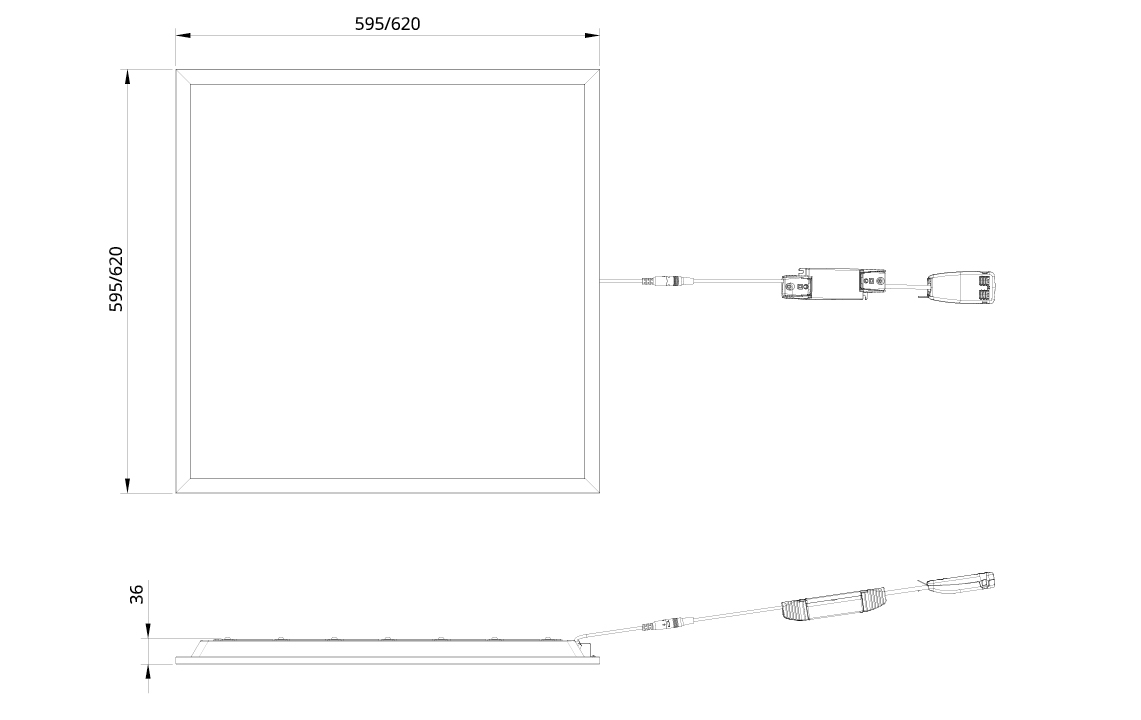

Dimensions

Length (mm) L
595
Width (mm) W
595
Height (mm) H
36
Weight (kg) gross/net
3 / 2.5

Packaging

Packaging dimensions (mm)
710 x 635 x 42
