Sense Eco Opalprism 300x1200

Sense ECO 300x1200 White Opalprism 2920lm 3000K Ra>80 DALI-2 / Push Dim

Article code
820083+212224
EAN
7021982122248+7021988200834
SG code
212224+820083
Back to articlelist

Overview

Efficacy
108 lm/W
Lumen
2920lm
IP Class
IP40/IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • el
  • dipswitch
  • ip20ip40
  • klasse_3
  • ce
  • enec

Tools

Downloads

Specification sheet 212224+820083 Mounting instruction Sense 3000lm Driver Kit DALI_user manual Eulumdat file (ldt) 70219821222487021988200834_Sense Eco 300x1200 White Opalprism 2920lm 3000K Ra80 DALI Push Dim

See more

Dialux file (uld) 70219821222487021988200834_Sense Eco 300x1200 White Opalprism 2920lm 3000K Ra80 DALI Push Dim Relux file (rolf) 70219821222487021988200834_Sense_Eco_300x1200_White_Opalprism_2920lm_3000K_Ra_80_DALI___Push_Dim CE Declaration Sense Eco Opalprism

How to specify

Text copied to clipboard

Sense ECO 300x1200 White Opalprism 2920lm 3000K Ra>80 DALI-2 / Push Dim, Article code: 212224+820083, EAN: 7021982122248+7021988200834, IP40/IP20, Electrical: System wattage: 27W, Max. luminaires per circuit breaker: B10: 31, B16: 50, C10: 53, C16: 85, Light technic: Type of light source: LED, Luminous flux: 2920lm, Efficacy: 108 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 110°, UGR: UGR<19, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class III, IP Class: IP40/IP20, Energy and approvals: Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Indoor, Module: 300x1200 Exposed T-carrier 15/24mm, Connection: Quick connector, Dimensions: Length (mm) L: 1197, Width (mm) W: 297, Height (mm) H: 10, Weight (kg) gross/net: 3

Electrical

System wattage
27W
Max. luminaires per circuit breaker
B10: 31, B16: 50, C10: 53, C16: 85

Light technic

Type of light source
LED
Luminous flux
2920lm
Efficacy
108 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000

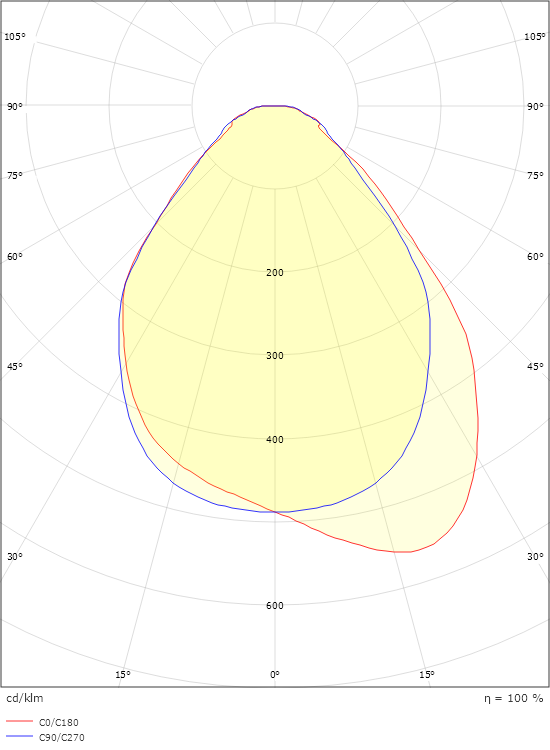

Light distribution
Direct
Optic
Opalprism
Beam angle
110°
UGR
UGR<19

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class III
IP Class
IP40/IP20

Energy and approvals

Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Indoor
Module
300x1200 Exposed T-carrier 15/24mm
Connection
Quick connector

Dimensions

Length (mm) L
1197
Width (mm) W
297
Height (mm) H
10
Weight (kg) gross/net
3
