Sense Eco

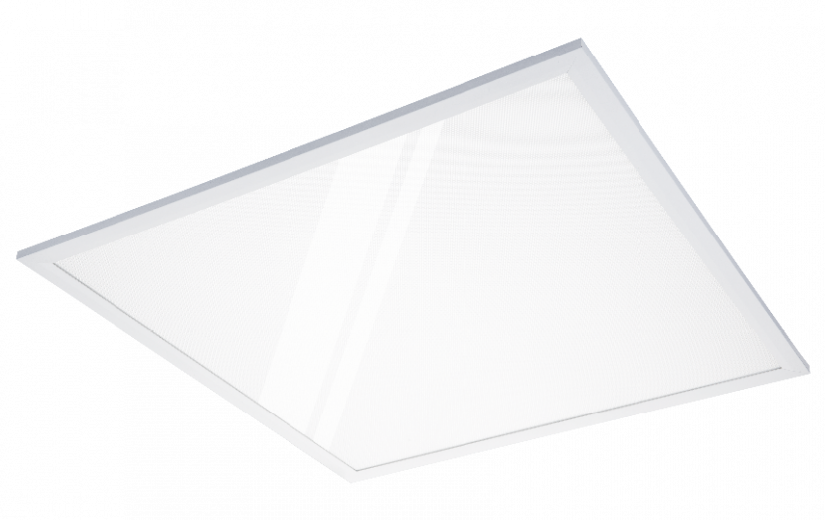

Sense ECO 600x600 White 2700lm 4000K

Article code
212221
EAN
7021982122217
Replaces
212223
Back to articlelist

Overview

Wattage
25W
Efficacy
100 lm/W
Lumen
2700lm
IP Class
IP40/IP20
Colour temperature
4000K
Lifetime
50,000 L80/B20>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ik10
  • ip20ip40
  • klasse_3
  • ce

Tools

Downloads

Specification sheet 212221 Revit file - Generic Sense Eco - generic Revit file - Face Based Sense ECO - face based

See more

Eulumdat file (ldt) 7021982122217_SenseEco600x600White25WLED4000K-36462 Dialux file (uld) 7021982122217_SenseEco600x600White25WLED4000K Relux file (rolf) 7021982122217_Sense_ECO_600x600_White_2700lm_4000K_Ra_80 Mounting instruction Sense Eco 600x600 User manual CE Declaration Sense Eco

How to specify

Text copied to clipboard

Sense ECO 600x600 White 2700lm 4000K, Article code: 212221, EAN: 7021982122217, IP40/IP20, IK10, Electrical: Wattage: 25W, System wattage: 27W, Light technic: Type of light source: LED, Luminous flux: 2700lm, Efficacy: 100 lm/W, Colour temperature: 4000K, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opal, Beam angle: 110°, UGR: UGR<19, Photobiological safety: RG 0, Protection: Luminaire class: Class III, IK Class: IK10, IP Class: IP40/IP20, Materials and finish: Housing: Aluminium, Colour: White smooth (Ral 9016 gloss 30), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Indoor, Module: 600x600 Exposed T-carrier 15/24mm, Connection: Quick connector, Dimensions: Length (mm) L: 597, Width (mm) W: 597, Height (mm) H: 10, Weight (kg) gross/net: 4.7 / 4.5, Packaging: Packaging dimensions (mm): 635 x 635 x 43

Electrical

Wattage
25W
System wattage
27W

Light technic

Type of light source
LED
Luminous flux
2700lm
Efficacy
100 lm/W
Colour temperature
4000K
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000
Lifetime
L90>50,000

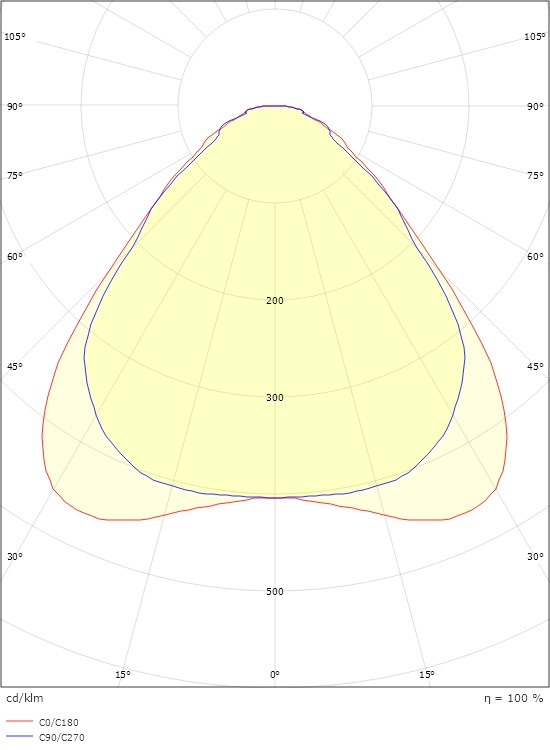

Light distribution
Direct
Optic
Opal
Beam angle
110°
UGR
UGR<19
Photobiological safety
RG 0

Protection

Luminaire class
Class III
IK Class
IK10
IP Class
IP40/IP20

Materials and finish

Housing
Aluminium
Colour
White smooth (Ral 9016 gloss 30)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Indoor
Module
600x600 Exposed T-carrier 15/24mm
Connection
Quick connector

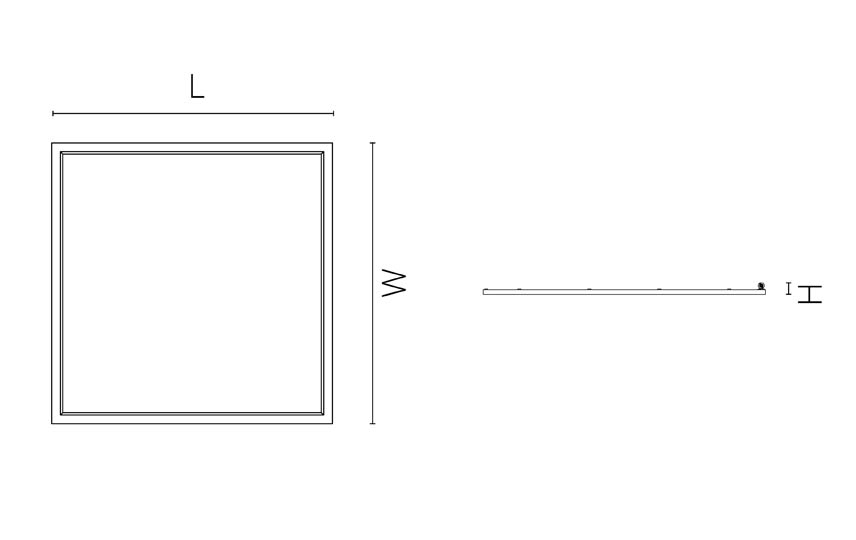

Dimensions

Length (mm) L
597
Width (mm) W
597
Height (mm) H
10
Weight (kg) gross/net
4.7 / 4.5

Packaging

Packaging dimensions (mm)
635 x 635 x 43
