Sense IP65 Eco

Sense IP65 Eco White 4060lm 3000K Ra>80 Trailing edge

Article code
212390
EAN
7021982123900
Back to articlelist

Overview

Efficacy
119 lm/W
Lumen
4060lm
IP Class
IP65
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • ip65
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 212390 Revit file - Generic Sense IP65 Eco - generic Revit file - Face Based Sense IP65 ECO - face based

See more

Eulumdat file (ldt) 7021982123900_Sense IP65 Eco White 4060lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021982123900_Sense IP65 Eco White 4060lm 3000K Ra80 Trailing edge dimming Relux file (rolf) 7021982123900_Sense_IP65_Eco_White_4060lm_3000K_Ra_80_Trailing_edge_dimming EPD NEPD-9258-8842_Sense-IP65-Eco Mounting instruction Sense IP65 ECO_User Manual HACCP 4724055-240002_Test Attestation (SG Armaturen AS - Sense IP65 Eco) CE Declaration Sense IP65 Eco ENEC Certificate Sense IP65 Eco

How to specify

Text copied to clipboard

Sense IP65 Eco White 4060lm 3000K Ra>80 Trailing edge, Article code: 212390, EAN: 7021982123900, IP65, Electrical: System wattage: 34W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 4060lm, Efficacy: 119 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 89°, Photobiological safety: RG 0, Control/Dimming: Type: Trailing edge, Driver: 900mA, Protection: Luminaire class: Class II, IP Class: IP65, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Food Safety approved (IFS and HACCP): Yes, Materials and finish: Housing: Aluminium, Colour: White smooth (Ral 9016 gloss 30), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Indoor, Module: Exposed T-carrier 15/24mm, Dimensions: Length (mm) L: 597, Width (mm) W: 597, Height (mm) H: 53, Weight (kg) gross/net: 4.1 / 3.85, Packaging: Packaging dimensions (mm): 635 x 635 x 70

Electrical

System wattage
34W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
4060lm
Efficacy
119 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

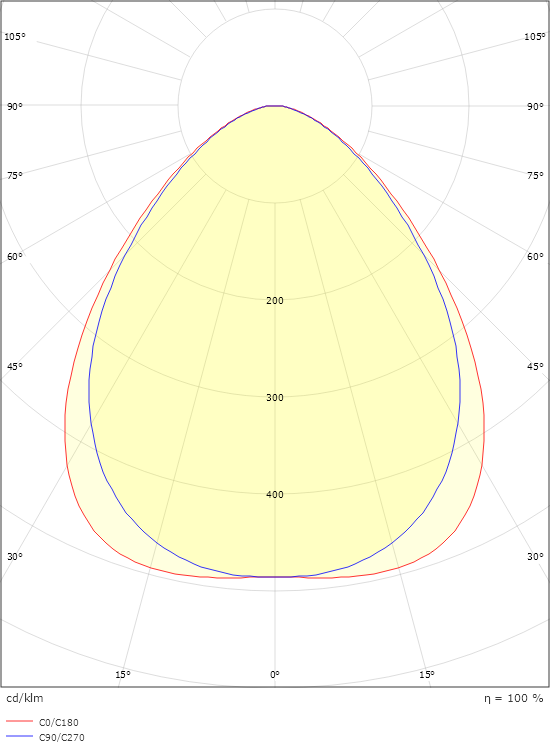

Light distribution
Direct
Optic
Opalprism
Beam angle
89°
Photobiological safety
RG 0

Control/Dimming

Type
Trailing edge
Driver
900mA

Protection

Luminaire class
Class II
IP Class
IP65

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
Food Safety approved (IFS and HACCP)
Yes

Materials and finish

Housing
Aluminium
Colour
White smooth (Ral 9016 gloss 30)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Indoor
Module
Exposed T-carrier 15/24mm

Dimensions

Length (mm) L
597
Width (mm) W
597
Height (mm) H
53
Weight (kg) gross/net
4.1 / 3.85

Packaging

Packaging dimensions (mm)
635 x 635 x 70
