Sense Line

Sense Line 120x600 White Linect 1160lm 3000K Ra>80 DALI-2

Article code
212691
EAN
7021982126918
Back to articlelist

Overview

Efficacy
116 lm/W
Lumen
1160lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • flickerfree
  • ip20
  • klasse_2
  • selv
  • ce

Tools

Downloads

Specification sheet 212691 Revit file - Generic Sense Line 120x600 - generic Revit file - Face Based Sense Line 120x600 - face based

See more

Mounting instruction Sense Line Dali_User Manual Eulumdat file (ldt) 7021982126918_Sense Line 120x600 White Linect 1160lm 3000K Ra80 DALI Dialux file (uld) 7021982126918_Sense Line 120x600 White Linect 1160lm 3000K Ra80 DALI Relux file (rolf) 7021982126918_Sense_Line_120x600_White_Linect_1160lm_3000K_Ra_80_DALI EPD NEPD-9256-8846_Sense-Line-120x600-DALI CE Declaration Sense Line

How to specify

Text copied to clipboard

Sense Line 120x600 White Linect 1160lm 3000K Ra>80 DALI-2, Article code: 212691, EAN: 7021982126918, IP20, Electrical: System wattage: 10W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 31, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 1160lm, Efficacy: 116 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 84°, UGR: UGR<19, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class II SELV, IP Class: IP20, Energy and approvals: Contains light source of energy class: B, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Indoor, Module: 120x600, Connection: 5 pol Linect / screwless terminal block, Dimensions: Length (mm) L: 595, Width (mm) W: 118, Height (mm) H: 35, Ceiling void depth (mm): 35, Weight (kg) gross/net: 1.1 / 0.9, Packaging: Packaging dimensions (mm): 750 x 135 x 54

Electrical

System wattage
10W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 31, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Light source included
Yes
Luminous flux
1160lm
Efficacy
116 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000

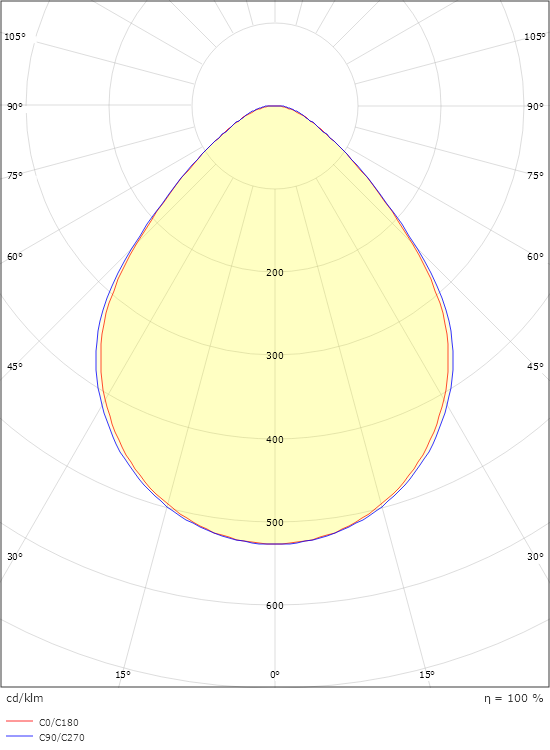

Light distribution
Direct
Optic
Opalprism
Beam angle
84°
UGR
UGR<19

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class II SELV
IP Class
IP20

Energy and approvals

Contains light source of energy class
B
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Indoor
Module
120x600
Connection
5 pol Linect / screwless terminal block

Dimensions

Length (mm) L
595
Width (mm) W
118
Height (mm) H
35
Ceiling void depth (mm)
35
Weight (kg) gross/net
1.1 / 0.9

Packaging

Packaging dimensions (mm)
750 x 135 x 54
