Sense Pro 300x1200

Sense Pro 300x1200 White 4490lm 4000K Ra>80

Article code
212677+820492
EAN
7021982126772+7021988204924
Back to articlelist

Overview

Efficacy
140 lm/W
Lumen
4490lm
IP Class
IP40/IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
  • dipswitch
  • ik10
  • ip20ip40
  • klasse_3
  • ce
  • enec

Tools

Downloads

Specification sheet 212677+820492 Eulumdat file (ldt) 70219821267727021988204924_Sense Pro 300x1200 White 4490lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 70219821267727021988204924_Sense Pro 300x1200 White 4490lm 4000K Ra80 Trailing edge dimming

See more

Relux file (rolf) 70219821267727021988204924_Sense_Pro_300x1200_White_4490lm_4000K_Ra_80_Trailing_edge_dimming Mounting instruction 230613_Sense 300x1200 Ra90_User manual Mounting instruction Sense 300x1200_User manual CE Declaration Sense Pro 300x1200

How to specify

Text copied to clipboard

Sense Pro 300x1200 White 4490lm 4000K Ra>80, Article code: 212677+820492, EAN: 7021982126772+7021988204924, IP40/IP20, IK10, Electrical: System wattage: 32W, Max. luminaires per circuit breaker: B10: 18, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 4490lm, Efficacy: 140 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 110°, UGR: UGR<19, Photobiological safety: RG 0, Protection: Luminaire class: Class III, IK Class: IK10, IP Class: IP40/IP20, Energy and approvals: Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White smooth (Ral 9016 gloss 30), Optics: Acrylic (PMMA), Mounting/Connection: Module: Exposed T-carrier 15/24mm, Connection: Quick connector, Dimensions: Length (mm) L: 1197, Width (mm) W: 297, Height (mm) H: 11, Weight (kg) gross/net: 4.05 / 3.5, Packaging: Packaging dimensions (mm): 1230 x 320 x 33

Electrical

System wattage
32W
Max. luminaires per circuit breaker
B10: 18, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
4490lm
Efficacy
140 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

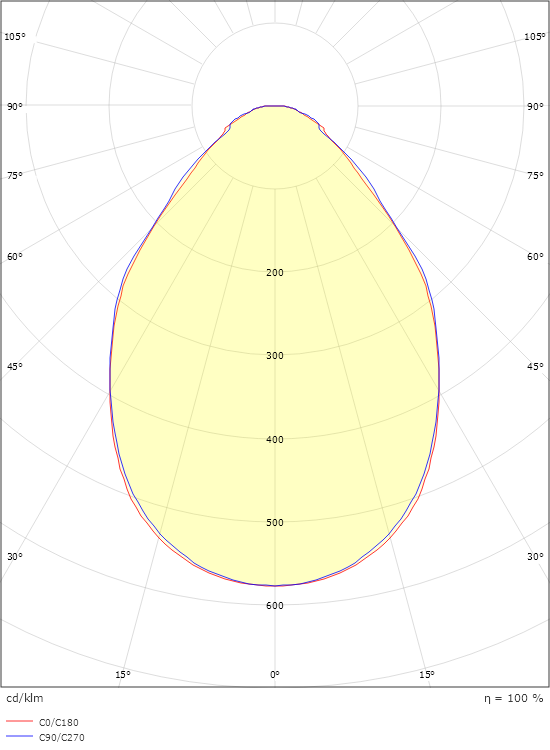

Light distribution
Direct
Optic
Opalprism
Beam angle
110°

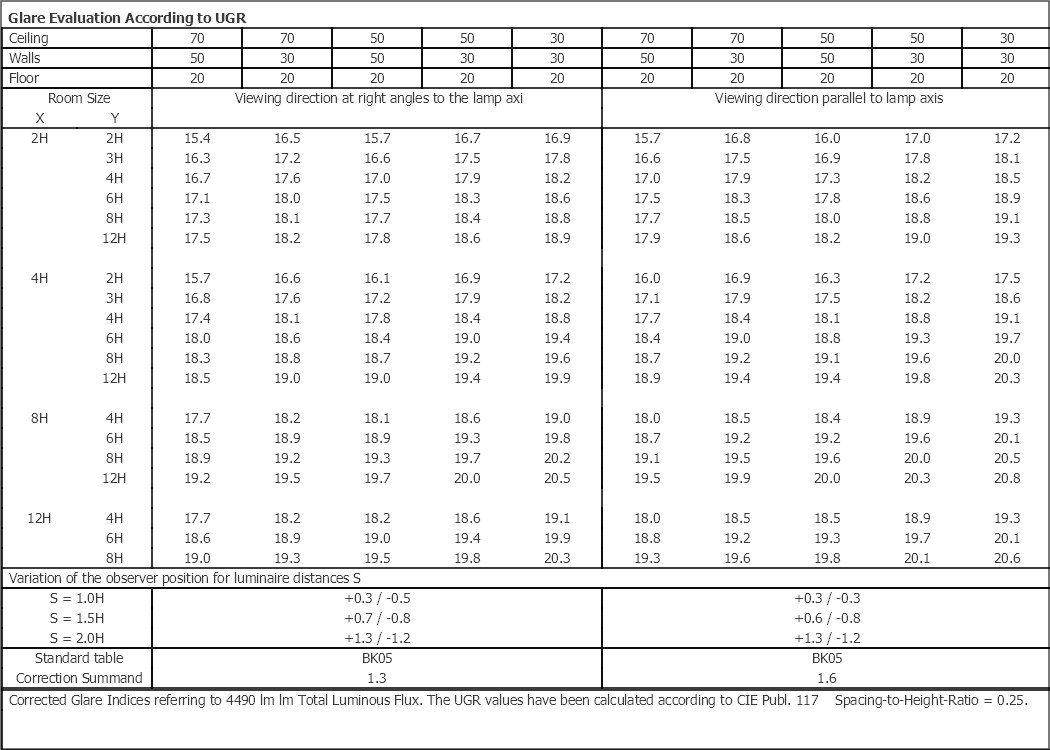

UGR
UGR<19
Photobiological safety
RG 0

Protection

Luminaire class
Class III
IK Class
IK10
IP Class
IP40/IP20

Energy and approvals

Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White smooth (Ral 9016 gloss 30)
Optics
Acrylic (PMMA)

Mounting/Connection

Module
Exposed T-carrier 15/24mm
Connection
Quick connector

Dimensions

Length (mm) L
1197
Width (mm) W
297
Height (mm) H
11
Weight (kg) gross/net
4.05 / 3.5

Packaging

Packaging dimensions (mm)
1230 x 320 x 33
