Sense Pro 300x1200

Sense Pro 300x1200 White 2940lm 4000K Ra>90 Trailing edge

Article code
212727+820490
EAN
7021982127274+7021988204900
Back to articlelist

Overview

Wattage
24W
Efficacy
123 lm/W
Lumen
2940lm
IP Class
IP40/IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L80/B20>
Mounting
Recessed, Indoor
  • indoor
  • dipswitch
  • ik10
  • ip20ip40
  • klasse_3
  • ce
  • enec

Tools

Downloads

Specification sheet 212727+820490 Mounting instruction Sense Pro 300x1200 3000lm Driver CE Declaration Sense Pro 300x1200 Relux file (rolf) 702198212727407021988204900_Sense_Pro_300x1200_White_2940lm_4000K_Ra_90_Trailing_edge Eulumdat file (ldt) 702198212727407021988204900_Sense Pro 300x1200 White 2940lm 4000K Ra90 Trailing edge Dialux file (uld) 702198212727407021988204900_Sense Pro 300x1200 White 2940lm 4000K Ra90 Trailing edge

How to specify

Text copied to clipboard

Sense Pro 300x1200 White 2940lm 4000K Ra>90 Trailing edge, Article code: 212727+820490, EAN: 7021982127274+7021988204900, IP40/IP20, IK10, Electrical: Wattage: 24W, System wattage: 24W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 18, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 2940lm, Efficacy: 123 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, UGR: UGR<19, Visible flicker (PstLM): 0,08, Stroboscopic flicker (SVM): 0,03, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class III, IK Class: IK10, IP Class: IP40/IP20, Materials and finish: Housing: Aluminium, Colour: White smooth (Ral 9016 gloss 30), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Indoor, Module: Exposed T-carrier 15/24mm, Connection: Quick connector, Dimensions: Length (mm) L: 1197, Width (mm) W: 297, Height (mm) H: 11, Weight (kg) gross/net: 4.05 / 3.05, Packaging: Packaging dimensions (mm): 1230 x 320 x 33

Electrical

Wattage
24W
System wattage
24W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 18, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
2940lm
Efficacy
123 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000
Light distribution
Direct
Optic
Opalprism
UGR

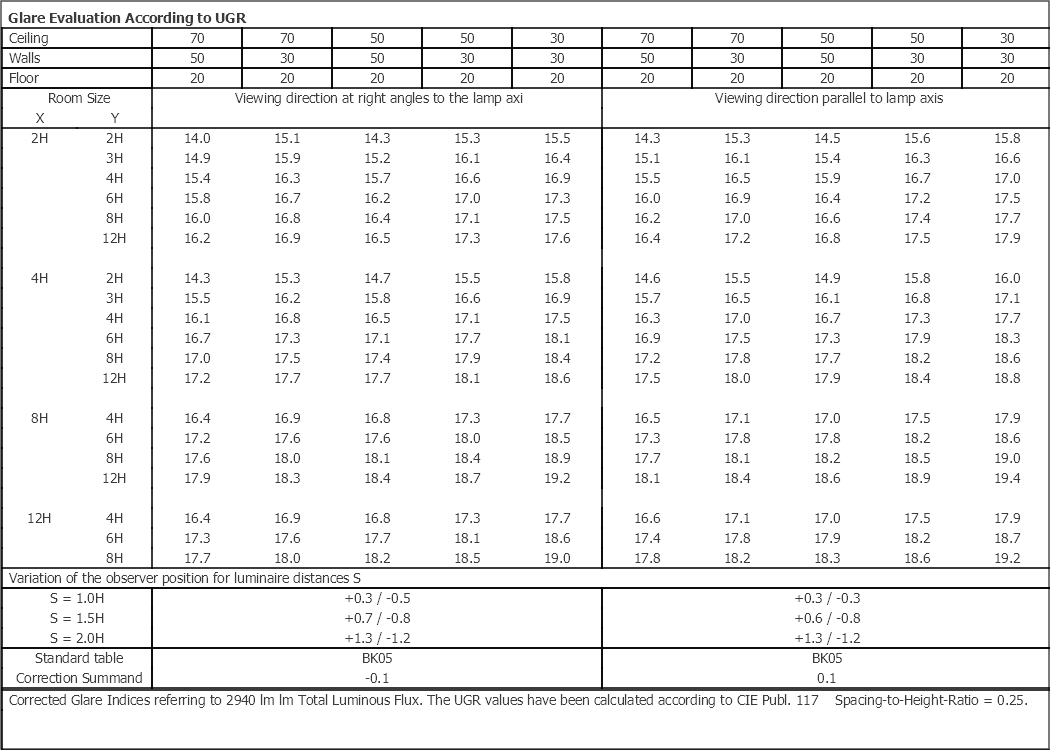

UGR<19
Visible flicker (PstLM)
0,08
Stroboscopic flicker (SVM)
0,03

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class III
IK Class
IK10
IP Class
IP40/IP20

Materials and finish

Housing
Aluminium
Colour
White smooth (Ral 9016 gloss 30)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Indoor
Module
Exposed T-carrier 15/24mm
Connection
Quick connector

Dimensions

Length (mm) L
1197
Width (mm) W
297
Height (mm) H
11
Weight (kg) gross/net
4.05 / 3.05

Packaging

Packaging dimensions (mm)
1230 x 320 x 33
