Sense Pro 300x1200

Sense Pro 300x1200 White 4000K Ra>80

Article code
212677
EAN
7021982126772
Replaces
212168
Back to articlelist

Overview

IP Class
IP40/IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
    5 years Warranty
  • ik06
  • ip20ip40
  • klasse_3
  • ce
  • enec

Tools

Downloads

Specification sheet 212677 Mounting instruction 230613_Sense 300x1200 Ra90_User manual Mounting instruction Sense 300x1200_User manual EPD NEPD-14077-14427_Sense-Pro-300x1200 CE Declaration Sense Pro 300x1200 Relux file (rolf) 7021982126772_Sense_Pro_300x1200_White_3560lm_4000K_Ra_80_@700mA Relux file (rolf) 7021982126772_Sense_Pro_300x1200_White_4490lm_4000K_Ra_80_@900mA Eulumdat file (ldt) 7021982126772_Sense Pro 300x1200 White 3560lm 4000K Ra80 @700mA Eulumdat file (ldt) 7021982126772_Sense Pro 300x1200 White 4490lm 4000K Ra80 @900mA Dialux file (uld) 7021982126772_Sense Pro 300x1200 White 3560lm 4000K Ra80 @700mA Dialux file (uld) 7021982126772_Sense Pro 300x1200 White 4490lm 4000K Ra80 @900mA Revit file - Generic Sense Pro 300x1200 - generic Revit file - Face Based Sense Pro 300x1200 - face based

How to specify

Text copied to clipboard

Sense Pro 300x1200 White 4000K Ra>80, Article code: 212677, EAN: 7021982126772, IP40/IP20, IK06, Light technic: Type of light source: LED, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 110°, Photobiological safety: RG 0, Protection: Luminaire class: Class III, IK Class: IK06, IP Class: IP40/IP20, Energy and approvals: Contains light source of energy class: C, Materials and finish: Housing: Aluminium, Colour: White smooth (Ral 9016 gloss 30), Optics: Acrylic (PMMA), Mounting/Connection: Module: Exposed T-carrier 15/24mm, Connection: Quick connector, Dimensions: Length (mm) L: 1197, Width (mm) W: 297, Height (mm) H: 11, Weight (kg) gross/net: 4.05 / 3.05, Packaging: Packaging dimensions (mm): 1230 x 320 x 33

Light technic

Type of light source
LED
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

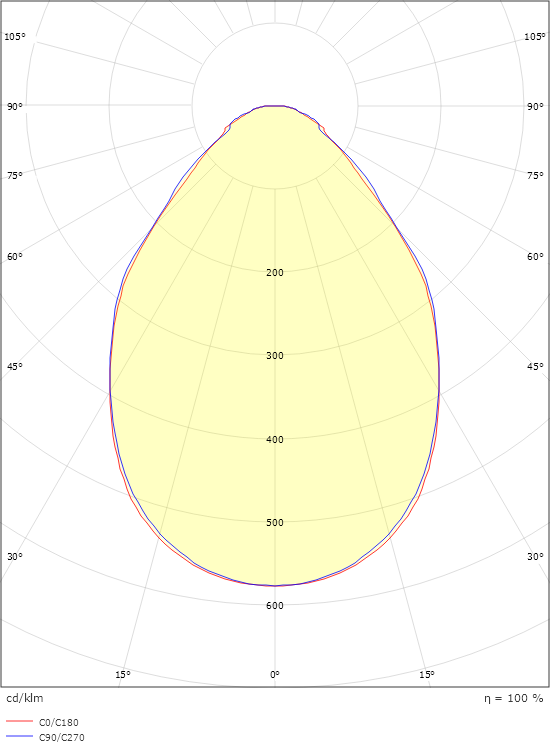

Light distribution
Direct
Optic
Opalprism
Beam angle
110°
Photobiological safety
RG 0

Protection

Luminaire class
Class III
IK Class
IK06
IP Class
IP40/IP20

Energy and approvals

Contains light source of energy class
C

Materials and finish

Housing
Aluminium
Colour
White smooth (Ral 9016 gloss 30)
Optics
Acrylic (PMMA)

Mounting/Connection

Module
Exposed T-carrier 15/24mm
Connection
Quick connector

Dimensions

Length (mm) L
1197
Width (mm) W
297
Height (mm) H
11
Weight (kg) gross/net
4.05 / 3.05

Packaging

Packaging dimensions (mm)
1230 x 320 x 33
