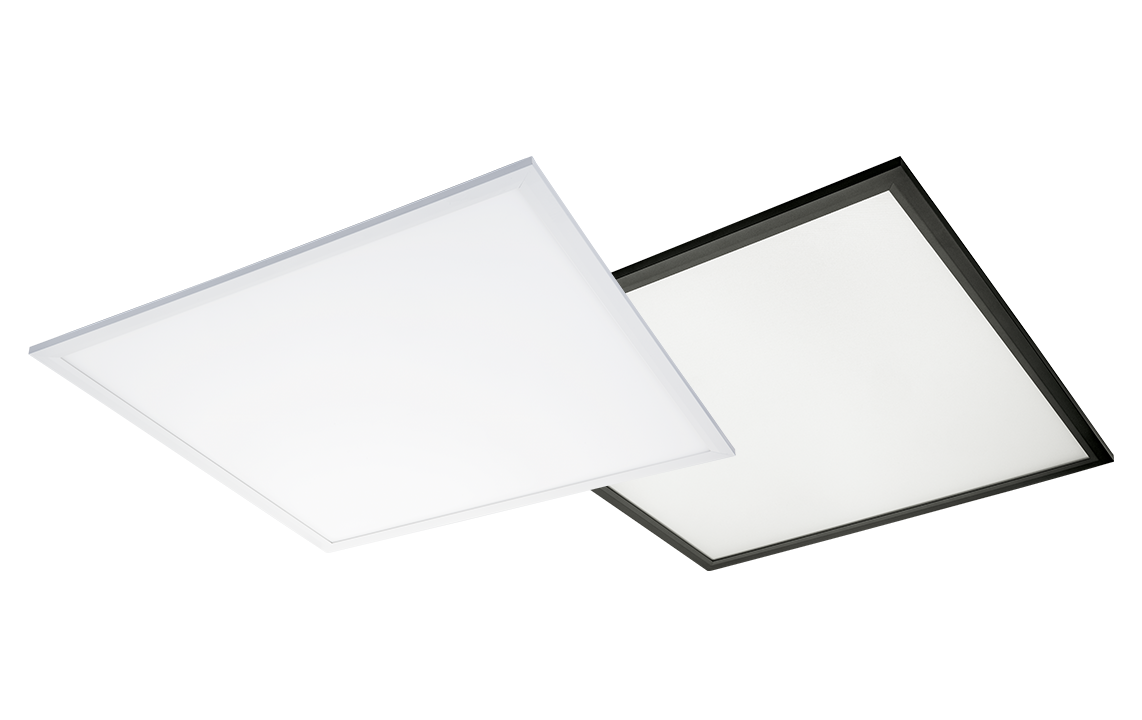

Sense Pro 600x600

The Sense panel is well designed and only 10 mm high. A narrow frame ensures attractive look and high efficiency.Sense can be mounted to visible T-rail ceilings without accessories and to concealed T-rail ceilings, DAMPA clip-in ceilings, Troldtekt acoustic panels and Gypsum, and surface-mounted using accessories. This makes Sense an all-round quality panel that can be used everywhere. Sense is available in several lumen packages, phase-dimming or DALI depending on which driver kit is selected (accessory).
    5 years Warranty

Article list

Filters

Color

Colour temperature

IP Class

Colour rendering (Ra)

Filters

Sorry, we couldn’t find what you are looking for.

Drivers

Others Tools
25W DALI-2 / Push Dim IP20
  • L124 x W79 x H22,
  • 3000lm,
  • 5 pol Linect / screwless terminal block
32W DALI-2 / Push Dim IP20
  • L138 x W67 x H29,
  • 4000lm,
  • 5 pol Linect / screwless terminal block
38W DALI-2 / Push Dim IP20
  • L138 x W67 x H29,
  • 5000lm,
  • 5 pol Linect / screwless terminal block
25W Trailing edge IP20
  • L108 x W53 x H30,
  • 3000lm,
  • Cable 2m,
  • Includes cable and plug
32W Trailing edge IP20
  • L108 x W67 x H22,
  • 4000lm,
  • Cable 2m,
  • Includes cable and plug
38W Trailing edge IP20
  • L108 x W67 x H22,
  • 5000lm,
  • Cable 2m,
  • Includes cable and plug
25W Trailing edge / Linect IP20
  • L108 x W53 x H30,
  • 3000lm,
  • 3 pol Linect / screwless terminal block
32W Trailing edge / Linect IP20
  • L108 x W67 x H22,
  • 4000lm,
  • 3 pol Linect / screwless terminal block
38W Trailing edge / Linect IP20
  • L108 x W67 x H22,
  • 5000lm,
  • 3 pol Linect / screwless terminal block

Sorry, we couldn’t find what you are looking for.

Others Tools
3000K IP40/IP20 Ra>80
  • L597 x W597 x H11,
  • Quick connector
3000K IP40/IP20 Ra>80
  • L597 x W597 x H11,
  • Quick connector
3000K IP44/IP20 Ra>90
  • L597 x W597 x H11,
  • Quick connector
4000K IP40/IP20 Ra>80
  • L597 x W597 x H11,
  • Quick connector
4000K IP40/IP20 Ra>80
  • L597 x W597 x H11,
  • Quick connector
4000K IP44/IP20 Ra>90
  • L597 x W597 x H11,
  • Quick connector

Sorry, we couldn’t find what you are looking for.

Others Tools
3000K 25W 3240lm DALI-2 / Push Dim IP40/IP20 Ra>80
  • 130 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 32W 4090lm DALI-2 / Push Dim IP40/IP20 Ra>80
  • 128 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 38W 4700lm DALI-2 / Push Dim IP40/IP20 Ra>80
  • 124 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 25W 3240lm Trailing edge IP40/IP20 Ra>80
  • 130 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 32W 4090lm Trailing edge IP40/IP20 Ra>80
  • 128 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 38W 4700lm Trailing edge IP40/IP20 Ra>80
  • 124 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 25W 3240lm Trailing edge / Linect IP40/IP20 Ra>80
  • 130 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 32W 4090lm Trailing edge / Linect IP40/IP20 Ra>80
  • 128 lm/W,
  • L597 x W597 x H11,
  • 3 pol Linect / screwless terminal block
3000K 25W 3440lm DALI-2 / Push Dim IP40/IP20 Ra>80
  • 138 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 32W 4340lm DALI-2 / Push Dim IP40/IP20 Ra>80
  • 136 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 38W 4990lm DALI-2 / Push Dim IP40/IP20 Ra>80
  • 131 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 25W 2870lm DALI-2 / Push Dim IP44/IP20 Ra>90
  • 115 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 32W 3640lm DALI-2 / Push Dim IP44/IP20 Ra>90
  • 114 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 38W 4240lm DALI-2 / Push Dim IP44/IP20 Ra>90
  • 112 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 25W 3440lm Trailing edge IP40/IP20 Ra>80
  • 138 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 25W 3440lm Trailing edge IP40/IP20 Ra>80
  • 138 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 32W 4340lm Trailing edge IP40/IP20 Ra>80
  • 136 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 38W 4990lm Trailing edge IP40/IP20 Ra>80
  • 131 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 25W 2870lm Trailing edge IP44/IP20 Ra>90
  • 115 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 32W 3640lm Trailing edge IP44/IP20 Ra>90
  • 114 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 38W 4240lm Trailing edge IP44/IP20 Ra>90
  • 112 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 32W 4340lm Trailing edge / Linect IP40/IP20 Ra>80
  • 136 lm/W,
  • L597 x W597 x H11,
  • 4000lm,
  • 3 pol Linect / screwless terminal block
3000K 38W 4990lm Trailing edge / Linect IP40/IP20 Ra>80
  • 131 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 25W 2870lm Trailing edge / Linect IP44/IP20 Ra>90
  • 115 lm/W,
  • L597 x W597 x H11,
  • Quick connector
3000K 32W 3640lm Trailing edge / Linect IP44/IP20 Ra>90
  • 114 lm/W,
  • L597 x W597 x H11,
  • 3 pol Linect / screwless terminal block
3000K 38W 4240lm Trailing edge / Linect IP44/IP20 Ra>90
  • 112 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 25W 3430lm DALI-2 / Push Dim IP40/IP20 Ra>80
  • 137 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 32W 4310lm DALI-2 / Push Dim IP40/IP20 Ra>80
  • 135 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 38W 4990lm DALI-2 / Push Dim IP40/IP20 Ra>80
  • 131 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 25W 3430lm Trailing edge IP40/IP20 Ra>80
  • 137 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 32W 4310lm Trailing edge IP40/IP20 Ra>80
  • 135 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 38W 4990lm Trailing edge IP40/IP20 Ra>80
  • 131 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 25W 3430lm Trailing edge / Linect IP40/IP20 Ra>80
  • 137 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 32W 4310lm Trailing edge / Linect IP40/IP20 Ra>80
  • 135 lm/W,
  • L597 x W597 x H11,
  • 3 pol Linect / screwless terminal block
4000K 38W 4990lm Trailing edge / Linect IP40/IP20 Ra>80
  • 131 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 25W 3670lm DALI-2 / Push Dim IP40/IP20 Ra>80
  • 147 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 32W 4610lm DALI-2 / Push Dim IP40/IP20 Ra>80
  • 144 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 38W 5340lm DALI-2 / Push Dim IP40/IP20 Ra>80
  • 141 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 25W 3090lm DALI-2 / Push Dim IP44/IP20 Ra>90
  • 124 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 32W 3880lm DALI-2 / Push Dim IP44/IP20 Ra>90
  • 121 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 38W 4520lm DALI-2 / Push Dim IP44/IP20 Ra>90
  • 119 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 25W 3670lm Trailing edge IP40/IP20 Ra>80
  • 147 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 32W 4610lm Trailing edge IP40/IP20 Ra>80
  • 144 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 38W 5340lm Trailing edge IP40/IP20 Ra>80
  • 141 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 25W 3090lm Trailing edge IP44/IP20 Ra>90
  • 124 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 32W 3880lm Trailing edge IP44/IP20 Ra>90
  • 121 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 38W 4520lm Trailing edge IP44/IP20 Ra>90
  • 119 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 25W 3670lm Trailing edge / Linect IP40/IP20 Ra>80
  • 147 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 32W 4610lm Trailing edge / Linect IP40/IP20 Ra>80
  • 144 lm/W,
  • L597 x W597 x H11,
  • 3 pol Linect / screwless terminal block
4000K 38W 5340lm Trailing edge / Linect IP40/IP20 Ra>80
  • 141 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 25W 3090lm Trailing edge / Linect IP44/IP20 Ra>90
  • 124 lm/W,
  • L597 x W597 x H11,
  • Quick connector
4000K 32W 3880lm Trailing edge / Linect IP44/IP20 Ra>80
  • 121 lm/W,
  • L597 x W597 x H11,
  • 3 pol Linect / screwless terminal block
4000K 38W 4520lm Trailing edge / Linect IP44/IP20 Ra>90
  • 119 lm/W,
  • L597 x W597 x H11,
  • Quick connector
38W 4700lm Trailing edge / Linect IP40/IP20
  • 124 lm/W,
  • L597 x W597 x H11,
  • Quick connector

Sorry, we couldn’t find what you are looking for.

Accessories

Image Article code Description Dimensions Tools
Sense 600x600 Black Surface frame L604 x W604 x H48
Sense 600x600 White Surface frame L604 x W604 x H48
Sense Decor Sky White 600x600 L597 x W597 x H79
Sense Decor Soft White 600x600 L595 x W595 x H17
Sensor Dim Box White 200VA 200VA L220 x W75 x H34
625x625 White Plaster board/Troldtekt Recessed frame L625 x W625 x H55
Sense 600x600 White Plaster board/Troldtekt Recessed frame L640 x W640 x H40
Emergencybox Driver DALI / EM Self test, DALI Emergency 3H L270 x W75 x H35
Sense 2m Wire kit L2000
Sense 600x600 Concealed grid Bracket L44 x W65 x H18
Sense 600x600 Asymmetric Bracket L44 x W5 x H2.5
Emergency battery 3 Hours 3.0Ah - Model No: B093 L137 x W27 x H27
Emergencybox On-Off/Trailing edge / EM Self test, Emergency 3 hours L270 x W75 x H35
Emergencybox Driver DALI / EM DALI/Self test, Emergency 3 hours L270 x W75 x H35
