Sense Pro 600x600

Sense Pro 600x600 Black 4990lm 4000K Ra>80 DALI-2 / Push Dim

Article code
820407+212679
EAN
7021982126796+7021988204078
SG code
212679+820407
Back to articlelist

Overview

Efficacy
131 lm/W
Lumen
4990lm
IP Class
IP40/IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
  • el
  • dipswitch
  • ik10
  • ip20ip40
  • klasse_3
  • ce
  • enec

Tools

Downloads

Specification sheet 212679+820407 Mounting instruction Sense 5000lm Driver Kit DALI_user manual Eulumdat file (ldt) 70219821267967021988204078_Sense Pro 600x600 Black 4990lm 4000K Ra80 DALI Push Dim

See more

Dialux file (uld) 70219821267967021988204078_Sense Pro 600x600 Black 4990lm 4000K Ra80 DALI Push Dim Relux file (rolf) 70219821267967021988204078_Sense_Pro_600x600_Black_4990lm_4000K_Ra_80_DALI___Push_Dim CE Declaration Sense Pro

How to specify

Text copied to clipboard

Sense Pro 600x600 Black 4990lm 4000K Ra>80 DALI-2 / Push Dim, Article code: 212679+820407, EAN: 7021982126796+7021988204078, IP40/IP20, IK10, Electrical: System wattage: 38W, Max. luminaires per circuit breaker: B10: 35, B16: 55, C10: 55, C16: 91, Light technic: Type of light source: LED, Luminous flux: 4990lm, Efficacy: 131 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 110°, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class III, IK Class: IK10, IP Class: IP40/IP20, Energy and approvals: Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black, Optics: Acrylic (PMMA), Mounting/Connection: Module: Exposed T-carrier 15/24mm, Connection: Quick connector, Dimensions: Length (mm) L: 597, Width (mm) W: 597, Height (mm) H: 11, Weight (kg) gross/net: 3.05 / 2.55, Packaging: Packaging dimensions (mm): 628 x 630 x 33

Electrical

System wattage
38W
Max. luminaires per circuit breaker
B10: 35, B16: 55, C10: 55, C16: 91

Light technic

Type of light source
LED
Luminous flux
4990lm
Efficacy
131 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

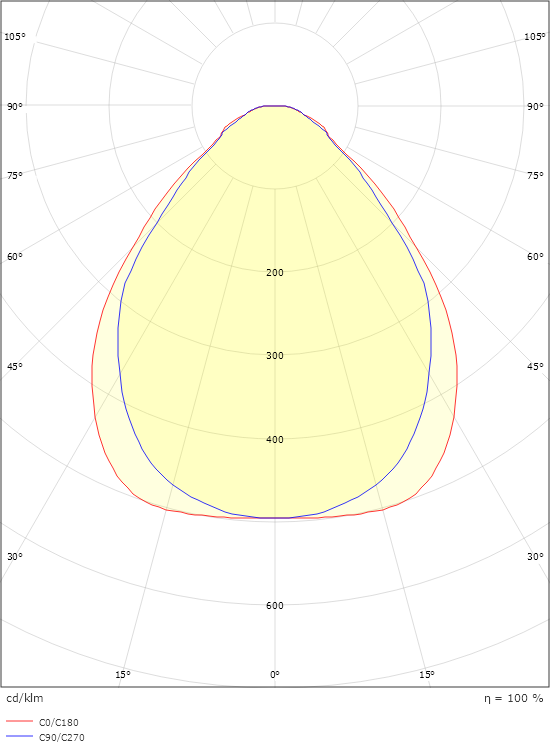

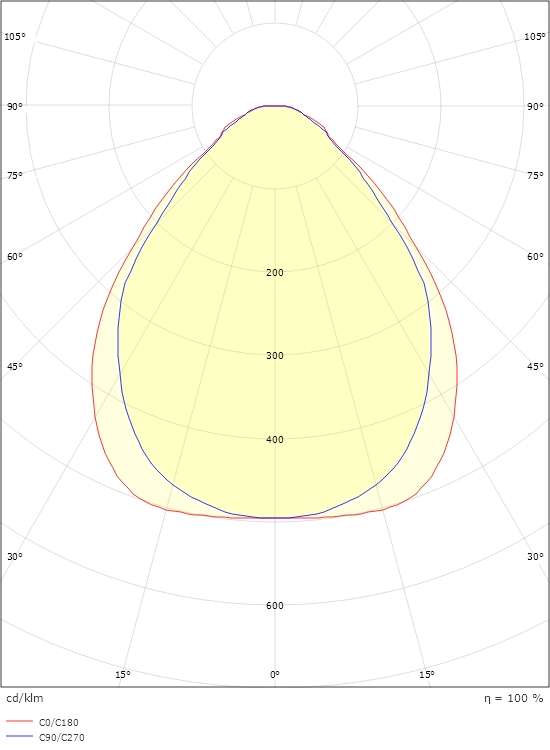

Light distribution
Direct
Optic
Opalprism
Beam angle
110°

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class III
IK Class
IK10
IP Class
IP40/IP20

Energy and approvals

Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black
Optics
Acrylic (PMMA)

Mounting/Connection

Module
Exposed T-carrier 15/24mm
Connection
Quick connector

Dimensions

Length (mm) L
597
Width (mm) W
597
Height (mm) H
11
Weight (kg) gross/net
3.05 / 2.55

Packaging

Packaging dimensions (mm)
628 x 630 x 33
