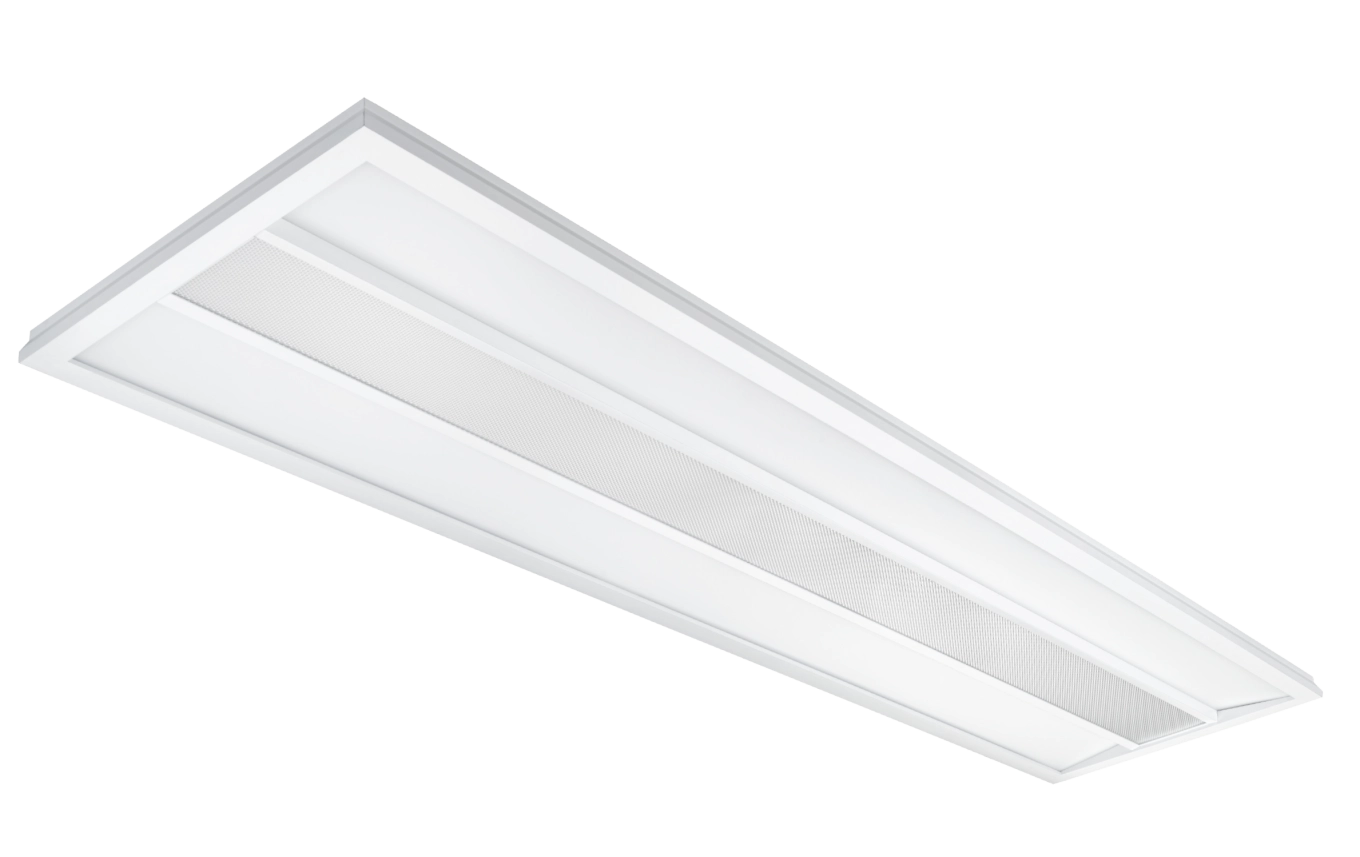

Sense Velios 300x1200
Sense Velios 300x1200 White 3310lm 3000K Ra>80 Trailing edge
- Article code
- 212925
- EAN
- 7021982129254
Overview
- Efficacy
- 144 lm/W
- Lumen
- 3310lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L84/B50>
- Mounting
- Recessed, Indoor
Electrical
- System wattage
- 23W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
Light technic
- Type of light source
- LED
- Luminous flux
- 3310lm
- Efficacy
- 144 lm/W
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L84/B50>100,000
- Lifetime
- L91>50,000

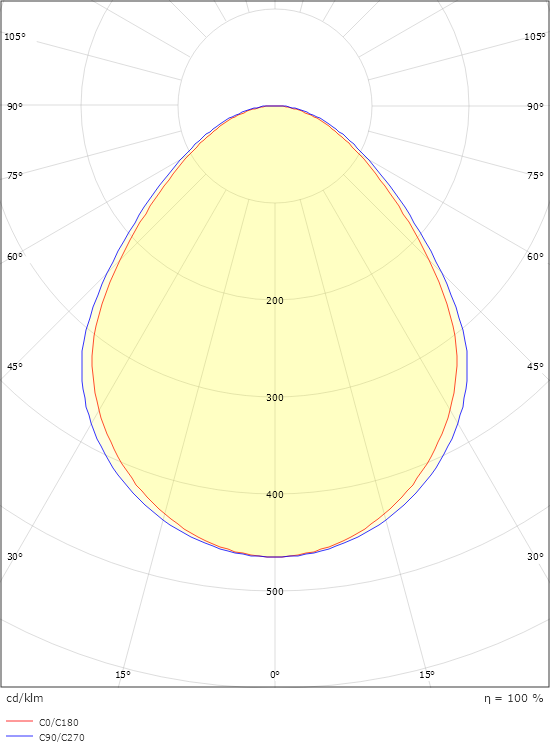

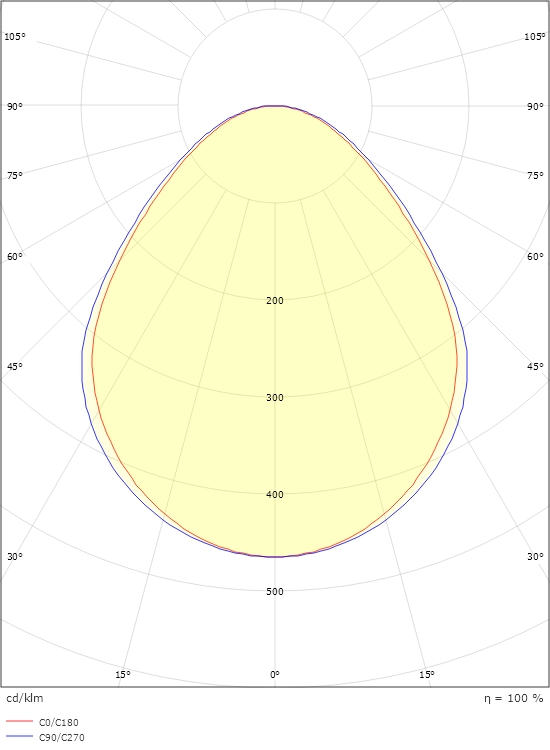

- Light distribution
- Direct
- Optic
- Prismatic/Opal Optic

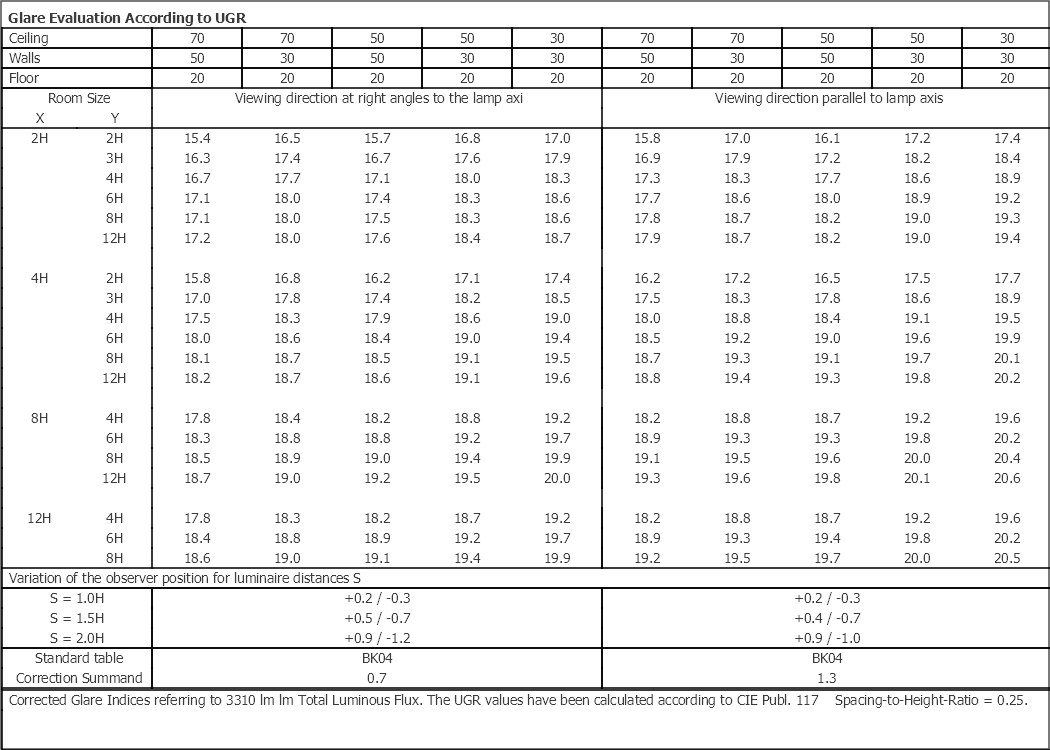

- UGR
- UGR<19
- Visible flicker (PstLM)
- 0,07
- Stroboscopic flicker (SVM)
- 0,04
Control/Dimming
- Type
- Trailing edge
Protection
- Luminaire class
- Class II
- IP Class
- IP20
Energy and approvals
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel
- Optics
- Acrylic (PMMA)
Mounting/Connection
- Mounting
- Recessed, Indoor
- Module
- 300x1200 Exposed T-carrier 15/24mm
- Connection
- 3 pol Linect / screwless terminal block

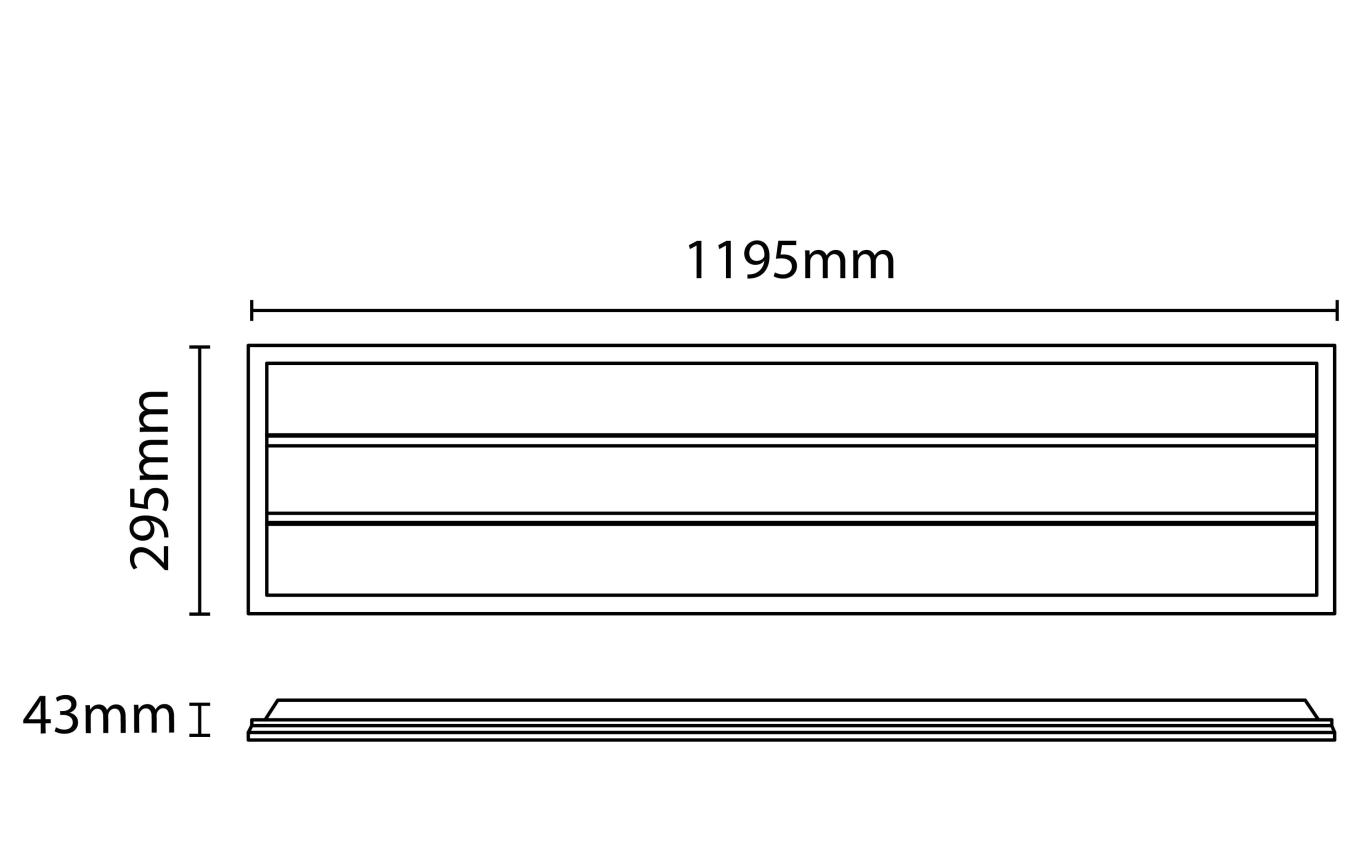

Dimensions
- Length (mm) L
- 1195
- Width (mm) W
- 295
- Height (mm) H
- 43
- Weight (kg) gross/net
- 3.25 / 2.65
Packaging
- Packaging dimensions (mm)
- 1315 x 325 x 62
