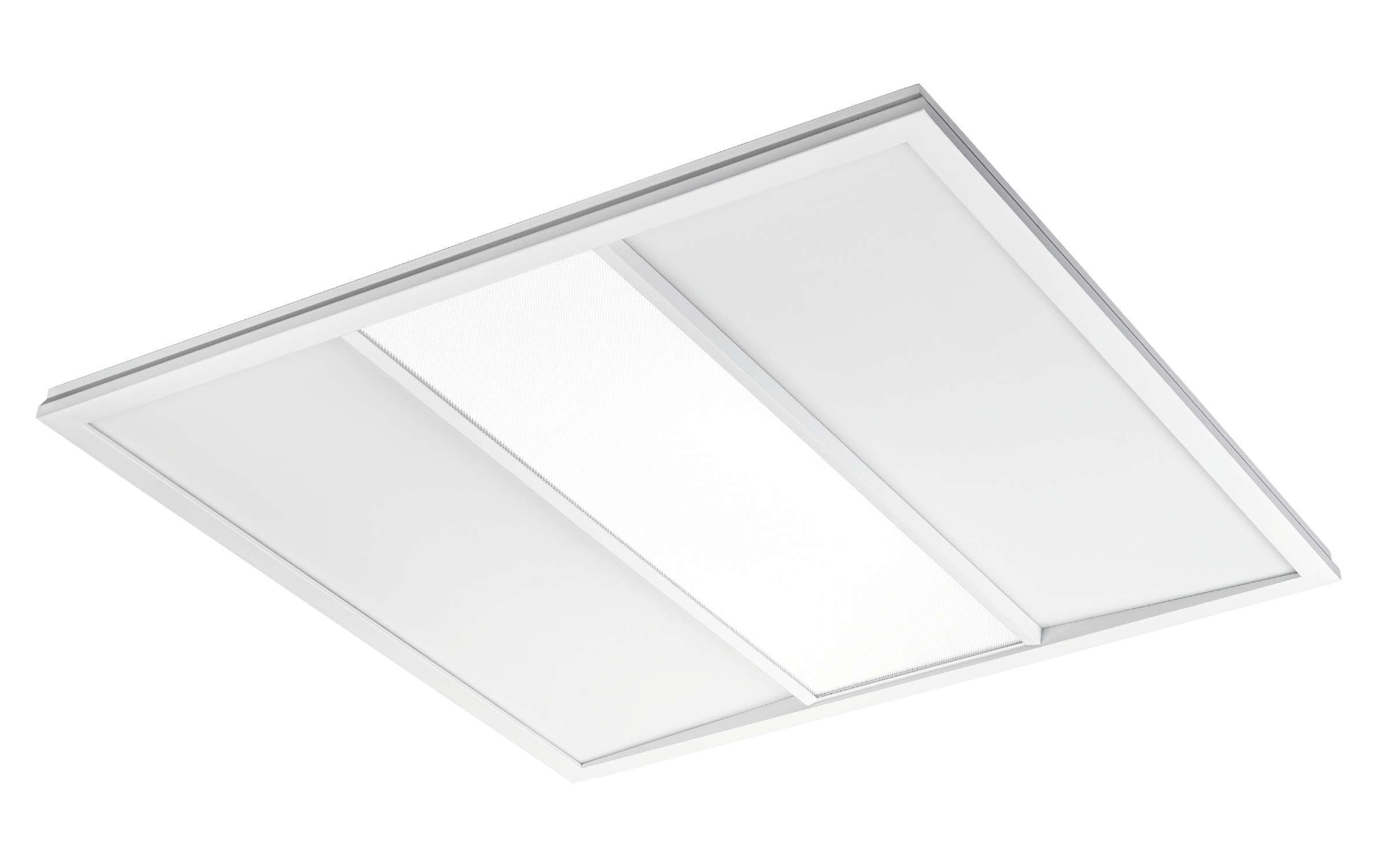

Sense Velios 600x600

Sense Velios 600x600 White 4420lm 3000K Ra>90 DALI-2

Article code
212927
EAN
7021982129278
Back to articlelist

Overview

Efficacy
143 lm/W
Lumen
4420lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L84/B50>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • el
  • dipswitch
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 212927 Mounting instruction Sense Velios User Manual EPD NEPD-14716-15394_Sense-Velios-600X600-Dali CE Declaration Sense Velios Relux file (rolf) 7021982129278_Sense_Velios_600x600_White_4420lm_3000K_Ra_90_DALI-2 Eulumdat file (ldt) 7021982129278_Sense Velios 600x600 White 4420lm 3000K Ra90 DALI-2 Dialux file (uld) 7021982129278_Sense Velios 600x600 White 4420lm 3000K Ra90 DALI-2 Revit file - Generic Sense Velios 600x600 - generic Revit file - Face Based Sense Velios 600x600 - face based

How to specify

Text copied to clipboard

Sense Velios 600x600 White 4420lm 3000K Ra>90 DALI-2, Article code: 212927, EAN: 7021982129278, IP20, Electrical: System wattage: 31W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Leakage current (mA): 0,2, Light technic: Type of light source: LED, Luminous flux: 4420lm, Efficacy: 143 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 3, Lifetime: L84/B50>100,000, Lifetime: L91>50,000, Light distribution: Direct, Optic: Prismatic/Opal Optic, UGR: UGR<19, Visible flicker (PstLM): 0,03, Stroboscopic flicker (SVM): 0,01, Photobiological safety: RG 0, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Indoor, Module: 600x600 Exposed T-carrier 15/24mm, Connection: 5 pol Linect / screwless terminal block, Dimensions: Length (mm) L: 595, Width (mm) W: 595, Height (mm) H: 43, Weight (kg) gross/net: 2.8 / 2.45, Packaging: Packaging dimensions (mm): 720 x 620 x 62

Electrical

System wattage
31W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85
Leakage current (mA)
0,2

Light technic

Type of light source
LED
Luminous flux
4420lm
Efficacy
143 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 3
Lifetime
L84/B50>100,000
Lifetime
L91>50,000

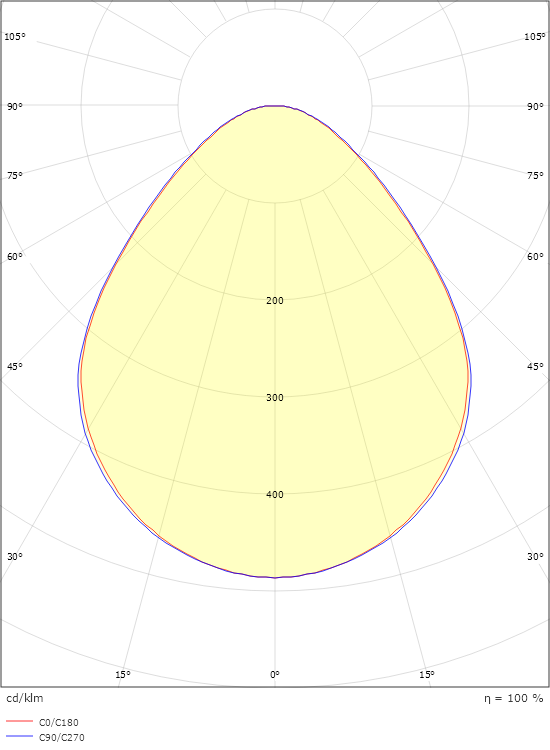

Light distribution
Direct
Optic
Prismatic/Opal Optic
UGR
UGR<19
Visible flicker (PstLM)
0,03
Stroboscopic flicker (SVM)
0,01
Photobiological safety
RG 0

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Indoor
Module
600x600 Exposed T-carrier 15/24mm
Connection
5 pol Linect / screwless terminal block

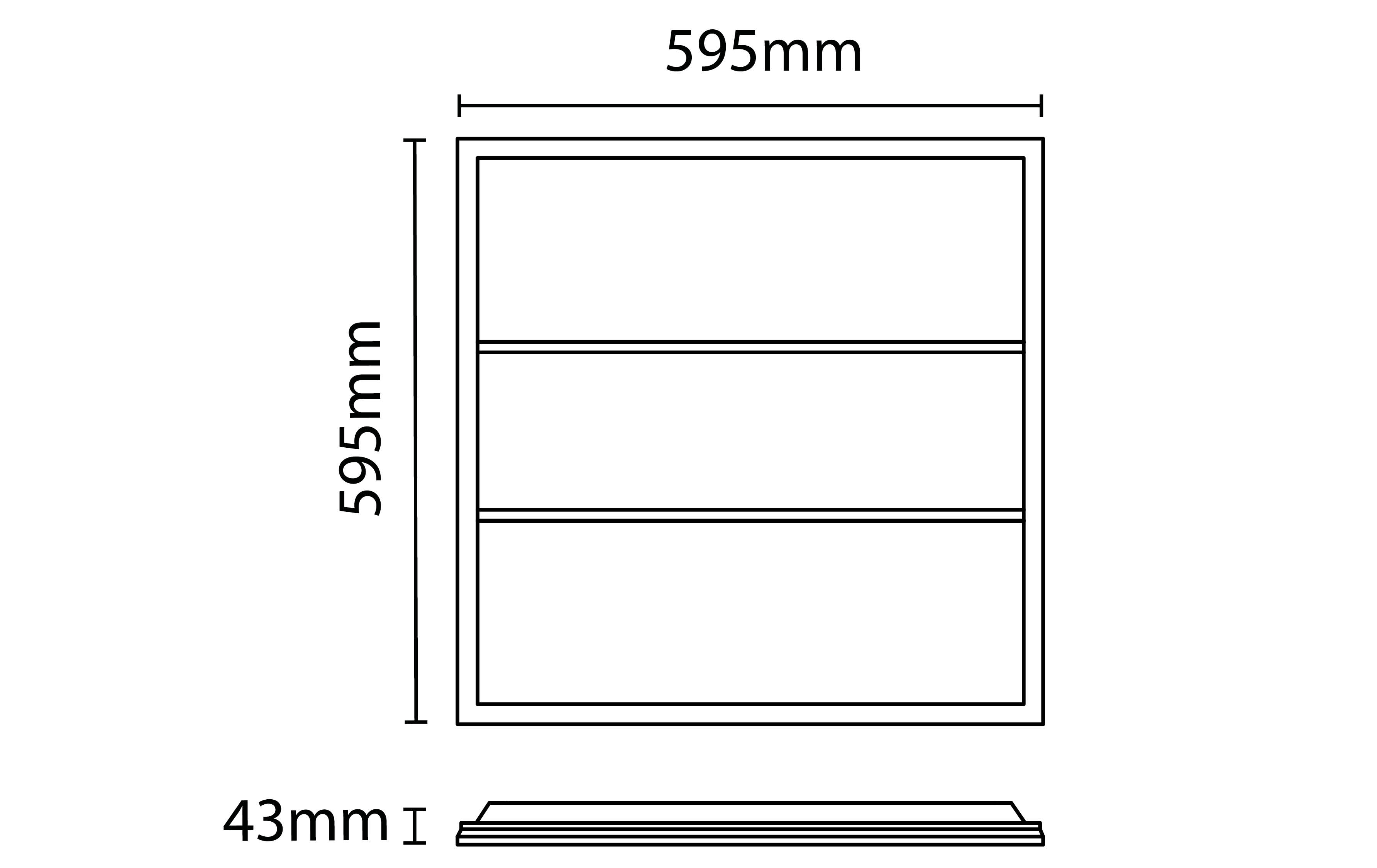

Dimensions

Length (mm) L
595
Width (mm) W
595
Height (mm) H
43
Weight (kg) gross/net
2.8 / 2.45

Packaging

Packaging dimensions (mm)
720 x 620 x 62
