Sense

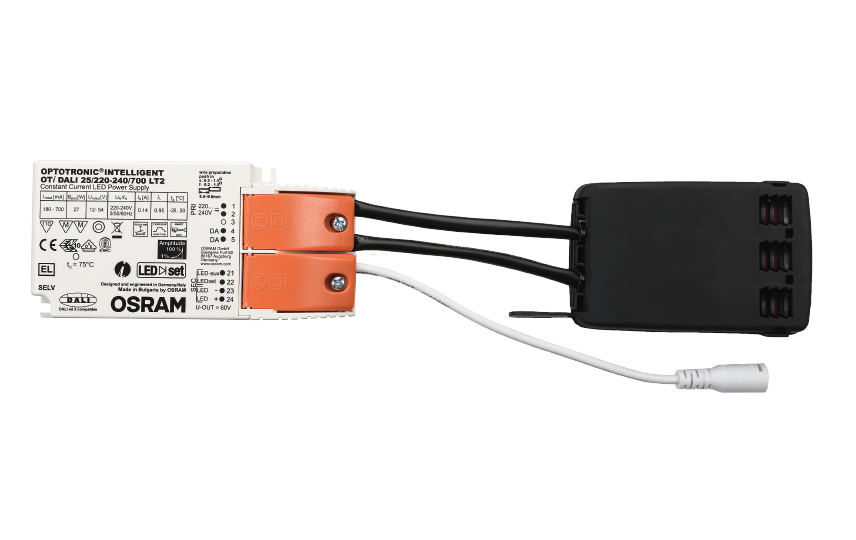

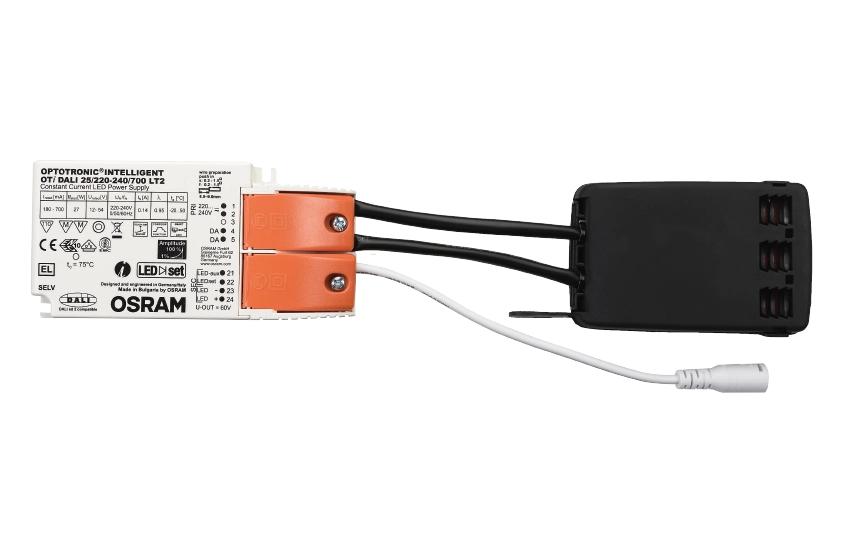

Sense Driver White 3000lm 25W 700mA DALI-2 / Push Dim

Article code
820083
EAN
7021988200834
Back to articlelist

Overview

Wattage
25W
IP Class
IP20
Lifetime
100,000
Mounting
Recessed, Indoor
  • indoor
  • el
  • dipswitch
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 820083 EPD NEPD-8687-8343_Sense-Driver-700mA-Dali Mounting instruction Sense_User manual

See more

CE Declaration Sense

How to specify

Text copied to clipboard

Sense Driver White 3000lm 25W 700mA DALI-2 / Push Dim, Article code: 820083, EAN: 7021988200834, IP20, Electrical: Wattage: 25W, System wattage: 25W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 31, B16: 50, C10: 53, C16: 85, Light technic: Lifetime: 100,000, Control/Dimming: Type: DALI-2 / Push Dim, Driver: 700mA, Protection: Luminaire class: Class II, IP Class: IP20, Energy and approvals: Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: C-, Materials and finish: Housing: Plastic, Colour: White, Mounting/Connection: Mounting: Recessed, Indoor, Connection: 5 pol Linect / screwless terminal block, Dimensions: Length (mm) L: 124, Width (mm) W: 79, Height (mm) H: 22, Weight (kg) gross/net: 0.262 / 0.218, Packaging: Packaging dimensions (mm): 310 x 35 x 100

Electrical

Wattage
25W
System wattage
25W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 31, B16: 50, C10: 53, C16: 85

Light technic

Lifetime
100,000

Control/Dimming

Type
DALI-2 / Push Dim
Driver
700mA

Protection

Luminaire class
Class II
IP Class
IP20

Energy and approvals

Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
C-

Materials and finish

Housing
Plastic
Colour
White

Mounting/Connection

Mounting
Recessed, Indoor
Connection
5 pol Linect / screwless terminal block

Dimensions

Length (mm) L
124
Width (mm) W
79
Height (mm) H
22
Weight (kg) gross/net
0.262 / 0.218

Packaging

Packaging dimensions (mm)
310 x 35 x 100
