Tripar LED Medico
Tripar Medico LED 600x600 White 2650lm 4000K Ra>80 DALI-2
- Article code
- 8246084015
- EAN
- 5703821173506
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Overview
- Efficacy
- 126 lm/W
- Lumen
- 2650lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B10>
- Mounting
- Recessed, Indoor
Tools
Downloads
Specification sheet
8246084015
pdf
(Opens in new tab)
Mounting instruction
Tripar Medico_User Manual
pdf
(Opens in new tab)
CE Declaration
Tripar LED Medico
pdf
(Opens in new tab)
Relux file (rolf)
5703821173506_Tripar_Medico_LED_600x600_White_2650lm_4000K_Ra_80_DALI
rolf
Eulumdat file (ldt)
5703821173506_Tripar Medico LED 600x600 White 2650lm 4000K Ra80 DALI
ldt
Dialux file (uld)
5703821173506_Tripar Medico LED 600x600 White 2650lm 4000K Ra80 DALI
uld
Electrical
- System wattage
- 21W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 13, B16: 20, C10: 21, C16: 34
Light technic
- Type of light source
- LED
- Luminous flux
- 2650lm
- Efficacy
- 126 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L80/B10>50,000

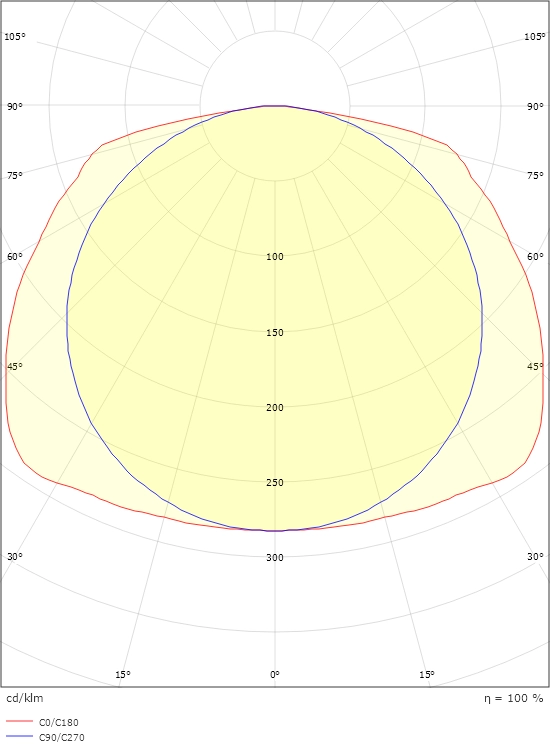

- Light distribution
- Direct
- Optic
- Perforated
Control/Dimming
- Type
- DALI-2
Protection
- Luminaire class
- Class I
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel
- Colour
- White (Pure white, 25% gloss)
- Optics
- Stainless steel
Mounting/Connection
- Mounting
- Recessed, Indoor
- Module
- 600x600 Clip-in
- Connection
- 5 pol Winsta
Dimensions
- Length (mm) L
- 599
- Width (mm) W
- 599
- Height (mm) H
- 110
- Weight (kg) gross/net
- 4.8 / 4.6
Packaging
- Packaging dimensions (mm)
- 635 x 625 x 130
