Velios Linear

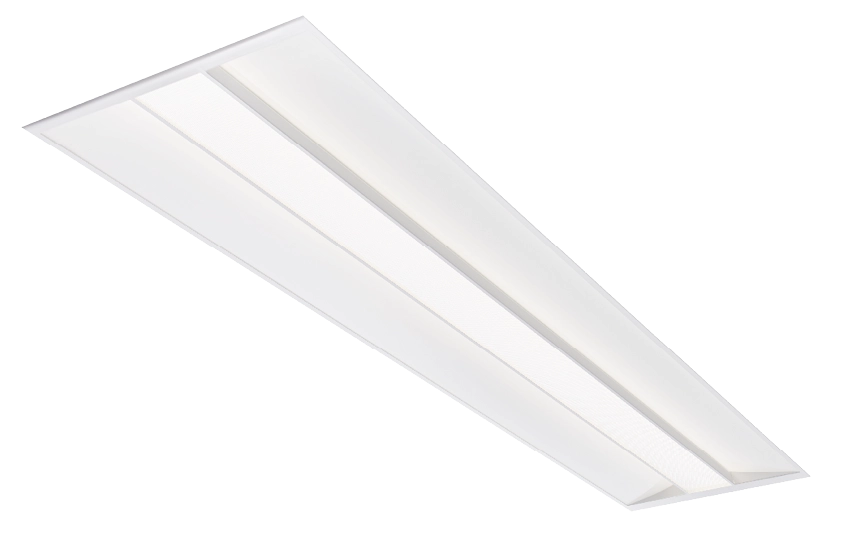

Velios LED Linear 300x1200 White 4420lm 4000K Ra>80 DALI-2

Article code
8246079318
EAN
5703821162326
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
130 lm/W
Lumen
4420lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L90/B10>
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • el
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246079318 Mounting instruction Velios LED Mounting Instruction CE Declaration Velios LED Linear Relux file (rolf) 5703821162326_Velios_LED_Linear_300x1200_White_4420lm_4000K_Ra_80_DALI Eulumdat file (ldt) 5703821162326_Velios LED Linear 300x1200 White 4420lm 4000K Ra80 DALI Dialux file (uld) 5703821162326_Velios LED Linear 300x1200 White 4420lm 4000K Ra80 DALI Revit file - Generic Velios LED - Generic Revit file - Ceiling Based Velios LED - Ceiling based

How to specify

Text copied to clipboard

Velios LED Linear 300x1200 White 4420lm 4000K Ra>80 DALI-2, Article code: 8246079318, EAN: 5703821162326, IP20, Electrical: System wattage: 34W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 13, B16: 24, C10: 21, C16: 38, Light technic: Type of light source: LED, Luminous flux: 4420lm, Efficacy: 130 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>50,000, Light distribution: Direct, Optic: Lens C, prismatic Conical, Control/Dimming: Type: DALI-2, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White smooth (Ral 9016 gloss 30), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Recessed, Indoor, Module: 300x1200 Exposed T-carrier 15/24mm, Connection: 5 pol Winsta / Terminal block, Dimensions: Length (mm) L: 1195, Width (mm) W: 295, Height (mm) H: 66, Ceiling void depth (mm): 66, Weight (kg) gross/net: 6.6 / 6.4, Packaging: Packaging dimensions (mm): 1250 x 310 x 100

Electrical

System wattage
34W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 13, B16: 24, C10: 21, C16: 38

Light technic

Type of light source
LED
Luminous flux
4420lm
Efficacy
130 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B10>50,000

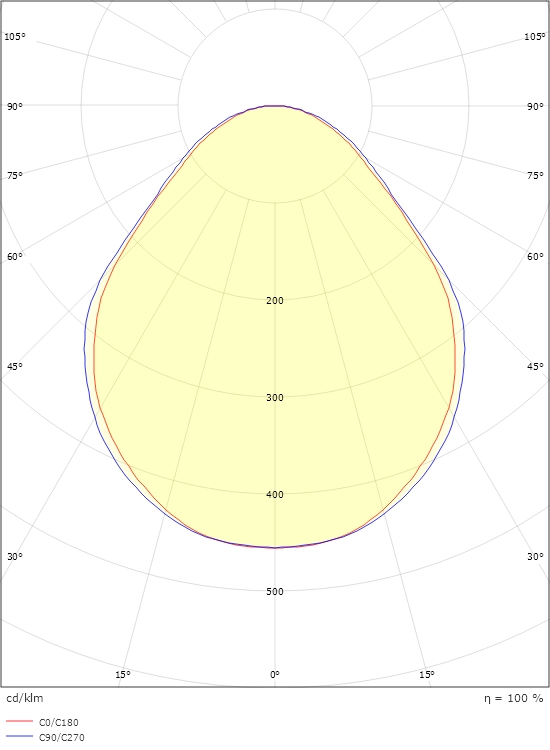

Light distribution
Direct
Optic
Lens C, prismatic Conical

Control/Dimming

Type
DALI-2

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White smooth (Ral 9016 gloss 30)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Recessed, Indoor
Module
300x1200 Exposed T-carrier 15/24mm
Connection
5 pol Winsta / Terminal block

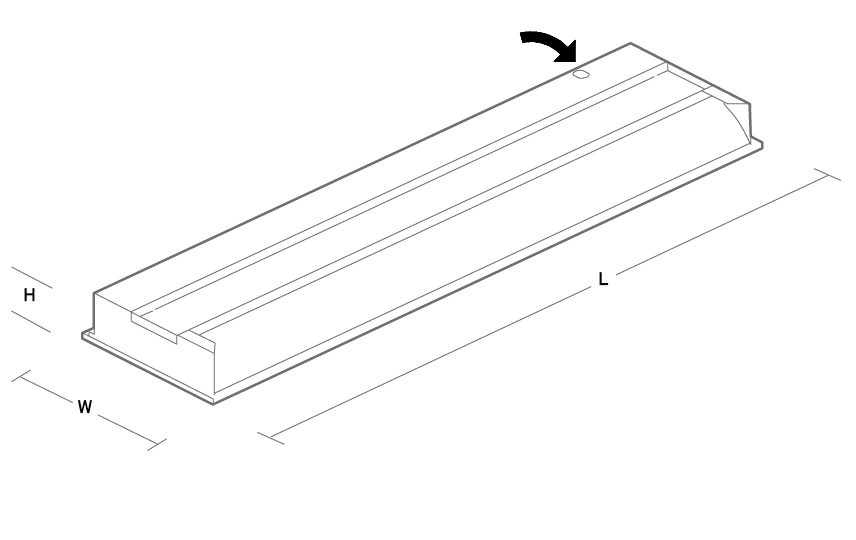

Dimensions

Length (mm) L
1195
Width (mm) W
295
Height (mm) H
66
Ceiling void depth (mm)
66
Weight (kg) gross/net
6.6 / 6.4

Packaging

Packaging dimensions (mm)
1250 x 310 x 100
