Circulus Maxi Pendant

Circulus Maxi Pendant White 3060lm 3000K Ra>80 DALI-2 / Push Dim

Article code
214025
EAN
7021982140259
Back to articlelist

Overview

Efficacy
102 lm/W
Lumen
3060lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B10>
Mounting
Suspended, Indoor
    5 years Warranty
  • indoor
  • el
  • dipswitch
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 214025 Mounting instruction Circulus Maxi Pendant DALI_User Manual CE Declaration Circulus Maxi Pendant Relux file (rolf) 7021982140259_Circulus_Maxi_Pendant_White_3060lm_3000K_Ra_80_DALI Eulumdat file (ldt) 7021982140259_Circulus Maxi Pendant White 3060lm 3000K Ra80 DALI-47973 Dialux file (uld) 7021982140259_Circulus Maxi Pendant White 3060lm 3000K Ra80 DALI Revit file - Generic Circulus Maxi Pendant - generic Revit file - Ceiling Based Circulus Maxi Pendant - ceiling based.0001 Revit file - Ceiling Based Circulus Maxi Pendant - ceiling based.0002 Revit file - Ceiling Based Circulus Maxi Pendant - ceiling based.0003 Revit file - Ceiling Based Circulus Maxi Pendant - ceiling based

How to specify

Text copied to clipboard

Circulus Maxi Pendant White 3060lm 3000K Ra>80 DALI-2 / Push Dim, Article code: 214025, EAN: 7021982140259, IP20, Electrical: System wattage: 30W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 31, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 3060lm, Efficacy: 102 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B10>100,000, Light distribution: Direct, Optic: Opal, Beam angle: 100°, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Steel, Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Suspended, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 55, Diameter (mm) D: 550, Weight (kg) gross/net: 6.5 / 5.519, Packaging: Packaging dimensions (mm): 580 x 570 x 83

Electrical

System wattage
30W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 31, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
3060lm
Efficacy
102 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B10>100,000

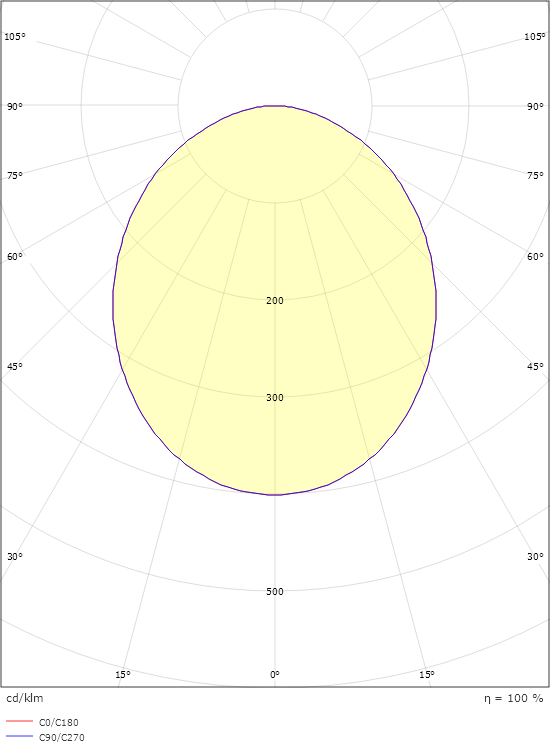

Light distribution
Direct
Optic
Opal
Beam angle
100°

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Steel
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Suspended, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
55
Diameter (mm) D
550
Weight (kg) gross/net
6.5 / 5.519

Packaging

Packaging dimensions (mm)
580 x 570 x 83
