Concido Pendant

Concido Pendant LED White 5410lm 3000K Ra>80 On/Off

Article code
8246087009
EAN
5703821169448
Replaces
8246079693
Back to articlelist

Overview

Efficacy
98 lm/W
Lumen
5410lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L70/B50>
Mounting
Suspended, Indoor
    5 years Warranty
  • indoor
  • el
  • ip20
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246087009 Mounting instruction Concido Pendel Mounting Instruction EPD NEPD-5172-4511_Concido-Pendant CE Declaration Concido Pendant LED Relux file (rolf) 5703821169448_Concido_Pendant_LED_White_5410lm_3000K_Ra_80_On_Off Eulumdat file (ldt) 5703821169448_Concido Pendant LED White 5410lm 3000K Ra80 OnOff Dialux file (uld) 5703821169448_Concido Pendant LED White 5410lm 3000K Ra80 OnOff Revit file - Ceiling Based Concido Pendant LED - Ceiling based

How to specify

Text copied to clipboard

Concido Pendant LED White 5410lm 3000K Ra>80 On/Off, Article code: 8246087009, EAN: 5703821169448, IP20, Electrical: System wattage: 55W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 42, B16: 67, C10: 68, C16: 108, Light technic: Type of light source: LED, Luminous flux: 5410lm, Efficacy: 98 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B50>50,000, Light distribution: Direct/Indirect 75/25%, Optic: Glass Opal, UGR: UGR<19, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: C/E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9010, 20% gloss), Optics: Aluminium / Glass, Mounting/Connection: Mounting: Suspended, Indoor, Cable: Cable 4x0,75mm² 5,0m white, Dimensions: Height (mm) H: 645, Diameter (mm) D: 292, Weight (kg) gross/net: 7.3 / 7.1, Packaging: Packaging dimensions (mm): 392 x 392 x 675

Electrical

System wattage
55W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 42, B16: 67, C10: 68, C16: 108

Light technic

Type of light source
LED
Luminous flux
5410lm
Efficacy
98 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B50>50,000

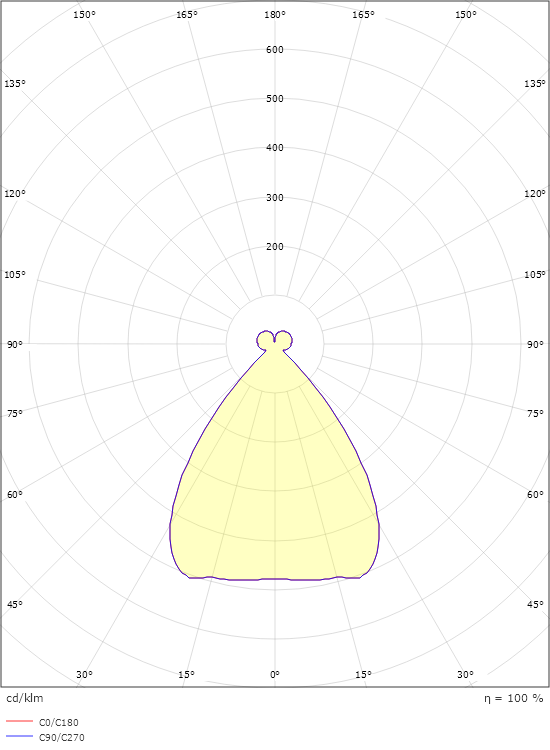

Light distribution
Direct/Indirect 75/25%
Optic
Glass Opal

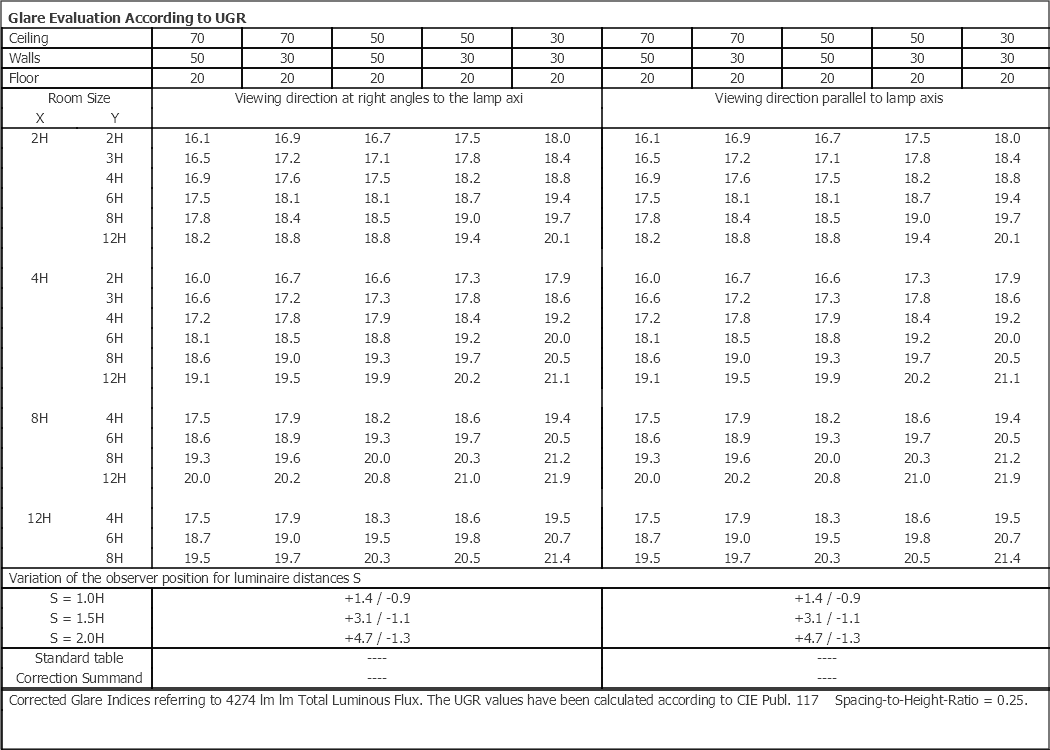

UGR
UGR<19

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
C/E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9010, 20% gloss)
Optics
Aluminium / Glass

Mounting/Connection

Mounting
Suspended, Indoor
Cable
Cable 4x0,75mm² 5,0m white

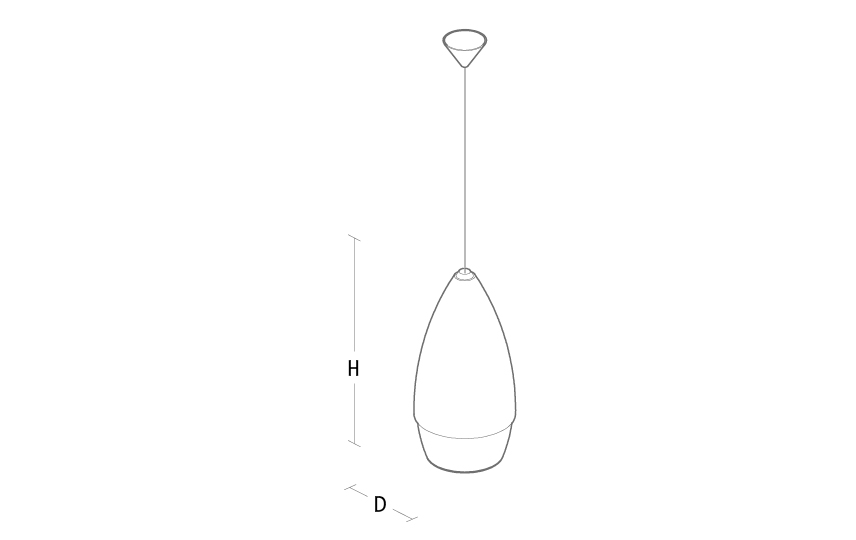

Dimensions

Height (mm) H
645
Diameter (mm) D
292
Weight (kg) gross/net
7.3 / 7.1

Packaging

Packaging dimensions (mm)
392 x 392 x 675
