Disc 480 D/I

Disc 480 White D/I 4160/4420lm 3000/4000K Ra>80 DALI-2 / Push Dim

SG code
606204
EAN
7021986062045
Back to articlelist

Overview

Efficacy
122 lm/W
Lumen
4160/4420lm
IP Class
IP20
Colour temperature
3000/4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • dipswitch
  • cctsw
  • ik10
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 606204 Mounting instruction 250212_Disc 480 Dali DI_User Manual EPD NEPD-12107-12083_Disc-480-D-I-Dali CE Declaration Disc 480 DI Relux file (rolf) 7021986062045_Disc_480_White_DI_4160lm_3000K_Ra80_DALI-2 Relux file (rolf) 7021986062045_Disc_480_White_DI_4420lm_4000K_Ra80_DALI-2 Eulumdat file (ldt) 7021986062045_Disc 480 White DI 4160lm 3000K Ra80 DALI-2 Eulumdat file (ldt) 7021986062045_Disc 480 White DI 4420lm 4000K Ra80 DALI-2 Dialux file (uld) 7021986062045_Disc 480 White DI 4160lm 3000K Ra80 DALI-2 Dialux file (uld) 7021986062045_Disc 480 White DI 4420lm 4000K Ra80 DALI-2 Revit file - Generic Disc 480 DI - generic Revit file - Face Based Disc 480 DI - face based

How to specify

Text copied to clipboard

Disc 480 White D/I 4160/4420lm 3000/4000K Ra>80 DALI-2 / Push Dim, Article code: 606204, EAN: 7021986062045, IP20, IK10, Electrical: System wattage: 34W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 4160/4420lm, Efficacy: 122 lm/W, Constant lumen output option: Yes, Colour temperature: 3000/4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, Beam angle: 85°, UGR: UGR<22, Visible flicker (PstLM): 0,02, Stroboscopic flicker (SVM): 0,01, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP20, Energy and approvals: Contains light source of energy class: D/D/C/C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium/plastic, Colour: White, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 62, Diameter (mm) D: 467, Weight (kg) gross/net: 3.6 / 3.188, Packaging: Packaging dimensions (mm): 490 x 485 x 70

Electrical

System wattage
34W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
4160/4420lm
Efficacy
122 lm/W
Constant lumen output option
Yes
Colour temperature
3000/4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000
Light distribution
Direct
Optic
Opalprism
Beam angle
85°

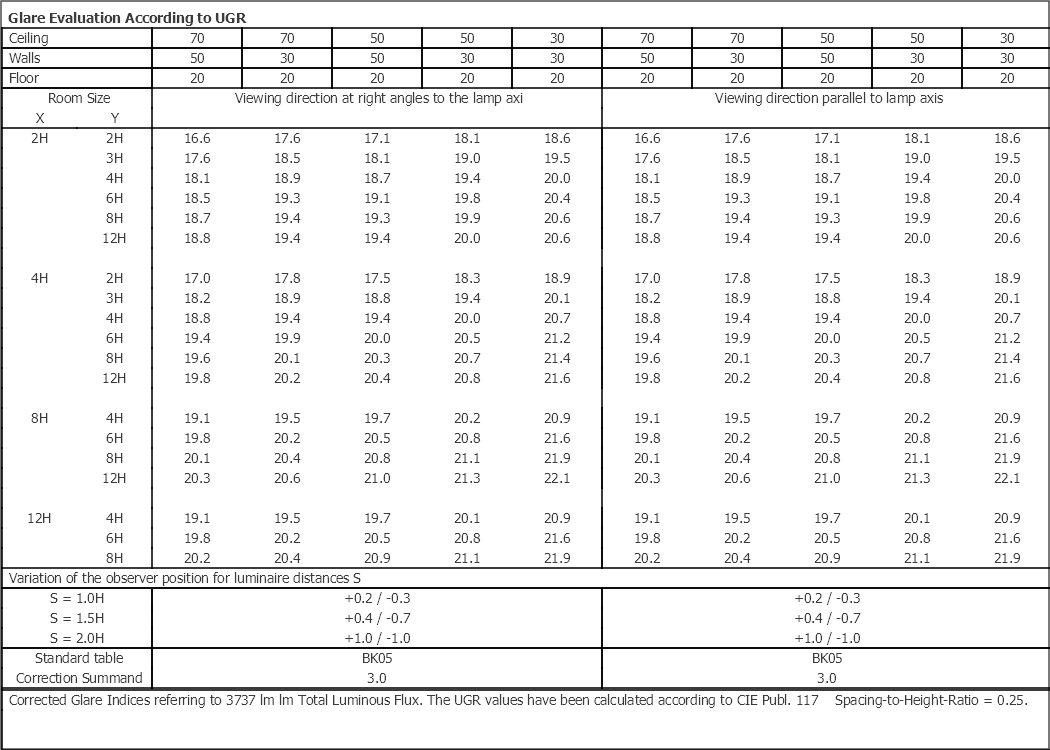

UGR
UGR<22
Visible flicker (PstLM)
0,02
Stroboscopic flicker (SVM)
0,01

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP20

Energy and approvals

Contains light source of energy class
D/D/C/C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium/plastic
Colour
White
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
62
Diameter (mm) D
467
Weight (kg) gross/net
3.6 / 3.188

Packaging

Packaging dimensions (mm)
490 x 485 x 70
