Ecoline D/I
EcoLine 1600 White D/I 5640lm 4000K Ra>80 DALI-2
- Article code
- 212807
- EAN
- 7021982128073
Overview
- Efficacy
- 161 lm/W
- Lumen
- 5640lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Suspended, Indoor

Electrical
- System wattage
- 35W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 13, B16: 20, C10: 21, C16: 34
- Leakage current (mA)
- 0,07
Light technic
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 5640lm
- Efficacy
- 161 lm/W
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L90/B10>100,000
- Lifetime
- L96>50,000

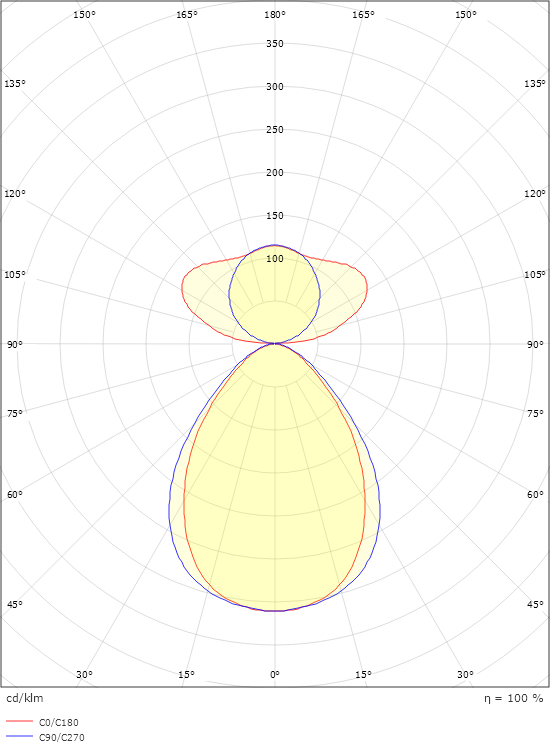

- Light distribution
- Direct/Indirect
- Optic
- Opalprism
- UGR
- UGR<16
- Visible flicker (PstLM)
- 1
- Stroboscopic flicker (SVM)
- 0,4
Control/Dimming
- Type
- DALI-2
Protection
- Luminaire class
- Class I
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- B
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel
- Optics
- Acrylic (PMMA)
Mounting/Connection
- Mounting
- Suspended, Indoor
- Module
- 1600
- Wire set
- 2x2m wire kit
- Cable
- Cable 5x0,75mm² 2,5m
- Connection
- Cable 5x0,75mm² 2,5m white
Dimensions
- Length (mm) L
- 1600
- Width (mm) W
- 166
- Height (mm) H
- 58
- Weight (kg) gross/net
- 6.5 / 5.7
Packaging
- Packaging dimensions (mm)
- 1620 x 180 x 72
