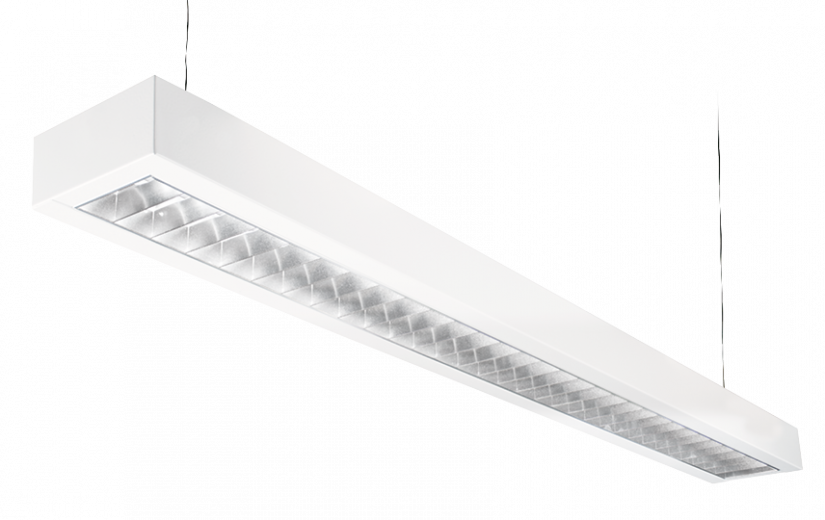

EcoLine Office

Luminaire suspended/surface-mounted directly in 3000 or 4000 Kelvin LED. Flat design, powder-coated white RAL9010 gloss 25. Double parabolic reflector and diffuser with option of dimmable solution (DALI/SwitchDim). Plug-and-play solution for quick installation. Adjustable wire suspension (2x2 m) ordered as accessory.

Article list

EcoLine Office

Indoor SDCM: 3 Class I IP20 Ra>80 L80/B10> 50,000 Screwless terminal block

Filters

Module

Colour temperature

System wattage

Lumen

Control gear

Mounting type

Filters

							Others	Tools
8246089560	1200	3000K	18W	2350lm	DALI-2	Suspended or surface	Direct, 131 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090119	1200	3000K	18W	2350lm	DALI-2	Suspended or surface	Direct, 131 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246089641	1200	3000K	28W	3680lm	DALI-2 / Push Dim	Suspended or surface	Direct, 131 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090135	1200	3000K	23W	3060lm	DALI-2 / Push Dim	Suspended or surface	Direct, 133 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090504	1200	3000K	30W	4350lm	DALI-2 / Push Dim	Suspended	Direct/Indirect 60/40%, 145 lm/W, L1200 x W142 x H81, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M13 w/2 brackets	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246089557	1200	3000K	18W	2350lm	On/Off	Suspended or surface	Direct, 131 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090494	1200	3000K	30W	4350lm	On/Off	Suspended	Direct/Indirect 60/40%, 145 lm/W, L1200 x W142 x H81, Cable 5x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M13 w/2 brackets	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090588	1500	3000K	34W	4920lm	DALI-2	Suspended	Direct/Indirect 65/35%, 145 lm/W, L1500 x W142 x H81, 2x2m wire kit w/loop M13 w/2 brackets	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090546	1500	3000K	35W	4510lm	DALI-2 / Push Dim	Suspended or surface	Direct, 129 lm/W, L1500 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246089638	1200	3000K	28W	3680lm	On/Off	Suspended or surface	Direct, 131 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090112	1200	3000K	23W	3060lm	On/Off	Suspended or surface	Direct, 133 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090533	1500	3000K	35W	4510lm	On/Off	Suspended or surface	Direct, 129 lm/W, L1500 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090575	1500	3000K	34W	4920lm	On/Off	Suspended	Direct/Indirect 65/35%, 145 lm/W, L1500 x W142 x H81, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M13 w/2 brackets	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246089586	1200	4000K	18W	2450lm	DALI-2	Suspended or surface	Direct, 136 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090562	1500	4000K	35W	4710lm	DALI-2 / Push Dim	Suspended or surface	Direct, 135 lm/W, L1500 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090601	1500	4000K	34W	5140lm	DALI-2 / Push Dim	Suspended	Direct/Indirect 65/35%, 151 lm/W, L1500 x W142 x H81, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M13 w/2 brackets	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246089573	1200	4000K	18W	2450lm	On/Off	Suspended or surface	Direct, 136 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246089654	1200	4000K	28W	3840lm	On/Off	Suspended or surface	Direct, 137 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090517	1200	4000K	30W	4540lm	On/Off	Suspended	Direct/Indirect 60/40%, 151 lm/W, L1200 x W142 x H81, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M13 w/2 brackets	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090559	1500	4000K	35W	4710lm	On/Off	Suspended or surface	Direct, 135 lm/W, L1500 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090591	1500	4000K	34W	5140lm	On/Off	Suspended	Direct/Indirect 65/35%, 151 lm/W, L1500 x W142 x H81, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M13 w/2 brackets	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246089667	1200	4000K	28W	3890lm	DALI-2 / Push Dim	Suspended or surface	Direct, 139 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

							Others	Tools
8246089560	1200	3000K	18W	2350lm	DALI-2	Suspended or surface	Direct, 131 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090119	1200	3000K	18W	2350lm	DALI-2	Suspended or surface	Direct, 131 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246089641	1200	3000K	28W	3680lm	DALI-2 / Push Dim	Suspended or surface	Direct, 131 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090135	1200	3000K	23W	3060lm	DALI-2 / Push Dim	Suspended or surface	Direct, 133 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090504	1200	3000K	30W	4350lm	DALI-2 / Push Dim	Suspended	Direct/Indirect 60/40%, 145 lm/W, L1200 x W142 x H81, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M13 w/2 brackets	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246089557	1200	3000K	18W	2350lm	On/Off	Suspended or surface	Direct, 131 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090494	1200	3000K	30W	4350lm	On/Off	Suspended	Direct/Indirect 60/40%, 145 lm/W, L1200 x W142 x H81, Cable 5x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M13 w/2 brackets	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090588	1500	3000K	34W	4920lm	DALI-2	Suspended	Direct/Indirect 65/35%, 145 lm/W, L1500 x W142 x H81, 2x2m wire kit w/loop M13 w/2 brackets	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090546	1500	3000K	35W	4510lm	DALI-2 / Push Dim	Suspended or surface	Direct, 129 lm/W, L1500 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246089638	1200	3000K	28W	3680lm	On/Off	Suspended or surface	Direct, 131 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090112	1200	3000K	23W	3060lm	On/Off	Suspended or surface	Direct, 133 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090533	1500	3000K	35W	4510lm	On/Off	Suspended or surface	Direct, 129 lm/W, L1500 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090575	1500	3000K	34W	4920lm	On/Off	Suspended	Direct/Indirect 65/35%, 145 lm/W, L1500 x W142 x H81, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M13 w/2 brackets	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246089586	1200	4000K	18W	2450lm	DALI-2	Suspended or surface	Direct, 136 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090562	1500	4000K	35W	4710lm	DALI-2 / Push Dim	Suspended or surface	Direct, 135 lm/W, L1500 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090601	1500	4000K	34W	5140lm	DALI-2 / Push Dim	Suspended	Direct/Indirect 65/35%, 151 lm/W, L1500 x W142 x H81, Cable 5x0,75mm² 2,5m white, 2x2m wire kit w/loop M13 w/2 brackets	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246089573	1200	4000K	18W	2450lm	On/Off	Suspended or surface	Direct, 136 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246089654	1200	4000K	28W	3840lm	On/Off	Suspended or surface	Direct, 137 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090517	1200	4000K	30W	4540lm	On/Off	Suspended	Direct/Indirect 60/40%, 151 lm/W, L1200 x W142 x H81, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M13 w/2 brackets	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090559	1500	4000K	35W	4710lm	On/Off	Suspended or surface	Direct, 135 lm/W, L1500 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246090591	1500	4000K	34W	5140lm	On/Off	Suspended	Direct/Indirect 65/35%, 151 lm/W, L1500 x W142 x H81, Cable 3x0,75mm² 2,5m w/ Schuko white, 2x2m wire kit w/loop M13 w/2 brackets	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
8246089667	1200	4000K	28W	3890lm	DALI-2 / Push Dim	Suspended or surface	Direct, 139 lm/W, L1200 x W142 x H63	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
212255	T-profil White Suspension Rail 600mm	L596 x W35 x H17	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212048	EcoLine Office accessories 1200 Asymmetric bracket with wirekit	L1050 x W135 x H40	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212049	EcoLine Office accessories Wire kit	L2000	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
6049000874	EcoLine Office accessories Mounting kit for suspension rail		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
8249042724	Ceiling box 2x2m Wire kit		Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.
