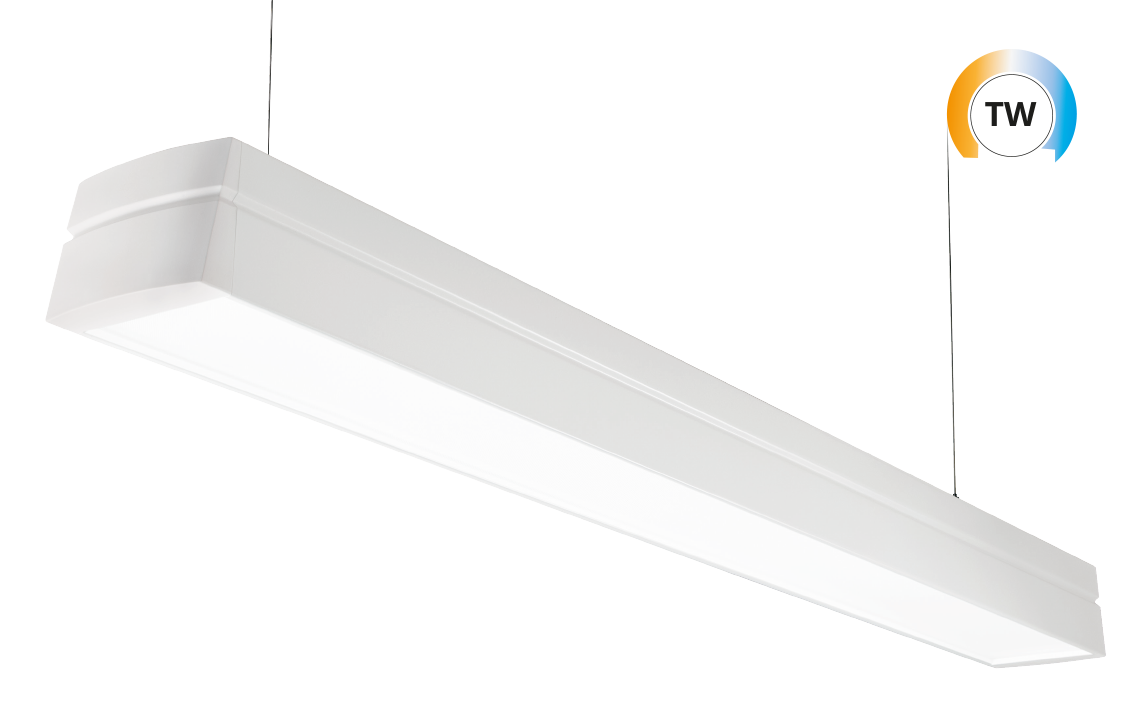

Facet II TW
Facet II TW 1700 6640lm 2700-6500K Ra>80 FreeBlue
- Article code
- 8246092298
- EAN
- 5703821173582
=
This article is produced by order, with an expected delivery time of 3-4 weeks
Overview
- Efficacy
- 116 lm/W
- Lumen
- 6640lm
- IP Class
- IP20
- Colour temperature
- 2700-6500K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L90/B10>
- Mounting
- Suspended, Indoor
Electrical
- System wattage
- 57W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 5, B16: 8, C10: 9, C16: 14
Light technic
- Type of light source
- LED
- Luminous flux
- 6640lm
- Efficacy
- 116 lm/W
- Colour temperature
- 2700-6500K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L90/B10>50,000

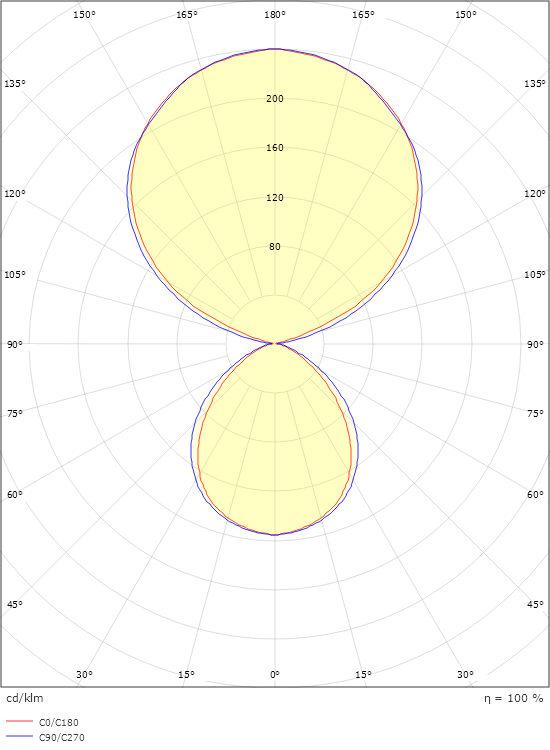

- Light distribution
- Direct/Indirect 35/65%
- Optic
- Lens C, prismatic Conical
- UGR
- UGR<16
- Photobiological safety
- RG 1
Control/Dimming
- Type
- FreeBlue
Protection
- Luminaire class
- Class I
- IP Class
- IP20
Energy and approvals
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Sheet steel
- Colour
- White (RAL 9010, 20% gloss)
- Optics
- Acrylic (PMMA)
Mounting/Connection
- Mounting
- Suspended, Indoor
- Module
- 1700
- Wire set
- 2x2m wire kit w/loop M4
- Cable
- Cable 3x0,75mm² 2,5m w/ Schuko white

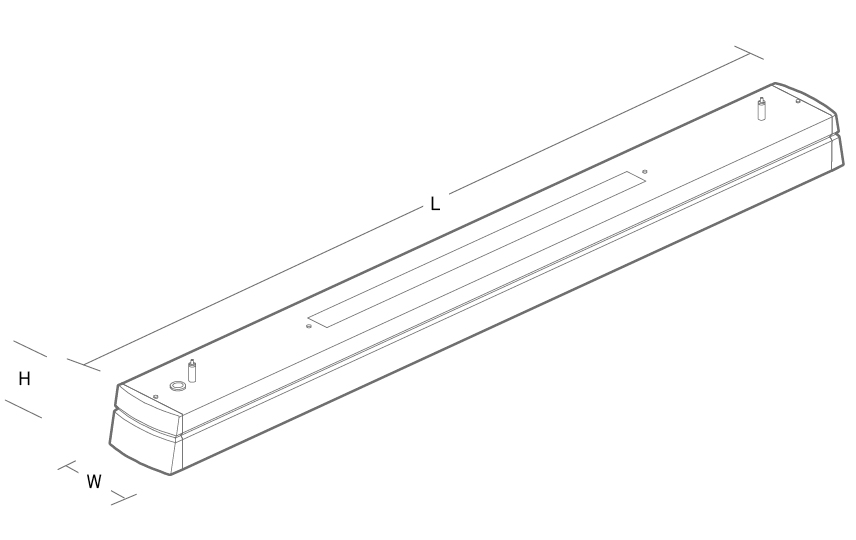

Dimensions
- Length (mm) L
- 1756
- Width (mm) W
- 112
- Height (mm) H
- 80
- Weight (kg) gross/net
- 7.9 / 7.7
Packaging
- Packaging dimensions (mm)
- 1790 x 114 x 90
