Facet II TW

Facet II TW 1200 White 4674lm (@6500K) 2700-6500K Ra>80 TW LEDDim

Article code
8246094542
EAN
5703821177689
Back to articlelist

Overview

Efficacy
123 lm/W
Lumen
4674lm (@6500K)
IP Class
IP20
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B10>
Mounting
Suspended, Indoor
    5 years Warranty
  • indoor
  • ip20
  • klasse_1
  • tw
  • ce

Tools

Downloads

Specification sheet 8246094542 Mounting instruction 210416_Facet II_User Manual EPD NEPD-12492-12583_Facet-II-TW-1200-D-I CE Declaration Facet II TW Relux file (rolf) 5703821177689_Facet_II_TW_1200_White_4420lm_2700-6500K_Ra_80_Trailing_edge_dimming_Tunable_White_LEDDim Eulumdat file (ldt) 5703821177689_Facet II TW 1200 White 38W 2700-6500K Ra80 LEDDim-45796 Dialux file (uld) 5703821177689_Facet II TW 1200 White 38W 2700-6500K Ra80 LEDDim Revit file - Generic Facet II 1200 TW - Generic Revit file - Ceiling Based Facet II 1200 TW - ceiling based

How to specify

Text copied to clipboard

Facet II TW 1200 White 4674lm (@6500K) 2700-6500K Ra>80 TW LEDDim, Article code: 8246094542, EAN: 5703821177689, IP20, Electrical: System wattage: 38W, Voltage: 220-240V, Light technic: Type of light source: LED, Luminous flux: 4674lm (@6500K), Efficacy: 123 lm/W, Colour temperature: 2700-6500K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>100,000, Lifetime: L94>50,000, Light distribution: Direct/Indirect 65/35%, Optic: Lens C, prismatic Conical, Photobiological safety: RG 1, Control/Dimming: Type: TW LEDDim, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Sheet steel, Colour: White (RAL 9010, 20% gloss), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Suspended, Indoor, Module: 1200, Wire set: 2x2m wire kit, Cable: Cable 3x0,75mm² 2,5m w/ Schuko white, Dimensions: Length (mm) L: 1196, Width (mm) W: 112, Height (mm) H: 80, Weight (kg) gross/net: 5.3 / 5.1, Packaging: Packaging dimensions (mm): 1245 x 113 x 98

Electrical

System wattage
38W
Voltage
220-240V

Light technic

Type of light source
LED
Luminous flux
4674lm (@6500K)
Efficacy
123 lm/W
Colour temperature
2700-6500K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>100,000
Lifetime
L94>50,000

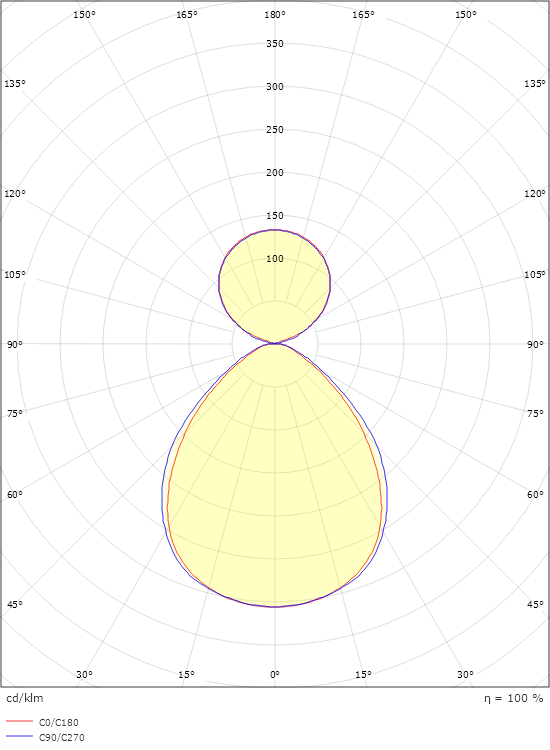

Light distribution
Direct/Indirect 65/35%
Optic
Lens C, prismatic Conical
Photobiological safety
RG 1

Control/Dimming

Type
TW LEDDim

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Sheet steel
Colour
White (RAL 9010, 20% gloss)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Suspended, Indoor
Module
1200
Wire set
2x2m wire kit
Cable
Cable 3x0,75mm² 2,5m w/ Schuko white

Dimensions

Length (mm) L
1196
Width (mm) W
112
Height (mm) H
80
Weight (kg) gross/net
5.3 / 5.1

Packaging

Packaging dimensions (mm)
1245 x 113 x 98
