Frosta 330

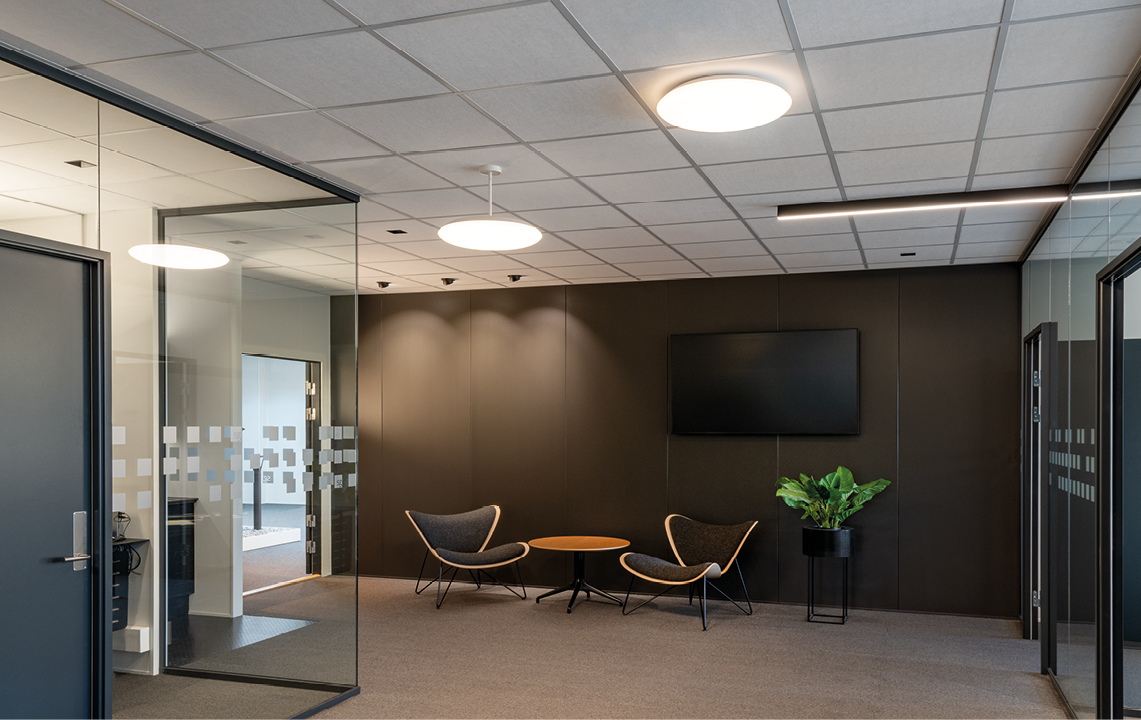

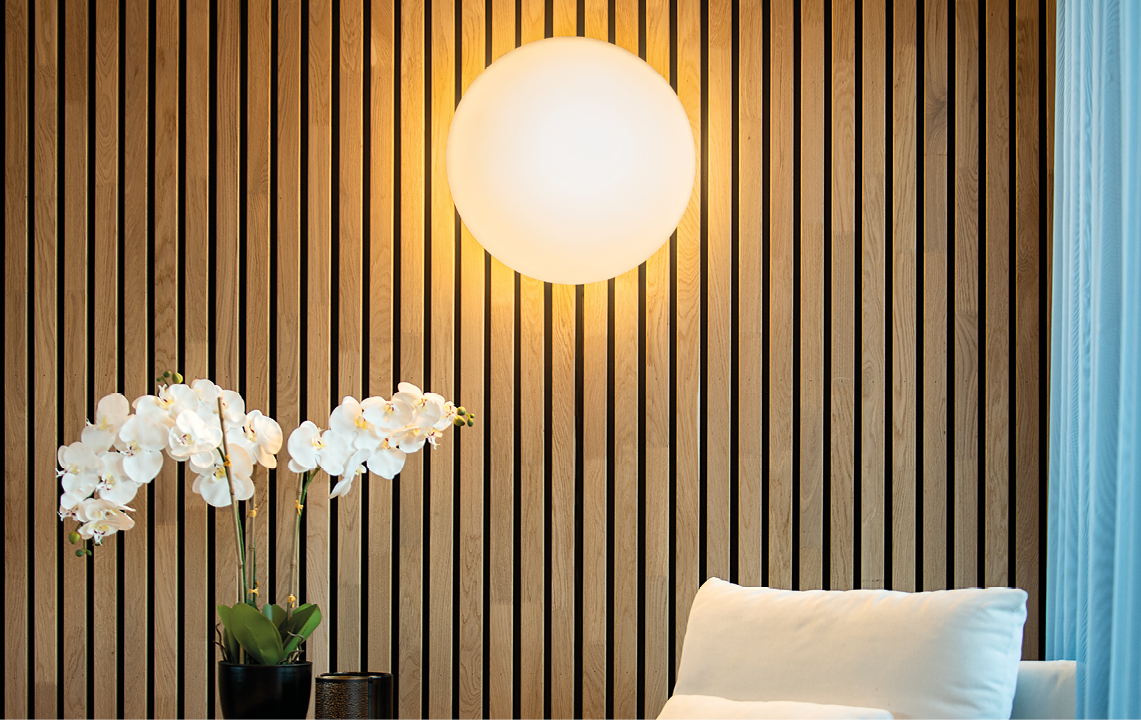

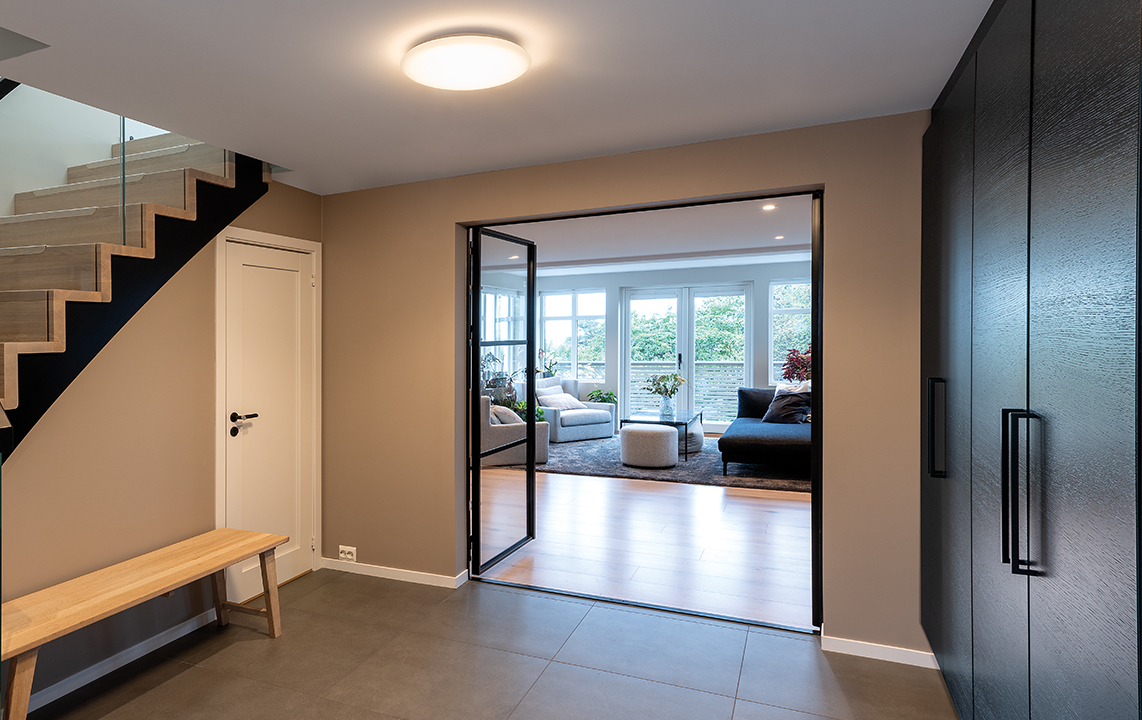

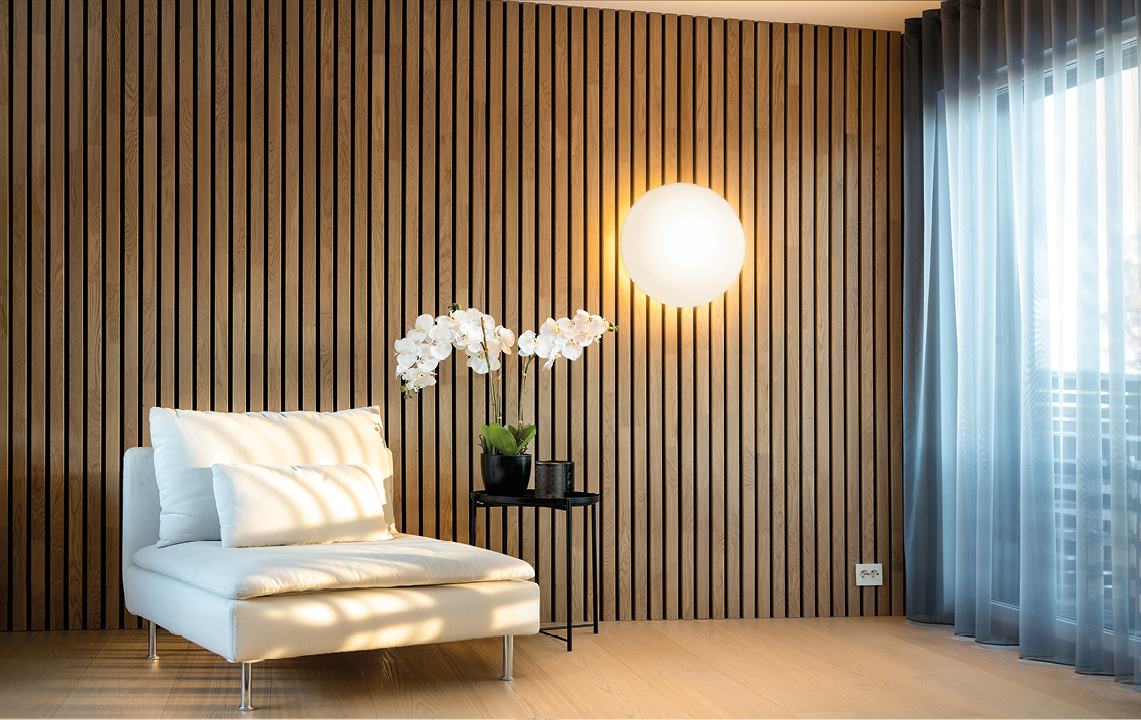

Frosta 330 is an elegantly designed decorative luminaire for ceilings and walls. It is suitable for homes as well as hotels, restaurants, etc. The diffuser provides a perfectly even light distribution with an aura of light in the ceiling. Easy installation with holes to fit all know ceiling boxes. For concealed or visible cabling. Dimmable with phasecut and DALI / push. Light levels can also be adjusted with dip switches on the driver. Can be made with SensorDim on request. A pendant kit is sold separately, and fits both the phasecut and DALI / push version.

Article list

Frosta 330

Indoor Direct Surface SDCM: 3 Class II IK04 IP20 Ra>80 Beam angle: 125° L80/B10> 100,000

Filters

Colour temperature

Lumen

Control gear

					Others	Tools
211733	2700K	17W	2120lm	DALI-2	125 lm/W, Ø330 x H77, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211736	2700K	17W	2120lm	Sensor Dim	125 lm/W, Ø330 x H77, Sensor Dim, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211730	2700K	17W	2120lm	Trailing edge	125 lm/W, Ø330 x H77, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211734	3000K	17W	2230lm	DALI-2	131 lm/W, Ø330 x H77, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211737	3000K	17W	2230lm	Sensor Dim	131 lm/W, Ø330 x H77, Sensor Dim, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211731	3000K	17W	2230lm	Trailing edge	131 lm/W, Ø330 x H77, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211735	4000K	17W	2370lm	DALI-2	139 lm/W, Ø330 x H77, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211738	4000K	17W	2370lm	Sensor Dim	139 lm/W, Ø330 x H77, Sensor Dim, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211732	4000K	17W	2370lm	Trailing edge	139 lm/W, Ø330 x H77, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

					Others	Tools
211733	2700K	17W	2120lm	DALI-2	125 lm/W, Ø330 x H77, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211736	2700K	17W	2120lm	Sensor Dim	125 lm/W, Ø330 x H77, Sensor Dim, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211730	2700K	17W	2120lm	Trailing edge	125 lm/W, Ø330 x H77, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211734	3000K	17W	2230lm	DALI-2	131 lm/W, Ø330 x H77, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211737	3000K	17W	2230lm	Sensor Dim	131 lm/W, Ø330 x H77, Sensor Dim, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211731	3000K	17W	2230lm	Trailing edge	131 lm/W, Ø330 x H77, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211735	4000K	17W	2370lm	DALI-2	139 lm/W, Ø330 x H77, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211738	4000K	17W	2370lm	Sensor Dim	139 lm/W, Ø330 x H77, Sensor Dim, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
211732	4000K	17W	2370lm	Trailing edge	139 lm/W, Ø330 x H77, Screwless terminal block	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

This article is produced by order, with an expected delivery time of 3-4 weeks

Sorry, we couldn’t find what you are looking for.

Accessories

Image	Article code	Description	Dimensions	Tools
	606095	Disc/Frosta Black Pendant Adapter	L5000 x W102 x H22	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
	606094	Disc/Frosta White Pendant Adapter	L5000 x W102 x H22	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
