Frosta 480

Frosta 480 White 3860lm 3000K Ra>80 DALI-2 / Push Dim

Article code
211707
EAN
7021982117077
Back to articlelist

Overview

Efficacy
148 lm/W
Lumen
3860lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B10>
Mounting
Surface, Indoor
  • indoor
  • el
  • dipswitch
  • ik08
  • ip20
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 211707 Revit file - Generic Frosta 480 - generic Revit file - Face Based Frosta 480 - face based

See more

Mounting instruction Frosta Dali_User Manual Eulumdat file (ldt) 7021982117077_Frosta 480 White 3860lm 3000K Ra80 DALI-2 Push Dim Dialux file (uld) 7021982117077_Frosta 480 White 3860lm 3000K Ra80 DALI-2 Push Dim Relux file (rolf) 7021982117077_Frosta_480_White_3860lm_3000K_Ra_80_DALI-2___Push_Dim EPD Frosta-480-Dali CE Declaration Frosta 480

How to specify

Text copied to clipboard

Frosta 480 White 3860lm 3000K Ra>80 DALI-2 / Push Dim, Article code: 211707, EAN: 7021982117077, IP20, IK08, Electrical: System wattage: 26W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 31, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 3860lm, Efficacy: 148 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B10>100,000, Lifetime: L90>60,000, Light distribution: Direct/Indirect 92/8%, Optic: Acrylic diffuser, Beam angle: 117°, Photobiological safety: RG 0, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class II, IK Class: IK08, IP Class: IP20, Energy and approvals: Contains light source of energy class: B, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Steel, Colour: White (RAL 9003), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 90, Diameter (mm) D: 480, Weight (kg) gross/net: 4 / 2.65, Packaging: Packaging dimensions (mm): 515 x 500 x 140

Electrical

System wattage
26W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 31, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
3860lm
Efficacy
148 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B10>100,000
Lifetime
L90>60,000

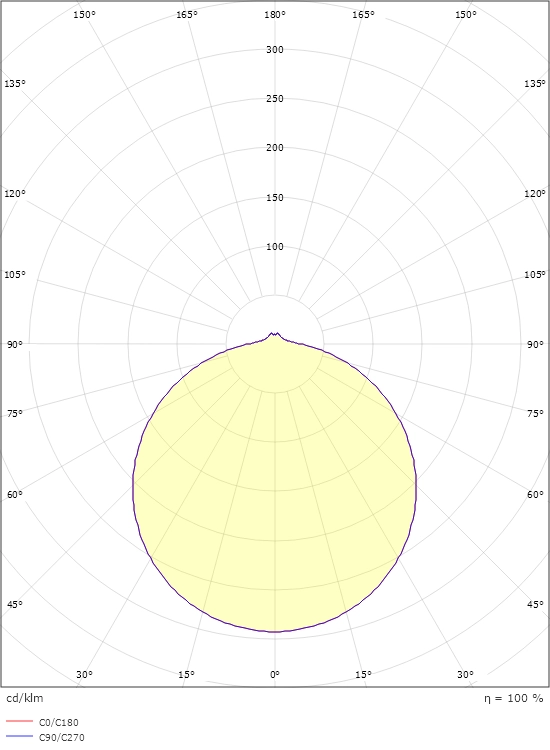

Light distribution
Direct/Indirect 92/8%
Optic
Acrylic diffuser
Beam angle
117°
Photobiological safety
RG 0

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class II
IK Class
IK08
IP Class
IP20

Energy and approvals

Contains light source of energy class
B
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Steel
Colour
White (RAL 9003)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
90
Diameter (mm) D
480
Weight (kg) gross/net
4 / 2.65

Packaging

Packaging dimensions (mm)
515 x 500 x 140
