Sense 800 Pendant

Sense 800 Pendant Black 7980lm 4000K Ra>80 DALI-2 / Push Dim

Article code
212197
EAN
7021982121975
Back to articlelist

Overview

Efficacy
129 lm/W
Lumen
7980lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Suspended, Indoor
    5 years Warranty
  • indoor
  • el
  • dipswitch
  • ip20
  • klasse_1
  • ce
  • enec

Tools

Downloads

Specification sheet 212197 Eulumdat file (ldt) 7021982121975_Sense 800 Pendant Black 7980lm 4000K Ra80 DALI Dialux file (uld) 7021982121975_Sense 800 Pendant Black 7980lm 4000K Ra80 DALI

See more

Relux file (rolf) 7021982121975_Sense_800_Pendant_Black_7980lm_4000K_Ra_80_DALI EPD NEPD-7147-6541_Sense-800-Pendant-Dali Revit file - Generic Sense 800 Pendant - Generic Revit file - Ceiling Based Sense Pendant 800 - ceiling based Mounting instruction Sense 800 Pendant_User Manuals CE Declaration Sense 800 Pendant ENEC Certificate Sense 800 Pendant

How to specify

Text copied to clipboard

Sense 800 Pendant Black 7980lm 4000K Ra>80 DALI-2 / Push Dim, Article code: 212197, EAN: 7021982121975, IP20, Electrical: System wattage: 62W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 18, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 7980lm, Efficacy: 129 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Direct/Indirect 60/40%, Optic: Opalprism, Photobiological safety: RG 0, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class I, IP Class: IP20, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Suspended, Indoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 18, Diameter (mm) D: 795, Weight (kg) gross/net: 6.85 / 5.5, Packaging: Packaging dimensions (mm): 1085 x 865 x 85

Electrical

System wattage
62W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 18, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
7980lm
Efficacy
129 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000

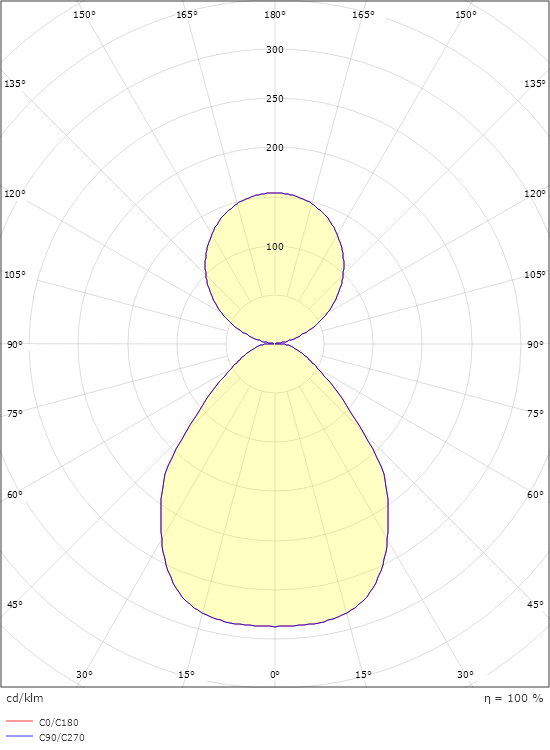

Light distribution
Direct/Indirect 60/40%
Optic
Opalprism
Photobiological safety
RG 0

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class I
IP Class
IP20

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Suspended, Indoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
18
Diameter (mm) D
795
Weight (kg) gross/net
6.85 / 5.5

Packaging

Packaging dimensions (mm)
1085 x 865 x 85
