Sense Surface

Sense Surface 300x1200 White 3790lm 3000K Ra>80 DALI-2 / Push Dim

Article code
212361
EAN
7021982123610
Back to articlelist

Overview

Efficacy
131 lm/W
Lumen
3790lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • dipswitch
  • flickerfree
  • ik10
  • ip20
  • klasse_2
  • ce
  • enec

Tools

Downloads

Specification sheet 212361 Mounting instruction Sense Surface Dali_User Manual EPD NEPD-5587-4886_Sense-Surface-300x1200-Dali CE Declaration Sense Surface Relux file (rolf) 7021982123610_Sense_Surface_300x1200_White_3790lm_3000K_Ra_80_DALI___Push_Dim Eulumdat file (ldt) 7021982123610_Sense Surface 300x1200 White 3790lm 3000K Ra80 DALI Push Dim Dialux file (uld) 7021982123610_Sense Surface 300x1200 White 3790lm 3000K Ra80 DALI Push Dim Revit file - Generic Sense Surface 300x1200 - generic Revit file - Ceiling Based Sense Surface 300x1200 - ceiling based ENEC Certificate Sense Surface

How to specify

Text copied to clipboard

Sense Surface 300x1200 White 3790lm 3000K Ra>80 DALI-2 / Push Dim, Article code: 212361, EAN: 7021982123610, IP20, IK10, Electrical: System wattage: 29W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 31, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 3790lm, Efficacy: 131 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, UGR: UGR<19, Photobiological safety: RG 0, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Module: 300x1200, Connection: Screwless terminal block, Dimensions: Length (mm) L: 1202, Width (mm) W: 302, Height (mm) H: 45, Weight (kg) gross/net: 7.66 / 6.785, Packaging: Packaging dimensions (mm): 1225 x 337 x 70

Electrical

System wattage
29W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 31, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
3790lm
Efficacy
131 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

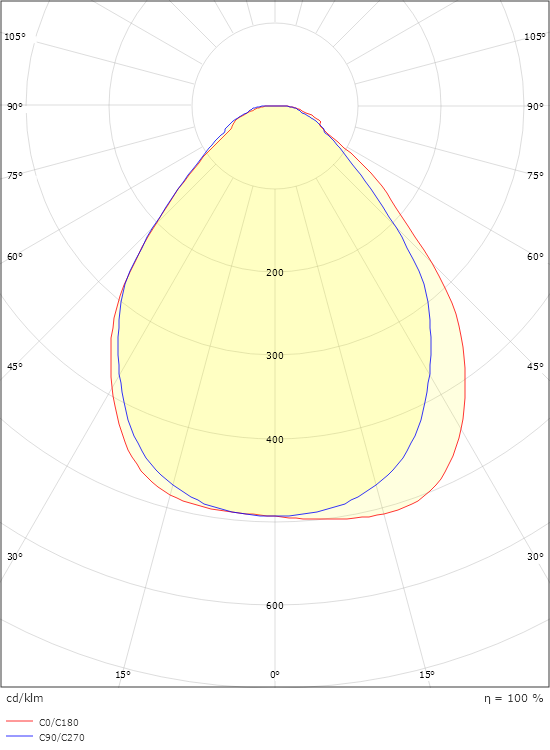

Light distribution
Direct
Optic
Opalprism
UGR
UGR<19
Photobiological safety
RG 0

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Module
300x1200
Connection
Screwless terminal block

Dimensions

Length (mm) L
1202
Width (mm) W
302
Height (mm) H
45
Weight (kg) gross/net
7.66 / 6.785

Packaging

Packaging dimensions (mm)
1225 x 337 x 70
