Sense Surface

Sense Surface 300x1200 White 3980lm 4000K Ra>80 Trailing edge

Article code
212367
EAN
7021982123672
Back to articlelist

Overview

Efficacy
137 lm/W
Lumen
3980lm
IP Class
IP20
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • dipswitch
  • flickerfree
  • ik10
  • ip20
  • klasse_2
  • ce
  • enec

Tools

Downloads

Specification sheet 212367 Mounting instruction Sense Surface_User Manual EPD NEPD-9745-9687_Sense-Surface-300x1200 CE Declaration Sense Surface Relux file (rolf) 7021982123672_Sense_Surface_300x1200_White_3980lm_4000K_Ra_80_Trailing_edge_dimming Eulumdat file (ldt) 7021982123672_Sense Surface 300x1200 White 3980lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021982123672_Sense Surface 300x1200 White 3980lm 4000K Ra80 Trailing edge dimming Revit file - Generic Sense Surface 300x1200 - generic Revit file - Ceiling Based Sense Surface 300x1200 - ceiling based ENEC Certificate Sense Surface

How to specify

Text copied to clipboard

Sense Surface 300x1200 White 3980lm 4000K Ra>80 Trailing edge, Article code: 212367, EAN: 7021982123672, IP20, IK10, Electrical: System wattage: 29W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 3980lm, Efficacy: 137 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, UGR: UGR<19, Visible flicker (PstLM): 0.08, Stroboscopic flicker (SVM): 0.08, Photobiological safety: RG 0, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Module: 300x1200, Connection: Screwless terminal block, Dimensions: Length (mm) L: 1202, Width (mm) W: 302, Height (mm) H: 45, Weight (kg) gross/net: 7.66 / 6.785, Packaging: Packaging dimensions (mm): 1225 x 337 x 70

Electrical

System wattage
29W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
3980lm
Efficacy
137 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

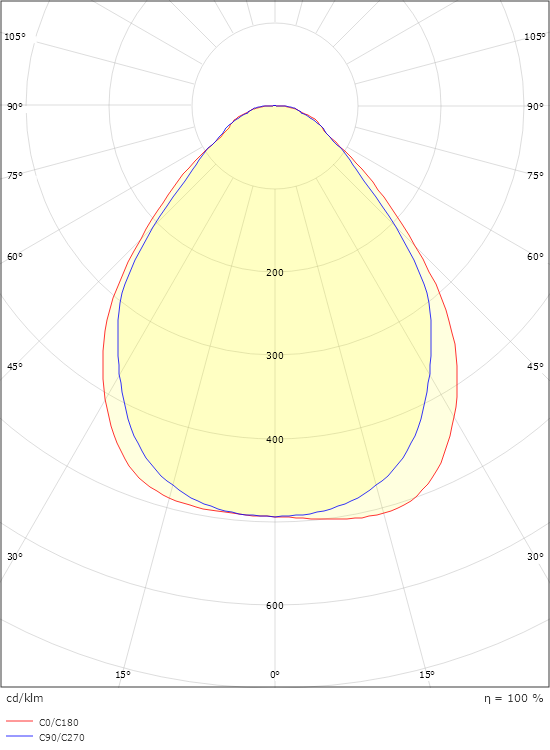

Light distribution
Direct
Optic
Opalprism
UGR
UGR<19
Visible flicker (PstLM)
0.08
Stroboscopic flicker (SVM)
0.08
Photobiological safety
RG 0

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Module
300x1200
Connection
Screwless terminal block

Dimensions

Length (mm) L
1202
Width (mm) W
302
Height (mm) H
45
Weight (kg) gross/net
7.66 / 6.785

Packaging

Packaging dimensions (mm)
1225 x 337 x 70
