Sense Surface

Sense Surface 600x600 White 3640lm 3000K Ra>80 DALI-2 / Push Dim

Article code
212331
EAN
7021982123313
Back to articlelist

Overview

Efficacy
130 lm/W
Lumen
3640lm
IP Class
IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • el
  • dipswitch
  • flickerfree
  • ik10
  • ip20
  • klasse_2
  • ce
  • enec

Tools

Downloads

Specification sheet 212331 Mounting instruction Sense Surface Dali_User Manual EPD NEPD-5313-4620_Sense-Surface-600x600-3000K-Dali CE Declaration Sense Surface Relux file (rolf) 7021982123313_Sense_Surface_600x600_White_3640lm_3000K_Ra_80_DALI_Push_Dim Eulumdat file (ldt) 7021982123313_Sense Surface 600x600 White 3640lm 3000K Ra80 DALI Dialux file (uld) 7021982123313_Sense Surface 600x600 White 3640lm 3000K Ra80 DALI Revit file - Generic Sense Surface 600x600 - generic Revit file - Ceiling Based Sense surface 600x600 - ceiling based ENEC Certificate Sense Surface

How to specify

Text copied to clipboard

Sense Surface 600x600 White 3640lm 3000K Ra>80 DALI-2 / Push Dim, Article code: 212331, EAN: 7021982123313, IP20, IK10, Electrical: System wattage: 28W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 31, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Luminous flux: 3640lm, Efficacy: 130 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Lifetime: L90>50,000, Light distribution: Direct, Optic: Opalprism, UGR: UGR<19, Photobiological safety: RG 0, Control/Dimming: Type: DALI-2 / Push Dim, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP20, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Indoor, Module: 600x600, Connection: Screwless terminal block, Dimensions: Length (mm) L: 597, Width (mm) W: 597, Height (mm) H: 45, Weight (kg) gross/net: 6.8 / 6.265, Packaging: Packaging dimensions (mm): 625 x 625 x 65

Electrical

System wattage
28W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 31, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Luminous flux
3640lm
Efficacy
130 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000
Lifetime
L90>50,000

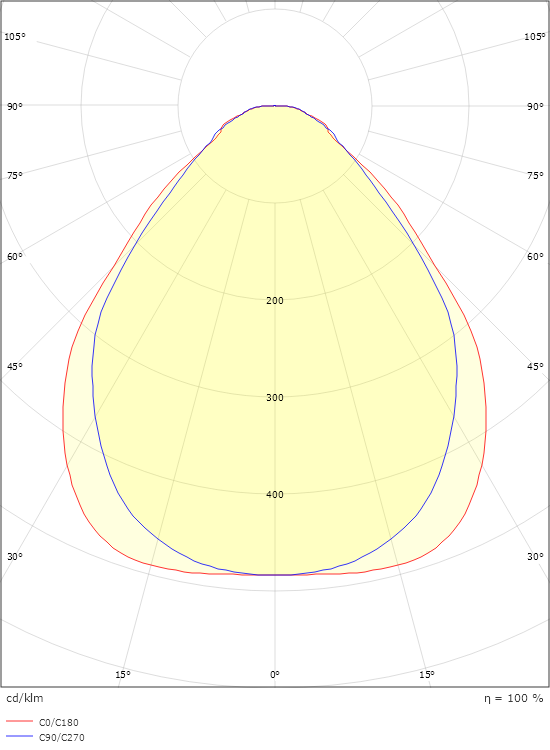

Light distribution
Direct
Optic
Opalprism
UGR
UGR<19
Photobiological safety
RG 0

Control/Dimming

Type
DALI-2 / Push Dim

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP20

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Indoor
Module
600x600
Connection
Screwless terminal block

Dimensions

Length (mm) L
597
Width (mm) W
597
Height (mm) H
45
Weight (kg) gross/net
6.8 / 6.265

Packaging

Packaging dimensions (mm)
625 x 625 x 65
